This full motion TV mount is for 10" to 25" screen size and it has 75 x 75mm and 100 x 100mm TV mounting hole pitch.

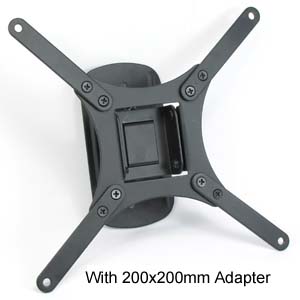

You can mount TV up to 37" screen size by adding 200mm TV mounting adapter (502833).
* For 10 to 25" screen size LCD flat monitor
Note: Supported screen size is provided as a reference only. Please check bracket dimensions above, and make sure overall braket size does not exceed TV.
* Tilt angle: 0 ~ 12 degree down
* Max Load Capacity: 44lbs (20kg)
* Universal mounting pattern
* VESA hole pitch : 75 x 75mm (3x3") and 100 x 100mm ((4x4")
* TV to wall: 60mm (2.36") to 315mm (12.4")
* Design and construction: Solid toughened steel construction
* Durable scratch resistant finish in black
* Mounting hardware included
* 200mm adapter not included
* Package weight:2.75lbs
* Package size: 7.75 (L) x 7.75 (W) x 2.75" (H)
* Master cartonb qty: 5 units
** 1 inch = 25.4mm, 1lbs = 0.454Kg **
