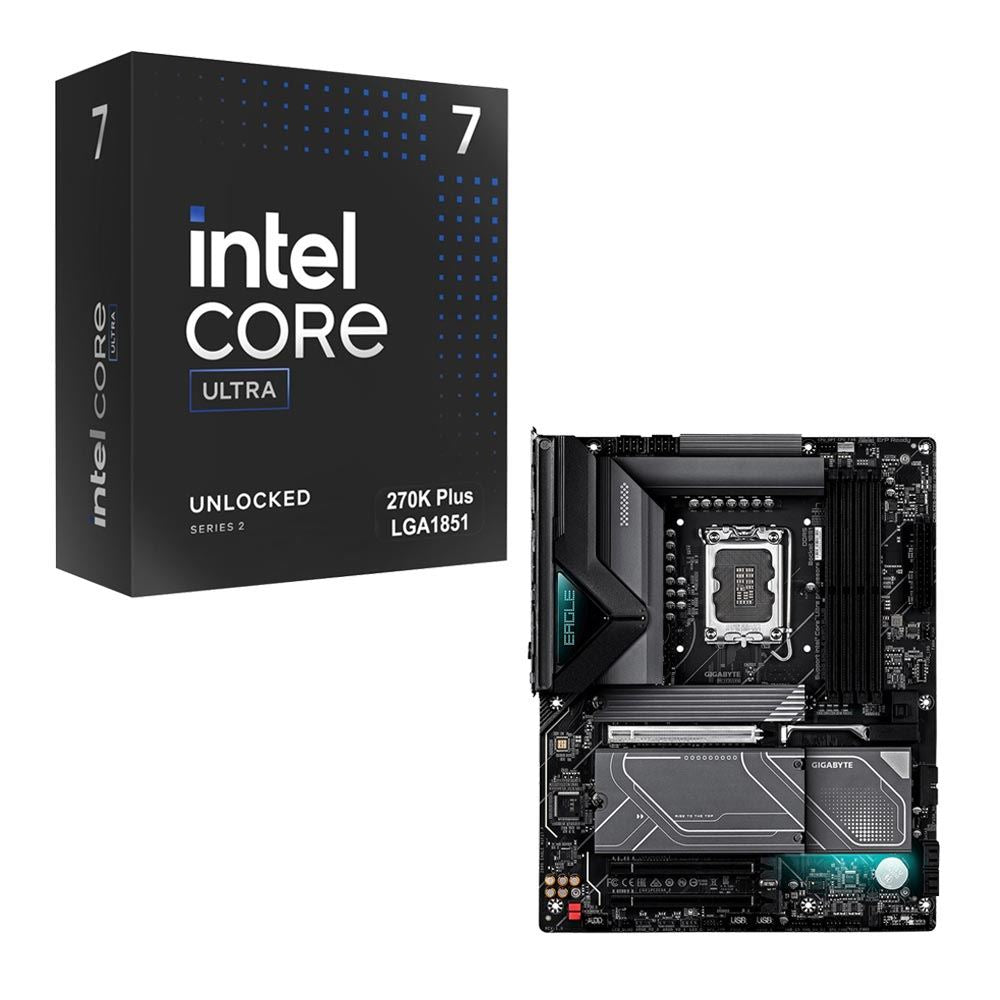

Key Features
Arrow Lake 24-Core Desktop Processor
Intel Z890
40MB L2, 36MB Smart Cache
Intel LGA 1851 Processors
8 Performance Cores & 16 Efficient Cores, 24 Threads
256GB Dual Channel 4 x 288pin DIMM Support
Intel B860, H810, Z890 Chipsets
256GB DDR5-5200 Memory Supported
Heatsink Not Included

Specifications
Cores
Twenty Four-Core
CPU Core
Arrow Lake
Compatibility
Intel Z890
Intel B860
Intel H810
Level 2 Cache
40MB
Level 3 Cache
36MB
Socket Type
LGA 1851
Thermal Power
125W
Processor

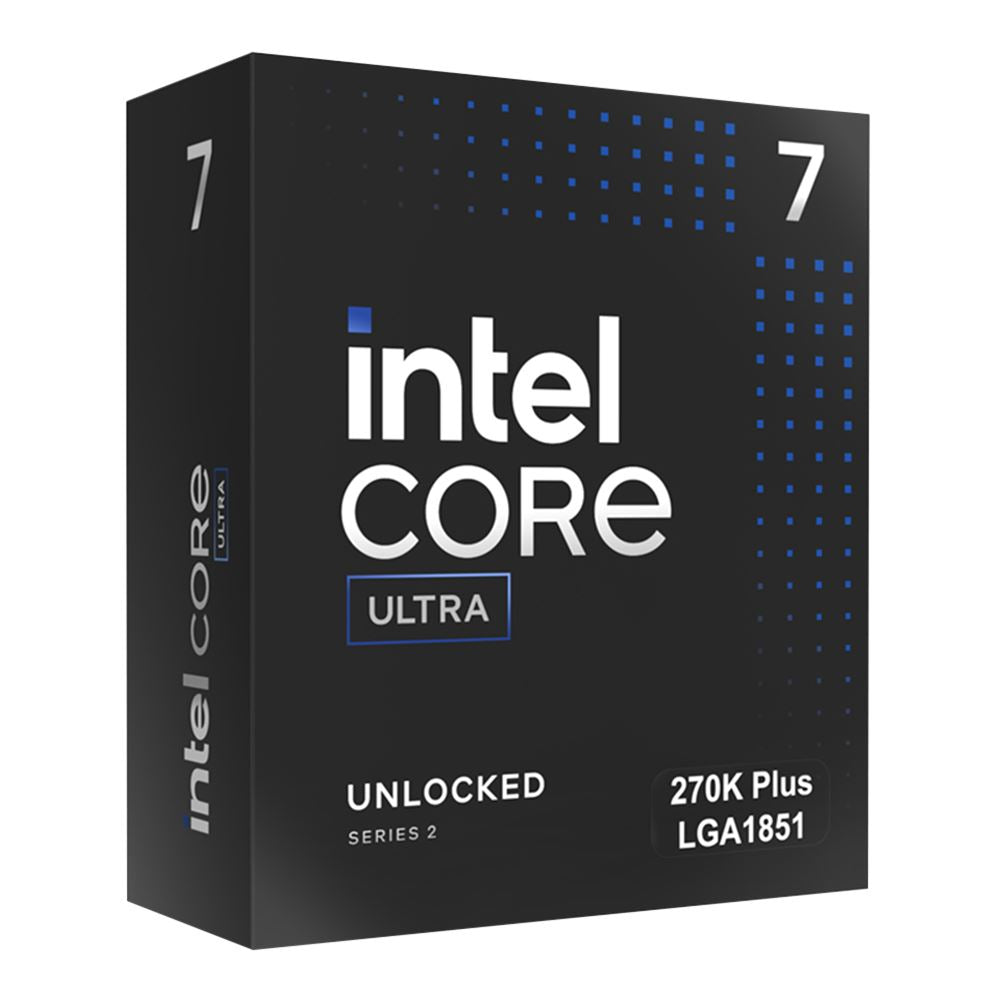

Core Ultra 7 270K Plus
Operating Frequency
3.70GHz
Performance Cores
8
Efficient Cores
16
Turbo Speed
5.50GHz
Number of Threads
24 Processing Threads
Processor Data Width
64-Bit
Technology
Unlocked Multiplier
Yes
VR Ready
Yes
Processor Type
Desktop
Advanced Technologies
Idle States
Thermal Monitoring Technologies
Execute Disable Bit
Mode-based Execute Control (MBEC)
Graphics Specifications
Graphics Cores
4 Intel Xe Cores
Graphics Specifications
Intel Graphics
Graphics Base Frequency
300MHz
Graphics Max Dynamic Frequency
2.00GHz
Dual Display Capable
Yes
Memory Specifications
ECC
Non-ECC; Non-Registered
ECC; Non-Registered
Memory Type
DDR5-7200
Integrated Memory Controller
Yes
Maximum Memory Supported
256GB
Memory Channels
2
Ports & Expansion
PCI Express Configurations
Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
PCI Express Revision
5.0 and 4.0
PCI Express Lanes
24
Warranty
Parts
3 Years Limited
Labor
3 Years Limited
Package Contents
What's in the Box
CPU Only

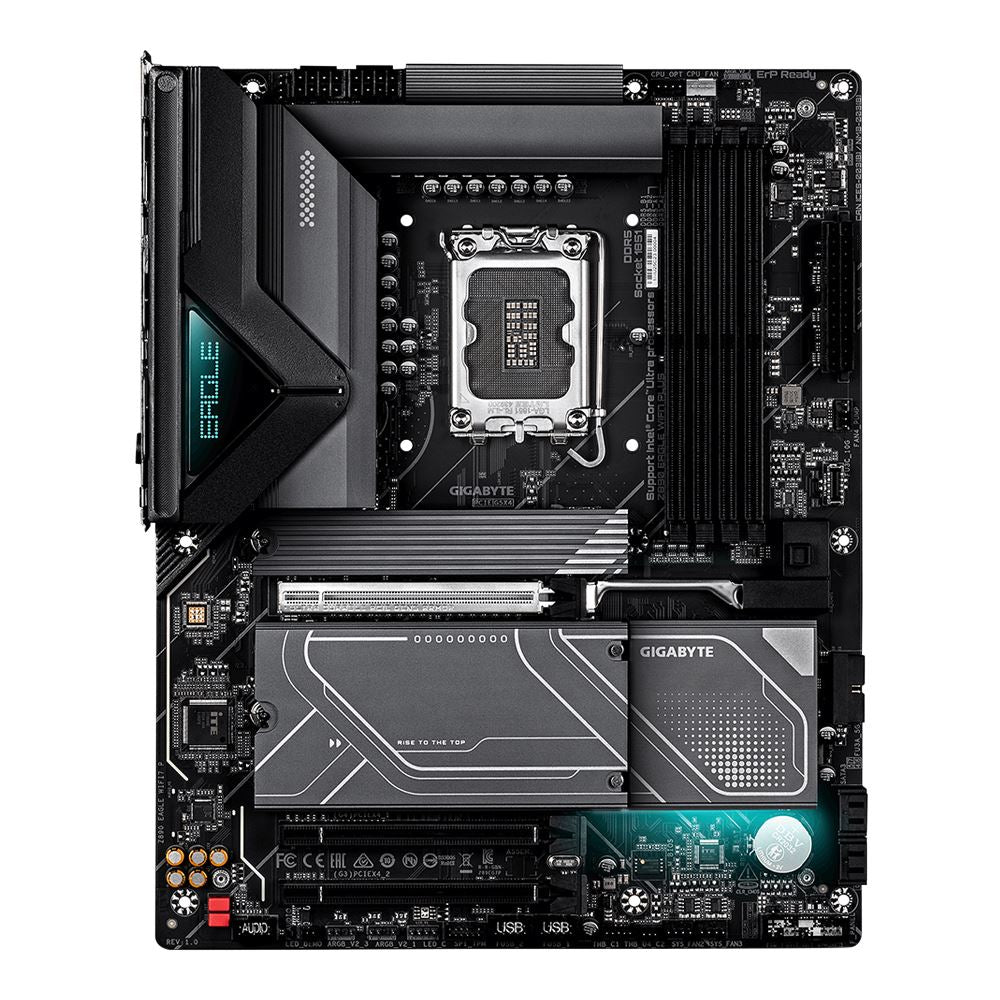

Z890 EAGLE WIFI7 PLUS Intel LGA 1851 ATX Motherboard
General Specifications
Packaging
Retail
Chipset
Chipset
Intel Z890
BIOS
512Mb AMI UEFI Bios
Manageability
PnP 1.0a
WfM 2.0
SM BIOS 2.7
ACPI 5.0
DMI 2.7
CPU Support
Intel CPU Support
Core Ultra Processors
Socket Type
LGA 1851
Memory Specifications
ECC
Non-ECC; Non-Registered
Memory Type
DDR5-4800
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-4400
DDR5-5000
DDR5-5800
Memory Speeds Supported
9466+ MHz (OC)
Memory Slots
4 x 288pin DIMM
Memory Channel Support
Dual Channel
Max Memory Supported
256GB
Maximum Memory Supported Per Slot
64GB
Video Specifications
Onboard Graphic Chipset
Requires CPU with Integrated Graphics
Storage Specifications
M.2 Port Type
2280
22110
25110
2580
SATA Express
4 x M.2 Socket 3
M Key
SATA 6Gb/s
4
RAID Support
RAID 0
RAID 1
RAID 5
RAID 10
Audio Specifications
Audio Chipset
Realtek ALC1220
Audio Channels
7.1
Networking
WiFi Support
Onboard WiFi
LAN Chipset
Realtek 2.5Gb Ethernet
LAN Speed
10/100/1000/2500Mbps
Wireless LAN Chipset
Intel Wi-Fi 7 BE202 (BE200NGW M)
Wireless Technology
802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.4
WiFi 7 (802.11be)
Expansion Slots
PCI Express 4.0 x16
2
PCI Express 5.0 x16
1
Back Panel Ports
Specialty Ports
2 x WiFi Antenna Ports
USB 2.0
4 x USB 2.0 (Type-A)
USB 3.1
2 x USB 3.2 (Gen 2 Type-A)
3 x USB 3.2 (Gen 1 Type-A)
1 x USB4 (Type-C 40 Gb/s)
Video Connectors
1 x DisplayPort 2.1
LAN Ports
1 x 10/100/1000/2500 RJ-45 LAN
Audio Ports
1 x 3.5 mm Microphone
1 x 3.5 mm Line-Out
Buttons
Flash BIOS
Clear CMOS
Power
Reset
Digital Audio
1 x Optical
Internal I/O & Connectors
Headers
1 x CPU Fan Header
1 x Water Pump Header
3 x System Fan Header
USB
2 x USB 2.0 Headers (4 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
1 x USB 3.2 Gen 2 Type-C Header (1 Port)
Other I/O
3 x Addressable LED Headers
Power
Power Connectors
1 x 24-pin ATX Connector
2 x 8-pin +12 V Connector
ATX Connector
24-pin ATX Power Connector
Physical Specifications
Depth
12.00 in. (305.00 mm)
Width
9.61 in. (244.00 mm)
Box Dimensions (WxDxH)
10.60 x 13.20 x 3.10 in. (269.24 x 335.28 x 78.74 mm)
Form Factor
ATX
Warranty
Parts
3 Years Limited
Labor
3 Years Limited
Package Contents
What's in the Box
Motherboard. Antenna, 2x SATA Cables, G Connector, 4x M.2 Rubber Pads
