COMPUTER BARGAIN CENTER

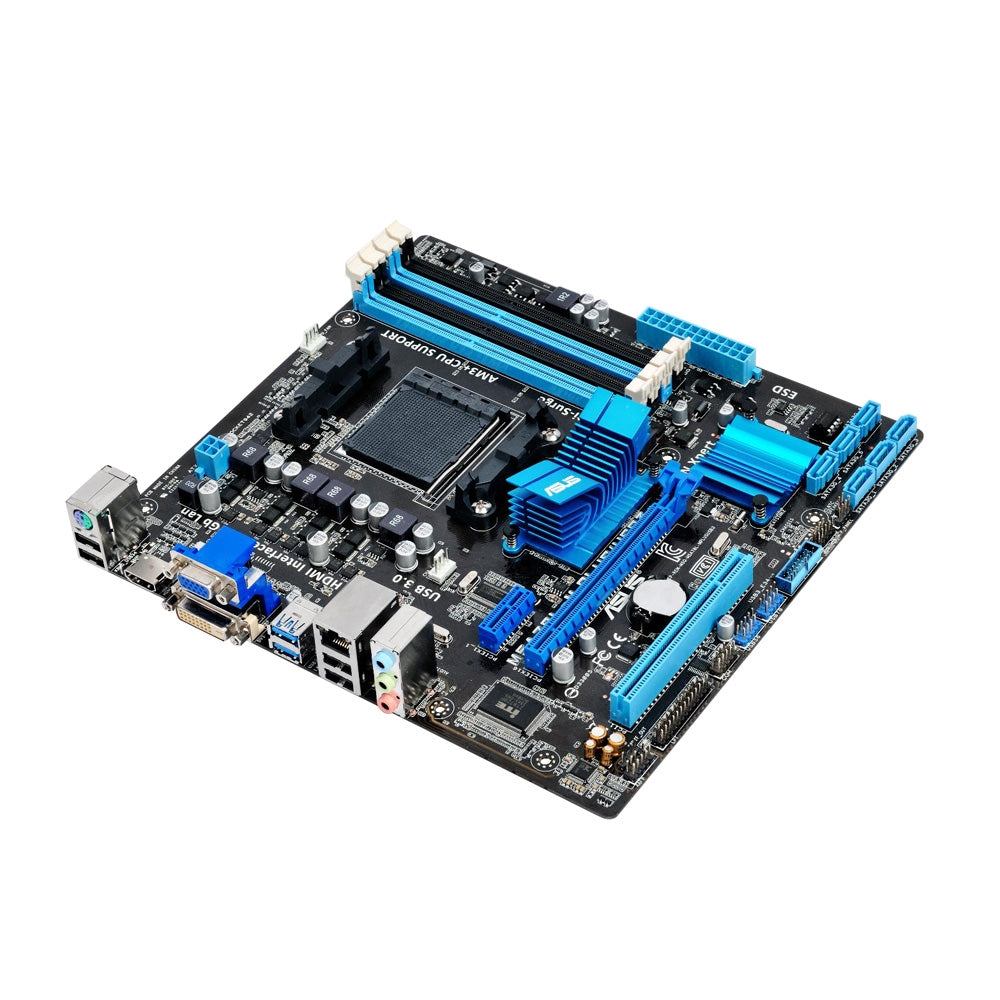

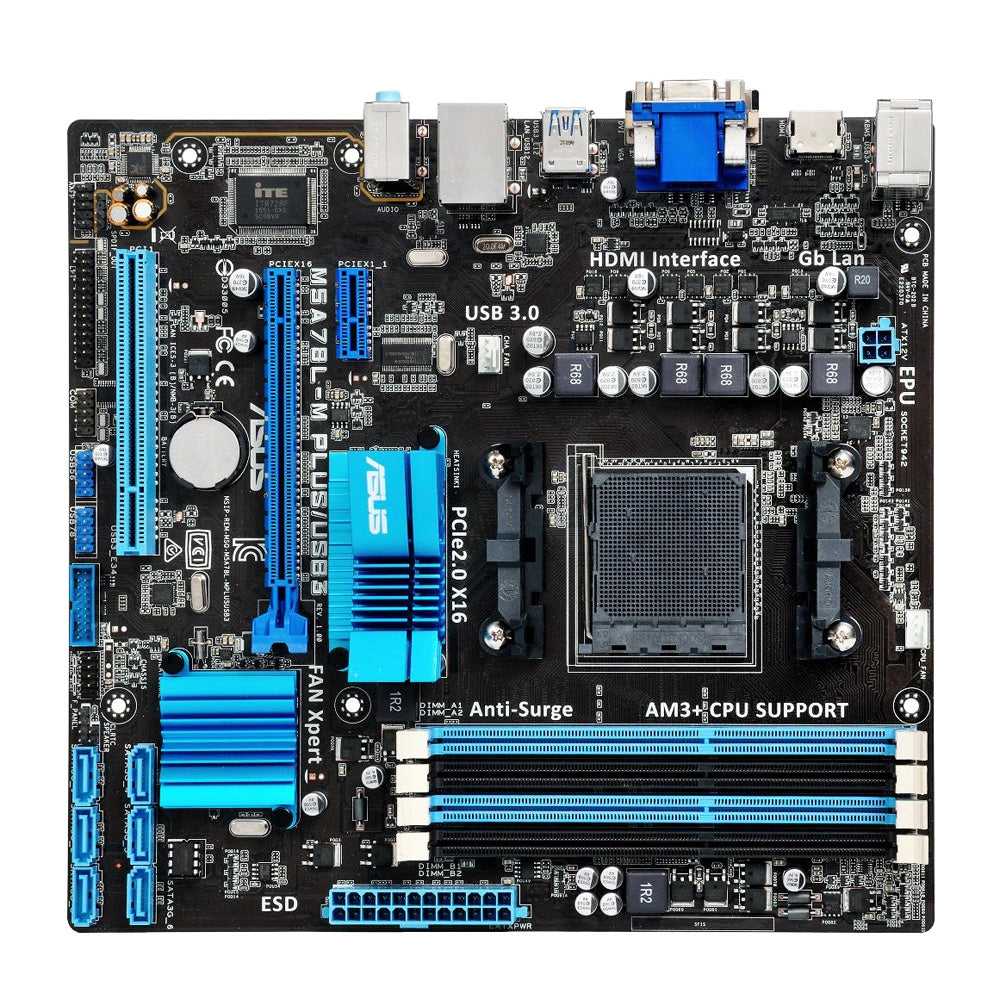

ASUS M5A78L-M Plus/USB3 AM3+

(0)

$ 75.00

Specifications

PRODUCT INFORMATION

SKU

055988

Mfr Part#

M5A78LMPLUSUSB3

UPC

889349413081

GENERAL

Packaging

Retail

Features

ASUS Exclusive Features: Ai Charger, Anti-Surge, Low EMI Solution

CHIPSET

BIOS

16Mb AMI UEFI Bios

North Bridge

AMD 760G

South Bridge

AMD SB710

Supported Chipset Technologies

AMD Cool 'n' Quiet Technology

CPU SUPPORTED

Socket Type

AM3+

AMD CPU Support

Phenom II
Athlon II
Sempron
Sempron 100 series
FX

MEMORY

Supported Memory Technologies

ECC Memory Supported
Non-ECC Memory Supported
Unbuffered Memory Supported

Maximum Memory Supported Per Slot

8GB

Memory Type

DDR3

Memory Speeds Supported

DDR3 2000 O.C., 1866 O.C., 1800 O.C., 1600 O.C., 1333, 1066

Memory Slots

4 x 240pin DIMM

Max Memory Supported

32GB

Memory Channel Support

Dual Channel

VIDEO

Onboard Graphic Chipset

AMD Radeon HD 3000

Multi-GPU Support

Hybrid CrossFireX

STORAGE

SATA 3Gb/s

6

RAID Support

RAID 0
RAID 1
RAID 10

AUDIO

Audio Chipset

Realtek ALC887

Audio Channels

7.1

NETWORKING

LAN Chipset

Realtek RTL8111H

LAN Speed

10/100/1000Mbps

Supported Network Technologies

Wake-On-LAN, Supports PXE, Energy Efficient Ethernet 802.3az

EXPANSION SLOTS

PCI Express 2.0 x16

1

PCI Express 2.0 x16

1

PCI Express 2.0 x1

1

PCI

1

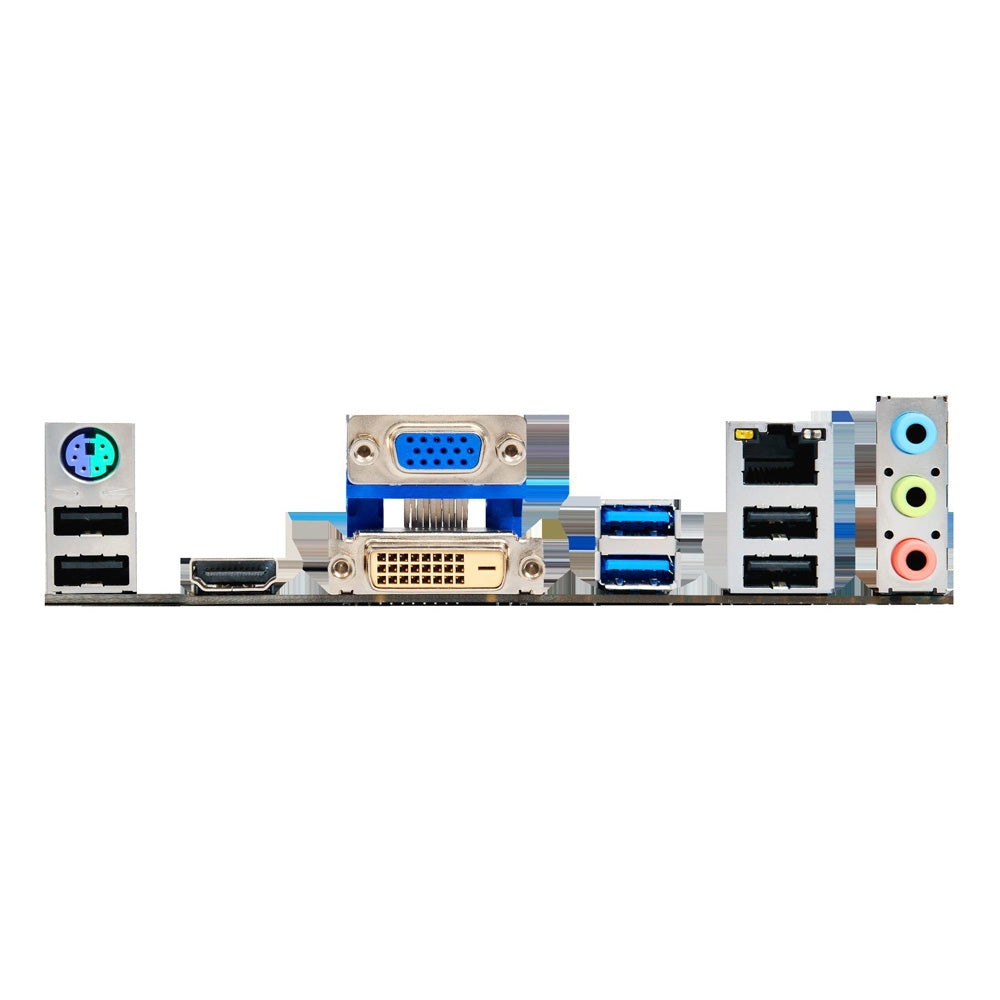

BACK PANEL PORTS

Video Connectors

HDMI x1
DVI-D x1
1 x VGA 15-pin
1 x DVI-D
1 x HDMI 1.4

USB 2.0

4 x USB 2.0 (Type-A)

USB 3.1

2 x USB 3.1 (Gen 1 Type-A)

Legacy Ports

2 x PS/2

LAN Ports

1 x 10/100/1000 RJ-45 LAN

Audio Ports

1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Front Speaker

PS/2

2

DVI

1

HDMI

1

VGA 15-pin

1

LAN RJ-45

1

Audio Ports

3

Digital Audio

1 x Optical

INTERNAL I/O & CONNECTORS

Headers

1 x CPU Fan Header
1 x Front Audio Header
1 x S/PDIF-Out Header
1 x Parallel Port Header
1 x Speaker Header
1 x COM Port Header
1 x Chassis Fan Header

USB

1 x USB 3.1 Gen1 Connector (supports additional 2 USB 3.1 Gen1 ports)
2 x USB 2.0 Headers (supports 4 additional USB 2.0 ports)

Other I/O

1 x Clearing CMOS Jumper
1 x System Panel

POWER

ATX Power Connector

24-pin

ATX12V / EPS 12V Connector

4-pin

Environmental Standards

ErP Ready

PHYSICAL SPECIFICATIONS

Dimensions (WxD)

9.0" x 9.6" (229mm x 244mm)

Form Factor

mATX

WARRANTY

Parts

3 Years

Labor

3 Years

Out of stock

COMPUTER BARGAIN CENTER

ASUS PRIME X399-A TR4 eATX AMD

(0)

$ 365.00

Specifications
PRODUCT INFORMATION
SKU
367995
Mfr Part#
PRIME X399-A
UPC
889349828083
GENERAL
Packaging
Retail
Features
ASUS Exclusive Features: USB BIOS Flashback, AI Suite 3, Ai Charger, Onboard Button : Power, ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface, Turbo LAN, Crystal Sound 3, PC Cleaner
Overclocking Features
5-Way Optimization, OC Design
CHIPSET
BIOS
128 AMI UEFI Bios
North Bridge
AMD X399
CPU SUPPORTED
Socket Type
TR4
AMD CPU Support
Ryzen
MEMORY
Supported Memory Technologies
Non-ECC Memory Supported
Unbuffered Memory Supported
Maximum Memory Supported Per Slot
16GB
Memory Type
DDR4
Memory Speeds Supported
DDR4 3200 O.C., 3000 O.C., 2800 O.C., 2666, 2400, 2133
Memory Slots
8 x 288pin DIMM
Max Memory Supported
128GB
Memory Channel Support
Quad Channel
VIDEO
Onboard Graphic Chipset
Onboard Graphics Not Supported
Multi-GPU Support
2-Way CrossFireX
3-Way SLI
3-Way CrossfireX
2-Way SLI
Quad SLI
Quad CrossfireX
STORAGE
M.2 Port Type
2242
2260
2280
22110
SATA Express
2 x Socket 3
M Key
1 x U.2
SATA 6Gb/s
6
RAID Support
RAID 0
RAID 1
RAID 10
AUDIO
Audio Chipset
Realtek ALC S1220A
Audio Channels
7.1
NETWORKING
LAN Chipset
Intel I211-AT
LAN Speed
10/100/1000Mbps
Supported Network Technologies
Wake-On-LAN, Supports PXE, Energy Efficient Ethernet 802.3az
EXPANSION SLOTS
PCI Express 3.0 x16
4
BACK PANEL PORTS
USB 3.1
1 x USB 3.1 (Gen 2 Type-C)
1 x USB 3.1 (Gen 2 Type-A)
8 x USB 3.1 (Gen 1 Type-A)
LAN Ports
1 x 10/100/1000 RJ-45 LAN
Audio Ports
1 x SPDIF Optical Digital Audio
1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Front Speaker
1 x 3.5 mm Rear Speaker
1 x 3.5 mm Subwoofer
LAN RJ-45
1
Audio Ports
6
Digital Audio
1 x Optical
INTERNAL I/O & CONNECTORS
Headers
1 x CPU Fan Header
1 x Water Pump Header
1 x Front Audio Header
1 x Water Cooling Fan Header
3 x Chassis Fan Header
2 x RGB Header
1 x Extension Fan Header
USB
2 x USB 3.1 Headers (supports 4 additional USB 3.1 Gen1 ports)
2 x USB 2.0 Headers (supports 4 additional USB 2.0 ports)
Other I/O
1 x Thermal Sensor Connector
1 x Clear CMOS Buton
1 x Power Button
1 x System Panel
POWER
ATX Power Connector
24-pin EATX Power Connector
ATX12V / EPS 12V Connector
4-pin, 8-pin
PHYSICAL SPECIFICATIONS
Dimensions (WxD)
12" x 10.6" (305mm x 269mm)
Form Factor
eATX
WARRANTY
Parts
3 Years
Labor
3 Years

Low in stock

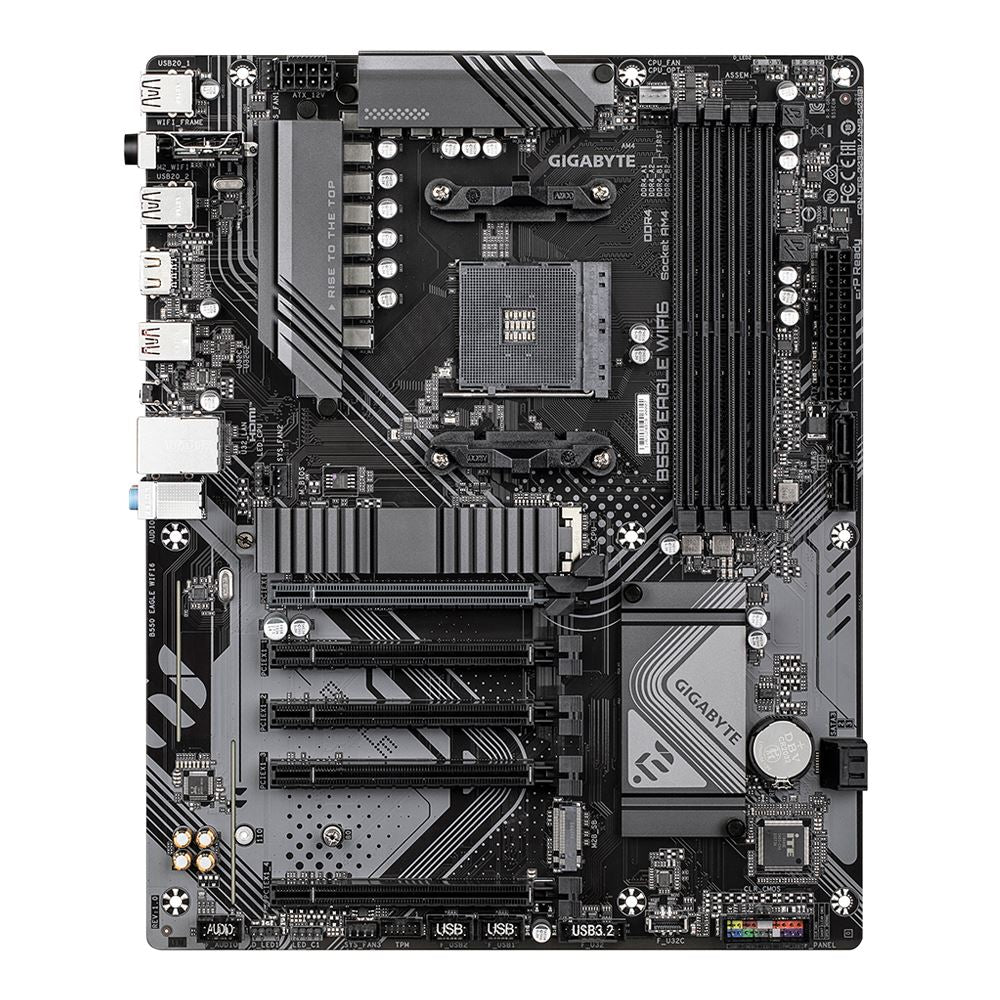

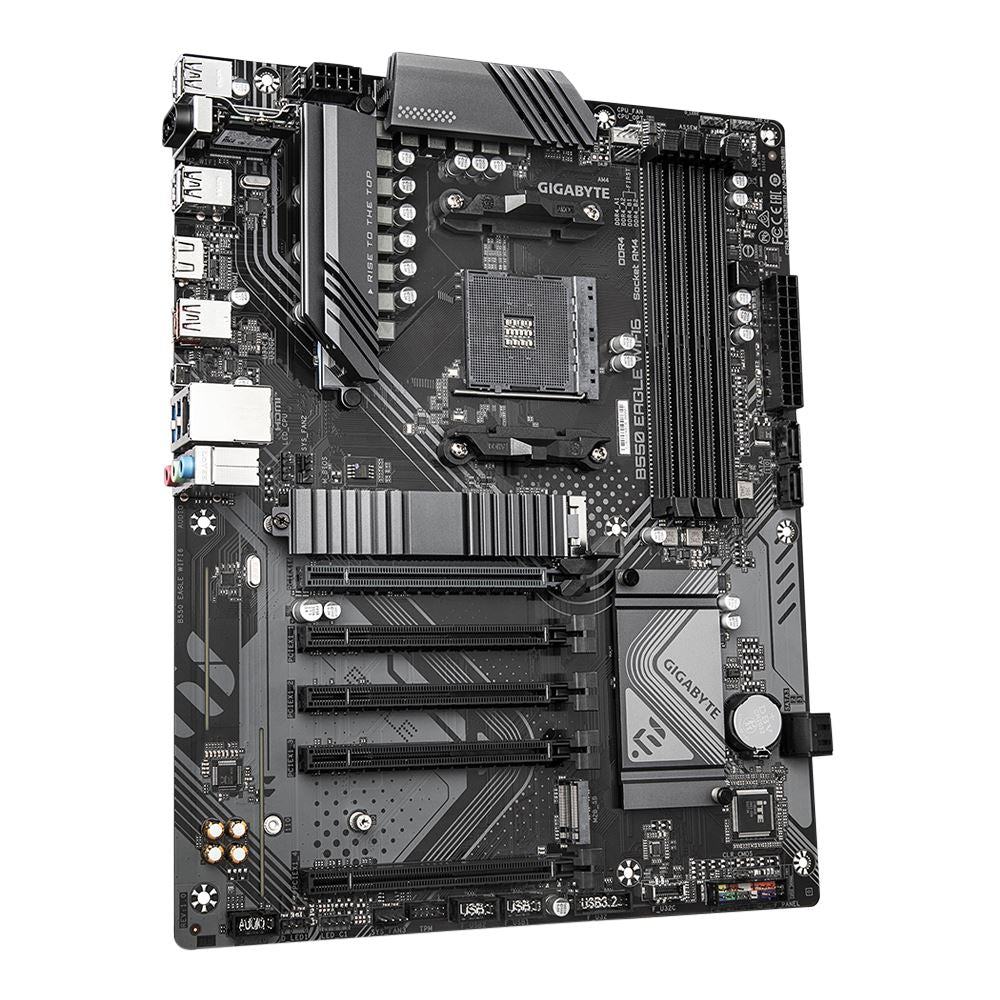

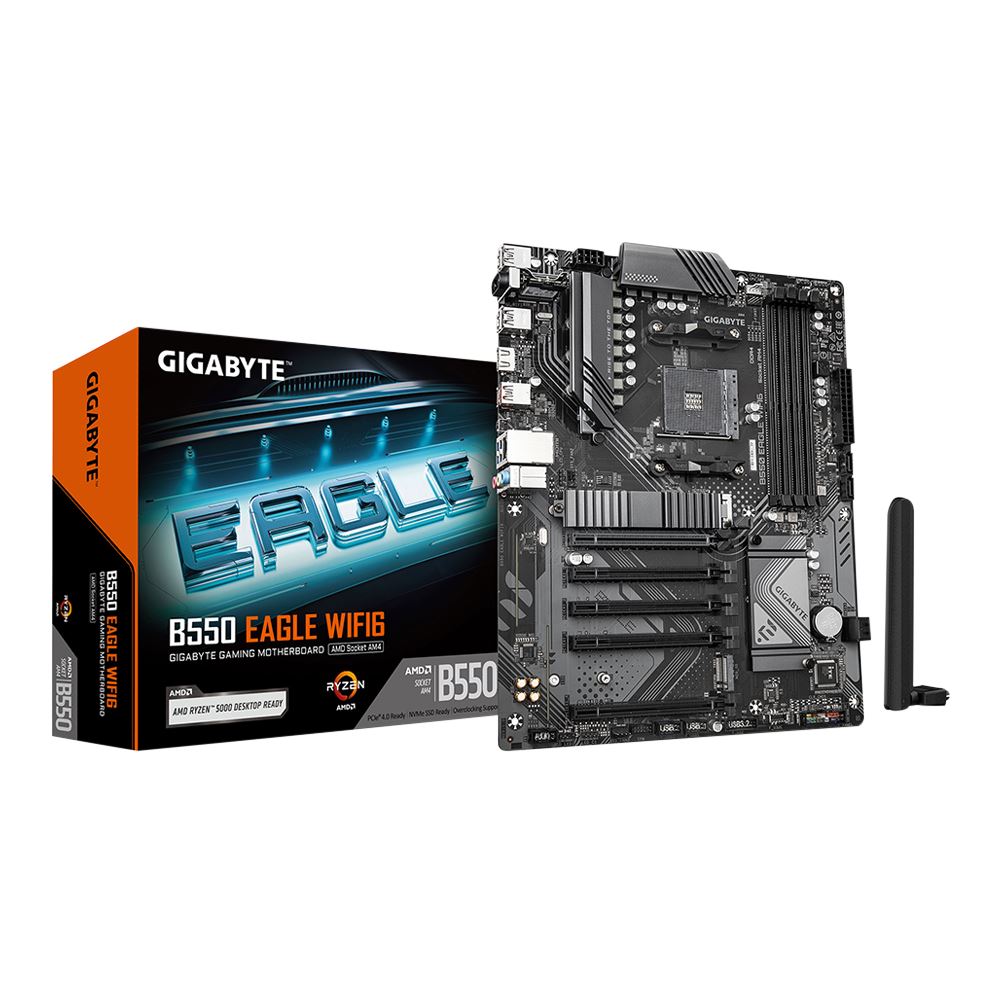

Gigabyte B550 EAGLE WIFI6 AMD AM4 ATX Motherboard

COMPUTER BARGAIN CENTER

Gigabyte B550 EAGLE WIFI6 AMD AM4 ATX Motherboard

(0)

$ 125.00

Key Features

AMD B550
AMD AM4 Ryzen Processors
128GB Dual Channel 4 x 288pin DIMM Support

Product Information

SKU

849182

Mfr Part#

B550EAGLEWIFI6

UPC

889523047262

General Specifications

Packaging

Retail

Chipset

AMD B550

BIOS

128Mb AMI UEFI Bios

Manageability

PnP 1.0a
WfM 2.0
SM BIOS 2.7
ACPI 5.0
DMI 2.7

CPU Support

AMD CPU Support

Ryzen

Socket Type

AM4

Memory Specifications

ECC

Non-ECC; Non-Registered
ECC; Non-Registered

Memory Type

DDR4-2133
DDR4-2400
DDR4-2667
DDR4-2933
DDR4-3200

Memory Slots

4 x 288pin DIMM

Memory Channel Support

Dual Channel

Max Memory Supported

128GB

Maximum Memory Supported Per Slot

32GB

Video Specifications

Onboard Graphic Chipset

Requires CPU with Integrated Graphics

Storage Specifications

SATA Express

2 x M.2 Socket 3
M Key

M.2 Port Type

2280
22110

SATA 6Gb/s

4

RAID Support

RAID 0
RAID 1
RAID 10

Audio Specifications

Audio Channels

7.1

Networking

WiFi Support

Onboard WiFi

LAN Speed

10/100/1000Mbps

Wireless LAN Chipset

Realtek Wi-Fi 6 RTL8851BE

Wireless Technology

802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.3

Expansion Slots

PCI Express 4.0 x16

1

PCI Express 3.0 x16

4

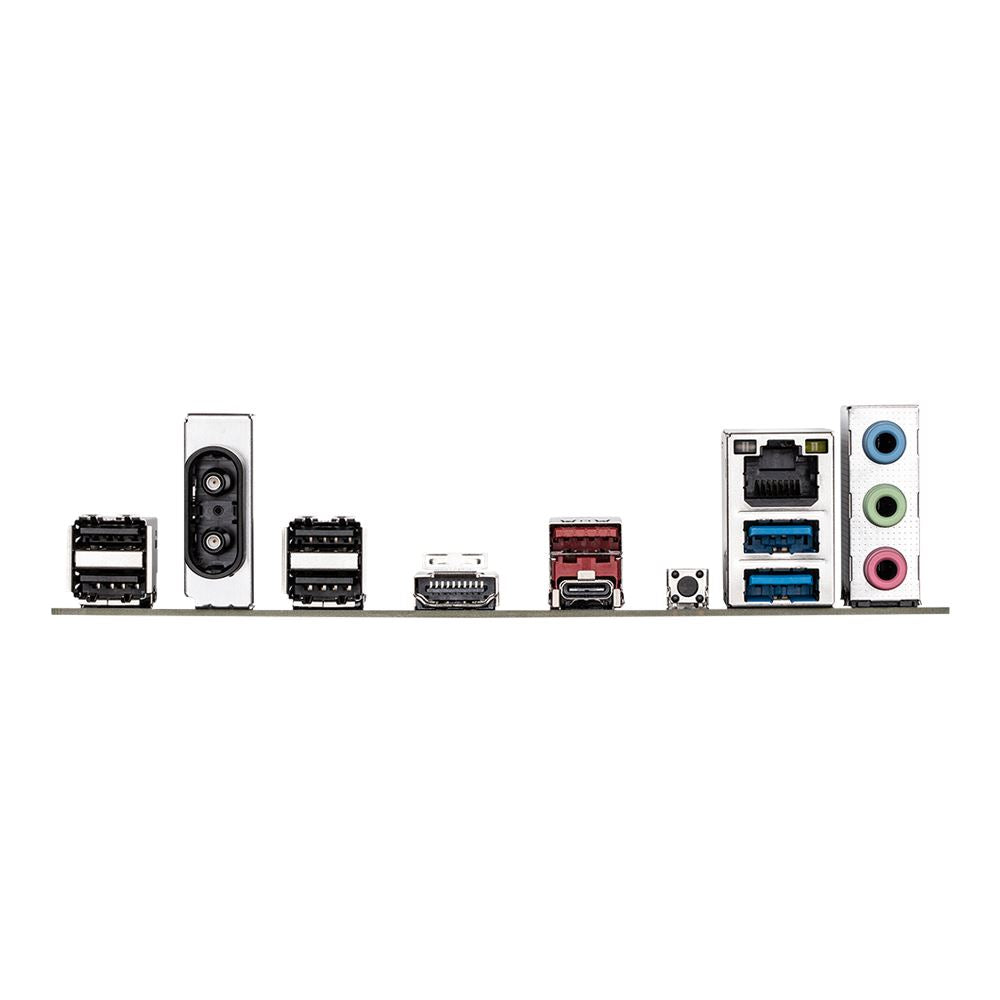

Back Panel Ports

LAN Ports

1 x 10/100/1000 RJ-45 LAN

Audio Ports

1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Line-Out

Specialty Ports

2 x WiFi Antenna Ports

USB 2.0

4 x USB 2.0 (Type-A)

USB 3.1

1 x USB 3.2 (Gen 2 Type-A)
2 x USB 3.2 (Gen 1 Type-A)
1 x USB 3.2 (Gen 1 Type-C)

Video Connectors

1 x HDMI 2.1

Internal I/O & Connectors

Headers

1 x CPU Fan Header
1 x Water Pump Header
3 x System Fan Header

USB

2 x USB 2.0 Headers (4 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
1 x USB 3.2 Gen 1 Type-C Header (1 Port)

Other I/O

2 x Addressable LED Headers

Power

Power Connectors

1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector

ATX Connector

24-pin ATX Power Connector

Physical Specifications

Depth

12.00 in. (305.00 mm)

Width

9.61 in. (244.00 mm)

Form Factor

ATX

Warranty

Parts

3 Years

Labor

3 Years

Package Contents

What's in the Box

Motherboard, Manual, I/O Shield, Antenna, 2x SATA Cables, M.2 Screws, M.2 Rubber Pads

Low in stock

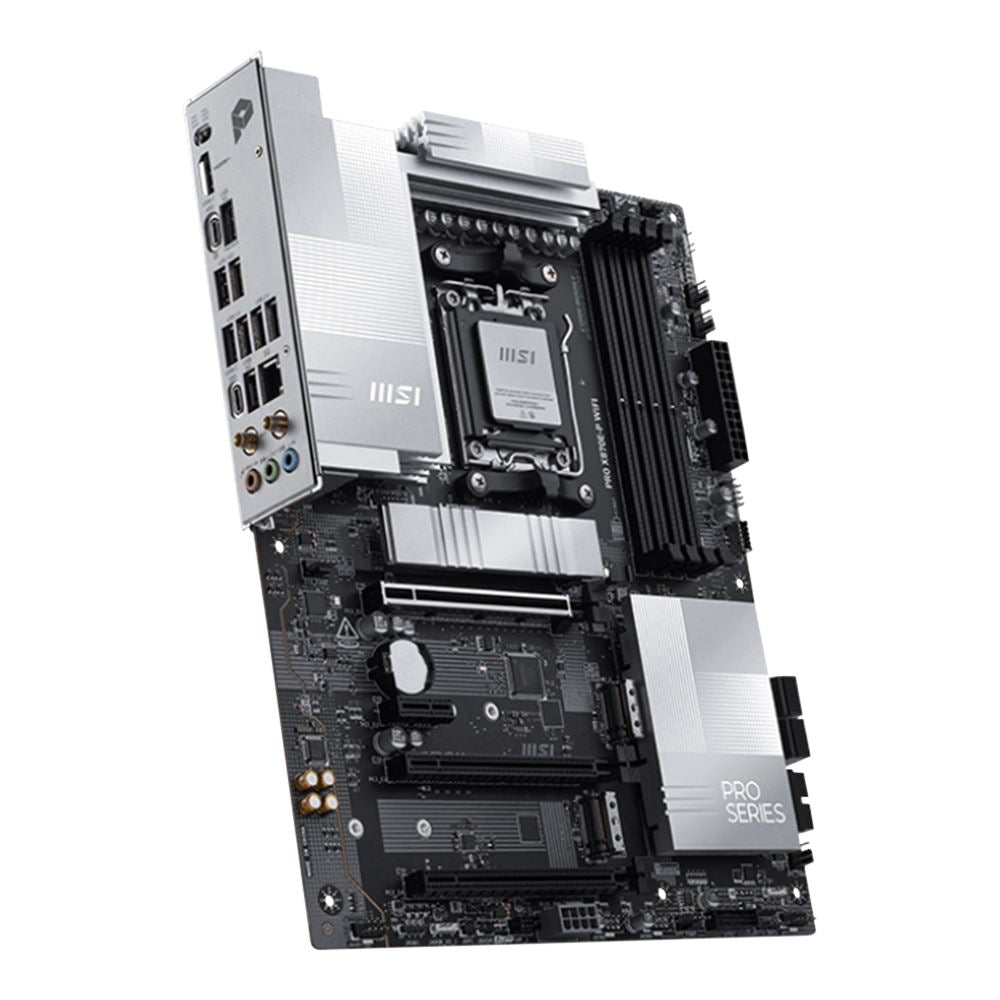

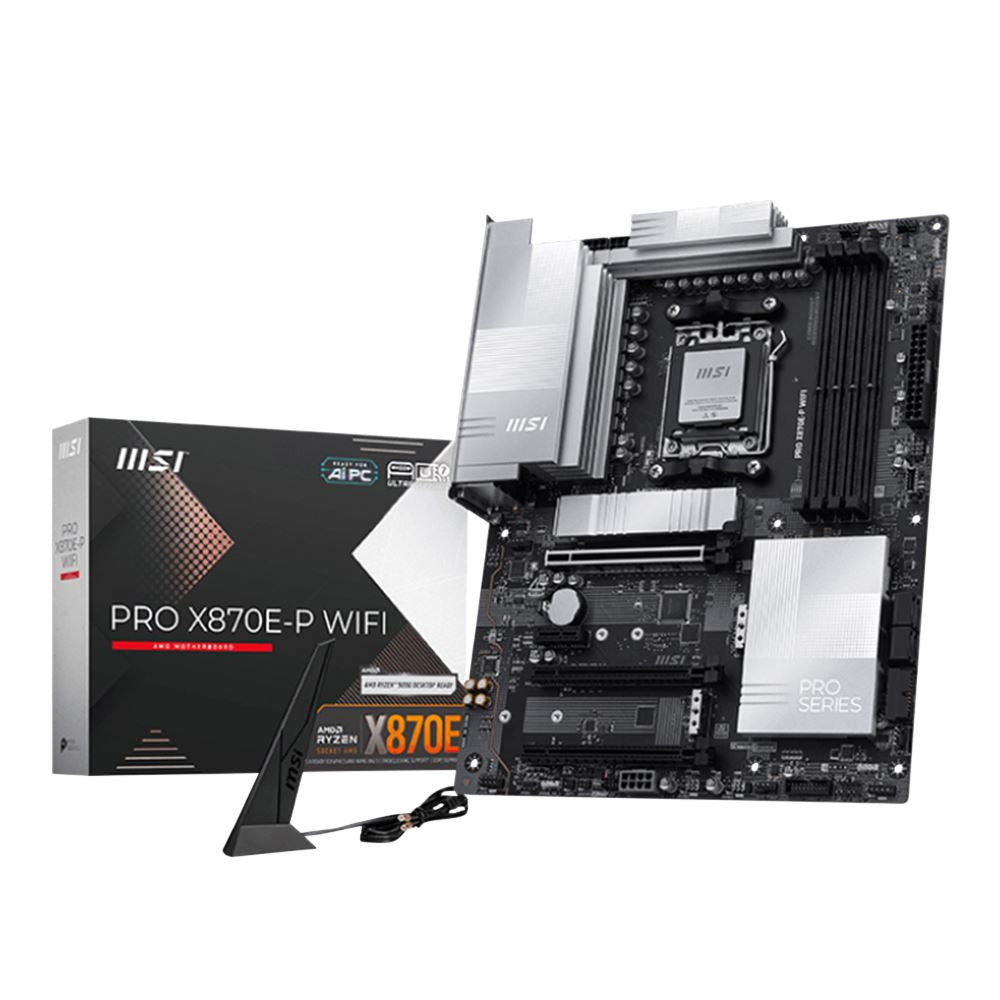

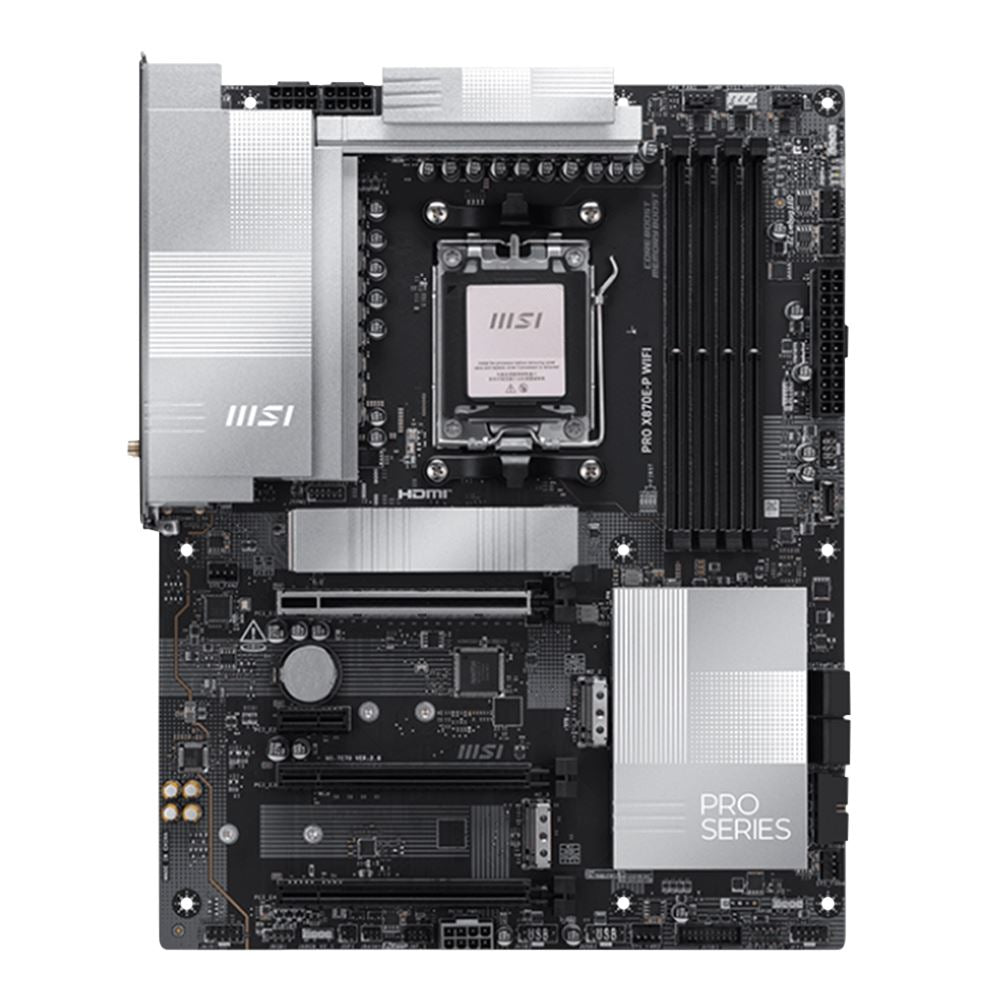

MSI X870E-P PRO WIFI AMD AM5 ATX Motherboard

COMPUTER BARGAIN CENTER

MSI X870E-P PRO WIFI AMD AM5 ATX Motherboard

(0)

$ 399.00

Key Features
AMD X870E
AMD AM5 Ryzen Processors
256GB Dual Channel 4 x 288pin DIMM Support

Product Information
SKU
865840
Mfr Part#
PROX870E-PWIFI
UPC
824142425565
General Specifications
Packaging
Retail
Chipset
Chipset
AMD X870E
CPU Support
AMD CPU Support
Ryzen
Socket Type
AM5
Memory Specifications
ECC
Non-ECC; Non-Registered
Memory Type
DDR5-4800
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5000
Memory Speeds Supported
8200 - 5600 MHz (OC)
Memory Slots
4 x 288pin DIMM
Memory Channel Support
Dual Channel
Max Memory Supported
256GB
Maximum Memory Supported Per Slot
64GB
Video Specifications
Onboard Graphic Chipset
Requires CPU with Integrated Graphics
Storage Specifications
M.2 Port Type
2260
2280
22110
SATA Express
1 x M.2 Socket 3
E Key
3 x M.2 Socket 3
M Key
SATA 6Gb/s
4
RAID Support
RAID 0
RAID 1
RAID 5
RAID 10
Audio Specifications
Audio Chipset
Realtek ALC897
Audio Channels
7.1
Networking
WiFi Support
M.2 Slot
LAN Chipset
Realtek 8126VB
LAN Speed
100/1000/2500/5000Mbps
Wireless Technology
802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.4
WiFi 7 (802.11be)
Expansion Slots
PCI Express 4.0 x16
1
PCI Express 5.0 x16
1
PCI Express 3.0 x16
1
PCI Express x1
1

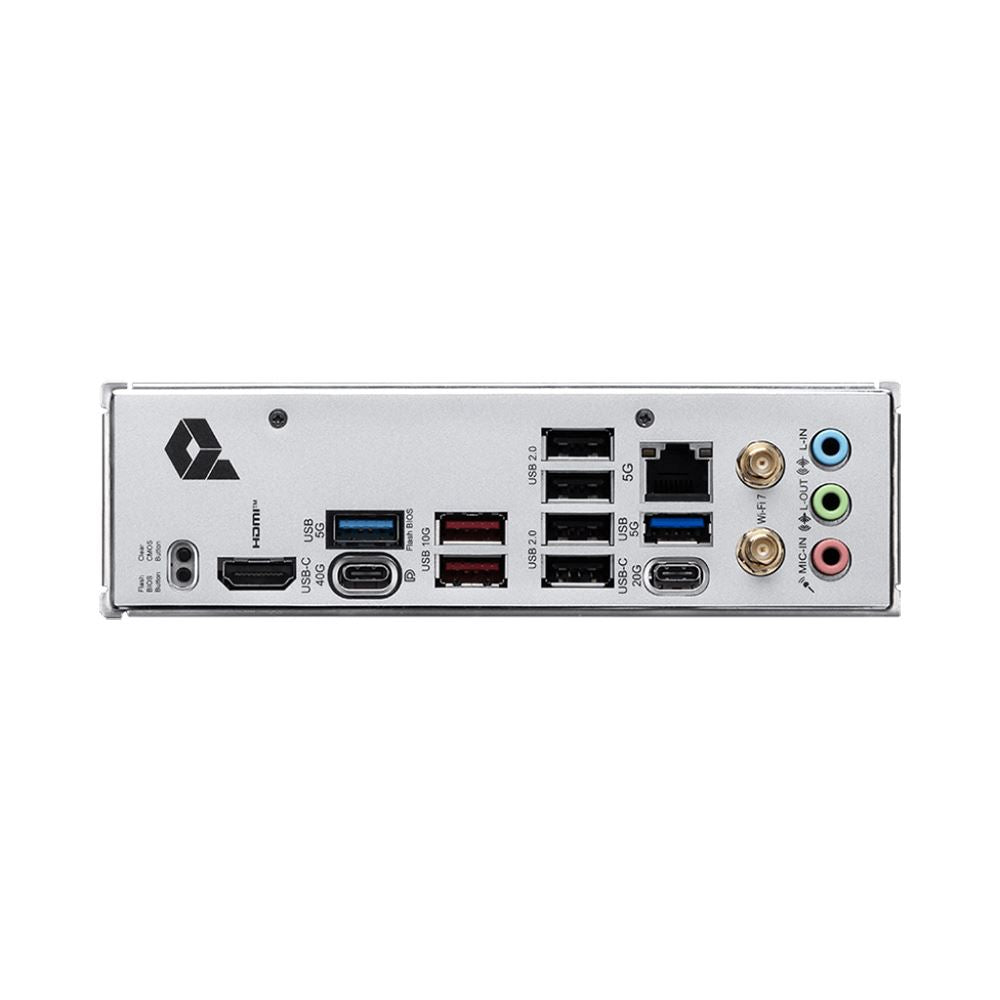

Back Panel Ports
LAN Ports
1 x 100/1000/2500/5000 RJ-45 LAN
Audio Ports
1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Line-Out
Specialty Ports
2 x WiFi Antenna Ports
USB 2.0
4 x USB 2.0 (Type-A)
USB 3.1
1 x USB 3.2 (Gen 2x2 Type-C)
2 x USB 3.2 (Gen 1 Type-A)
1 x USB4 (Type-C 40 Gb/s)
Video Connectors
1 x HDMI 2.1
Internal I/O & Connectors
Headers
1 x CPU Fan Header
1 x Water Pump Header
6 x System Fan Header
USB
3 x USB 2.0 Headers (6 Ports)
2 x USB 3.2 Gen 1 Type-A Headers (4 Ports)
1 x USB 3.2 Gen 2 Type-C Header (1 Port)
Other I/O
3 x Addressable LED Headers
Power
Power Connectors
1 x 24-pin ATX Connector
2 x 8-pin +12 V Connector
1 x 8-pin PCIe Power Connector
ATX Connector
24-pin ATX Power Connector
Physical Specifications
Depth
12.00 in. (304.80 mm)
Width
9.61 in. (244.00 mm)
Form Factor
ATX
Warranty
Parts
3 Years
Labor
3 Years
Package Contents
What's in the Box
Motherboard, EZ M.2 Clip Remover, M.2 Clips, Antenna, 2x SATA Cables, 1 to 2 EZ Conn-Cable

Low in stock

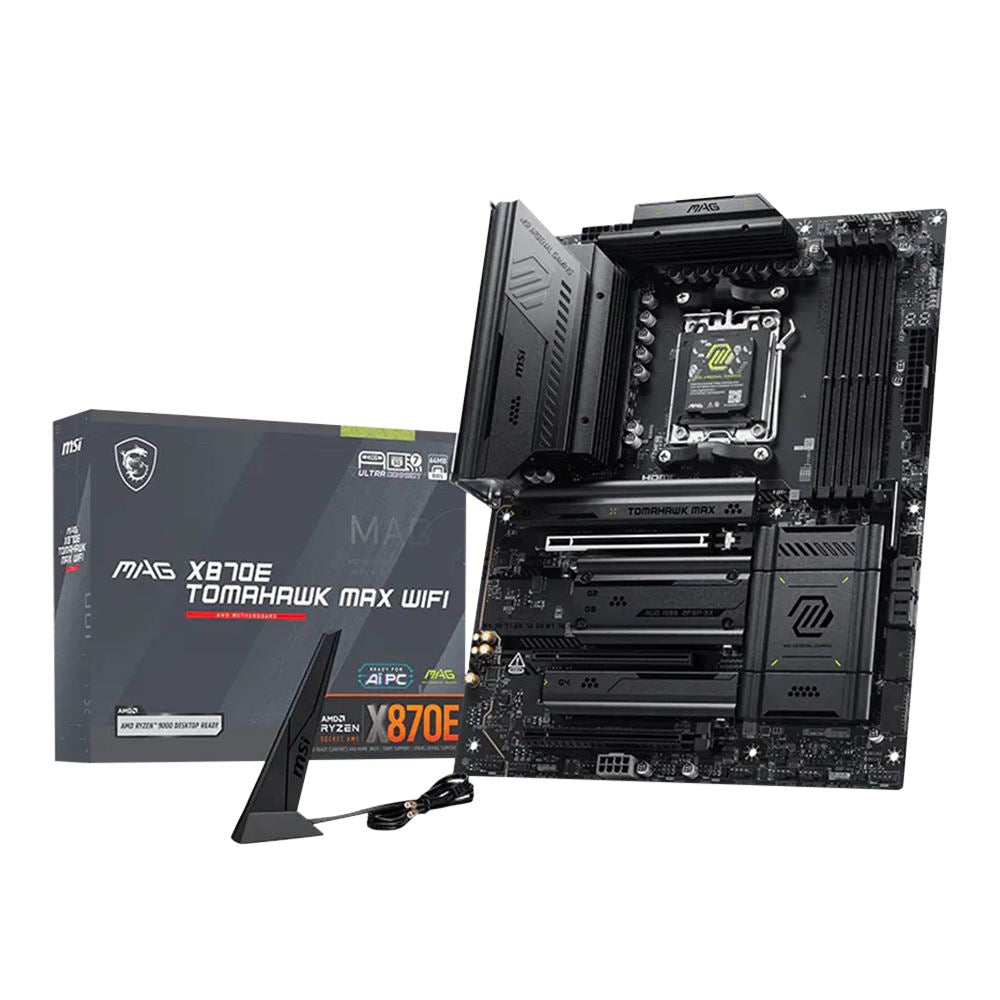

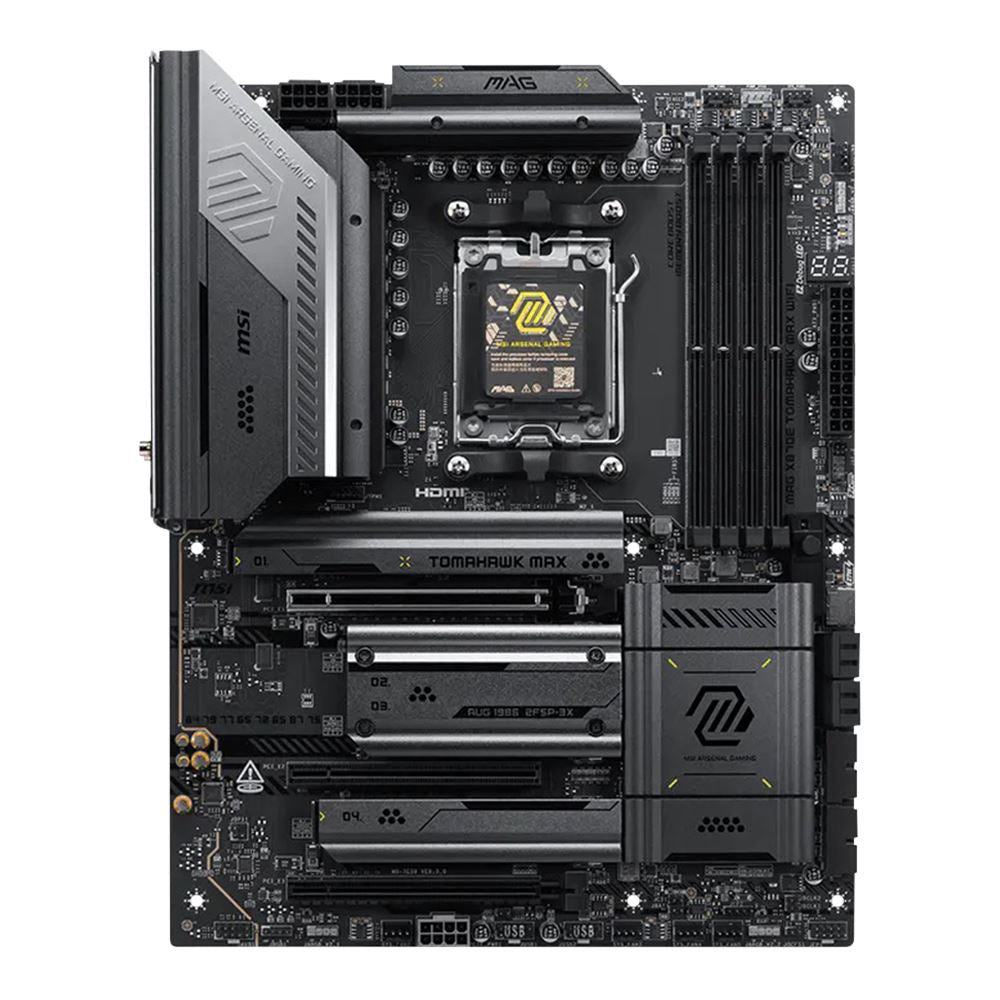

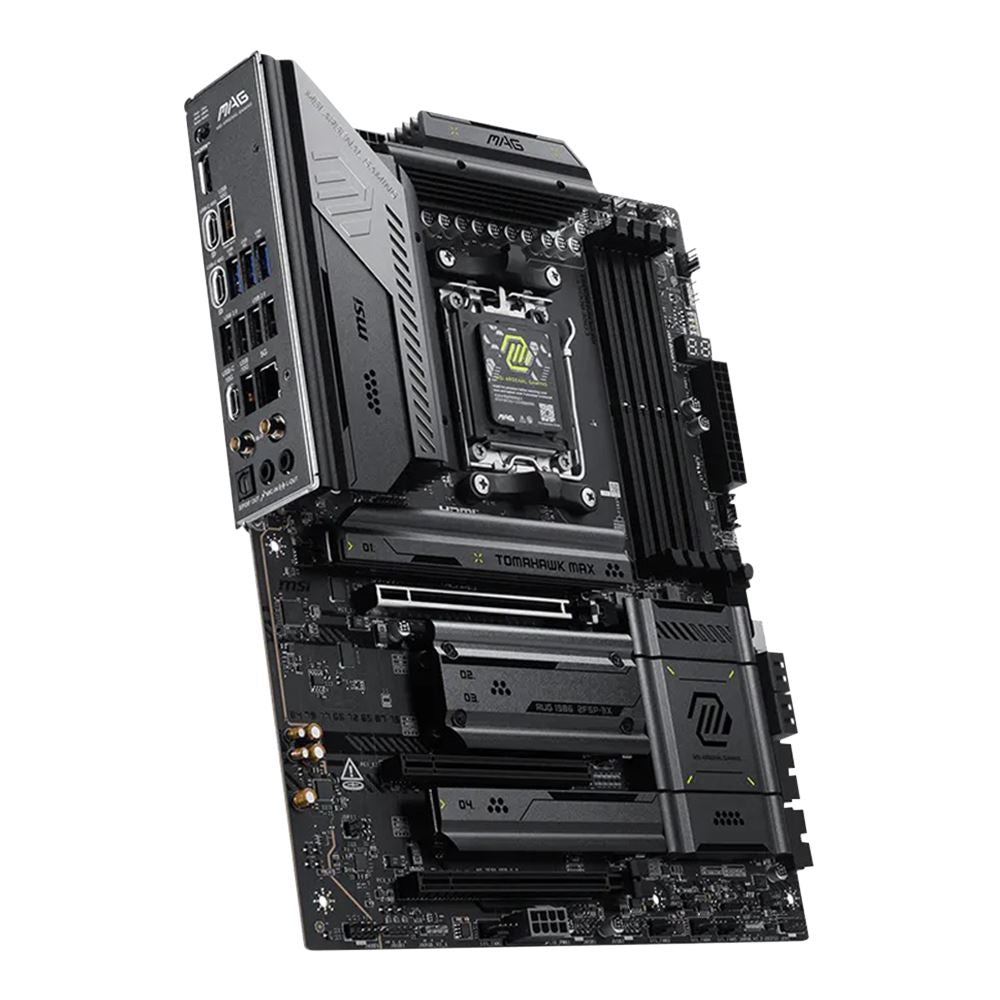

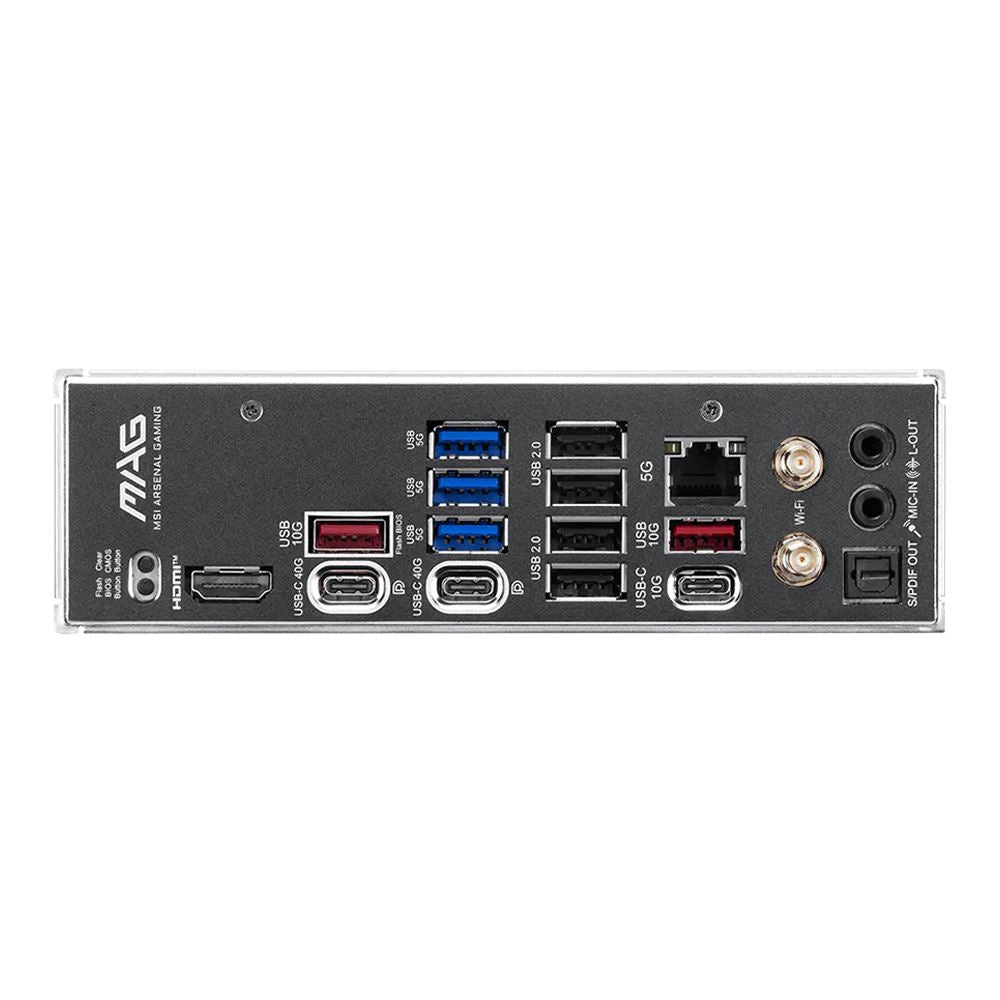

MSI X870E MAG TOMAHAWK MAX WIFI AMD AM5 ATX Motherboard

COMPUTER BARGAIN CENTER

MSI X870E MAG TOMAHAWK MAX WIFI AMD AM5 ATX Motherboard

(0)

$ 429.00

Key Features

AMD X870E
AMD AM5 Ryzen Processors
256GB Dual Channel 4 x 288pin DIMM Support

Product Information
SKU
008177
Mfr Part#
MAGX870ETMHWKMW
UPC
824142449004
General Specifications
Packaging
Retail
Chipset
Chipset
AMD X870E
CPU Support
AMD CPU Support
Ryzen
Socket Type
AM5
Memory Specifications
ECC
Non-ECC; Non-Registered
Memory Type
DDR5-4800
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5000
Memory Speeds Supported
8400 - 5600 (OC) MHz
Memory Slots
4 x 288pin DIMM
Memory Channel Support
Dual Channel
Max Memory Supported
256GB
Maximum Memory Supported Per Slot
64GB
Video Specifications
Onboard Graphic Chipset
Requires CPU with Integrated Graphics
Storage Specifications
M.2 Port Type
2260
2280
22110
SATA Express
1 x M.2 Socket 3
E Key
SATA 6Gb/s
4
RAID Support
RAID 0
RAID 1
RAID 5
RAID 10
Audio Specifications
Audio Chipset
Realtek ALC4080
Audio Channels
7.1
Networking
WiFi Support
M.2 Slot
LAN Chipset
Realtek 8126 5G LAN
LAN Speed
100/1000/2500/5000Mbps
Wireless Technology
802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.4
WiFi 7 (802.11be)
Expansion Slots
PCI Express 4.0 x16
1
PCI Express 5.0 x16
1
PCI Express 3.0 x16
1
Back Panel Ports
Specialty Ports
2 x WiFi Antenna Ports
USB 2.0
4 x USB 2.0 (Type-A)
USB 3.1
1 x USB 3.2 (Gen 2 Type-C)
2 x USB 3.2 (Gen 2 Type-A)
3 x USB 3.2 (Gen 1 Type-A)
2 x USB4 (Type-C 40 Gb/s)
Video Connectors
1 x HDMI 2.1
LAN Ports
1 x 100/1000/2500/5000 RJ-45 LAN
Buttons
Flash BIOS
Clear CMOS
Audio Ports
1 x 3.5 mm Microphone
1 x 3.5 mm Line-Out
Digital Audio
1 x Optical
Internal I/O & Connectors
Headers
1 x CPU Fan Header
1 x Water Pump Header
6 x System Fan Header
USB
2 x USB 2.0 Headers (4 Ports)
2 x USB 3.2 Gen 1 Type-A Headers (4 Ports)
1 x USB 3.2 Gen 2x2 Type-C Header (1 Port)
Other I/O
3 x Addressable LED Headers
Power
Power Connectors
1 x 24-pin ATX Connector
2 x 8-pin +12 V Connector
1 x 8-pin PCIe Power Connector
ATX Connector
24-pin ATX Power Connector
Physical Specifications
Depth
12.00 in. (304.80 mm)
Width
9.60 in. (243.84 mm)
Box Dimensions (WxDxH)
11.50 x 15.50 x 15.00 in. (292.10 x 393.70 x 381.00 mm)
Form Factor
ATX
Warranty
Parts
1 Year Limited
Labor
1 Year Limited
Package Contents
What's in the Box
Motherboard, 2x SATA Cables, M.2 EZ Clip II Remover, M.2 Screw Plate, Cable Stickers, Antenna, EZ Conn-Cable, EZ Front Panel Cable

Low in stock

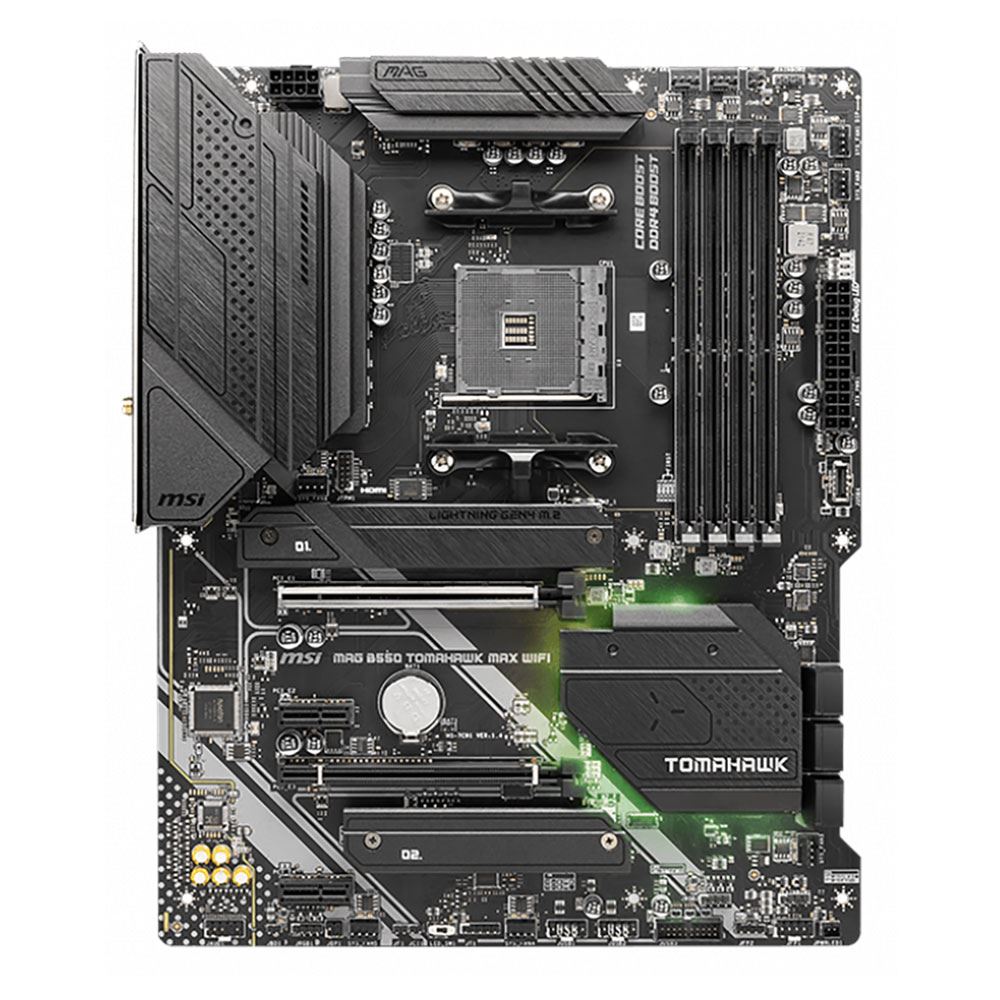

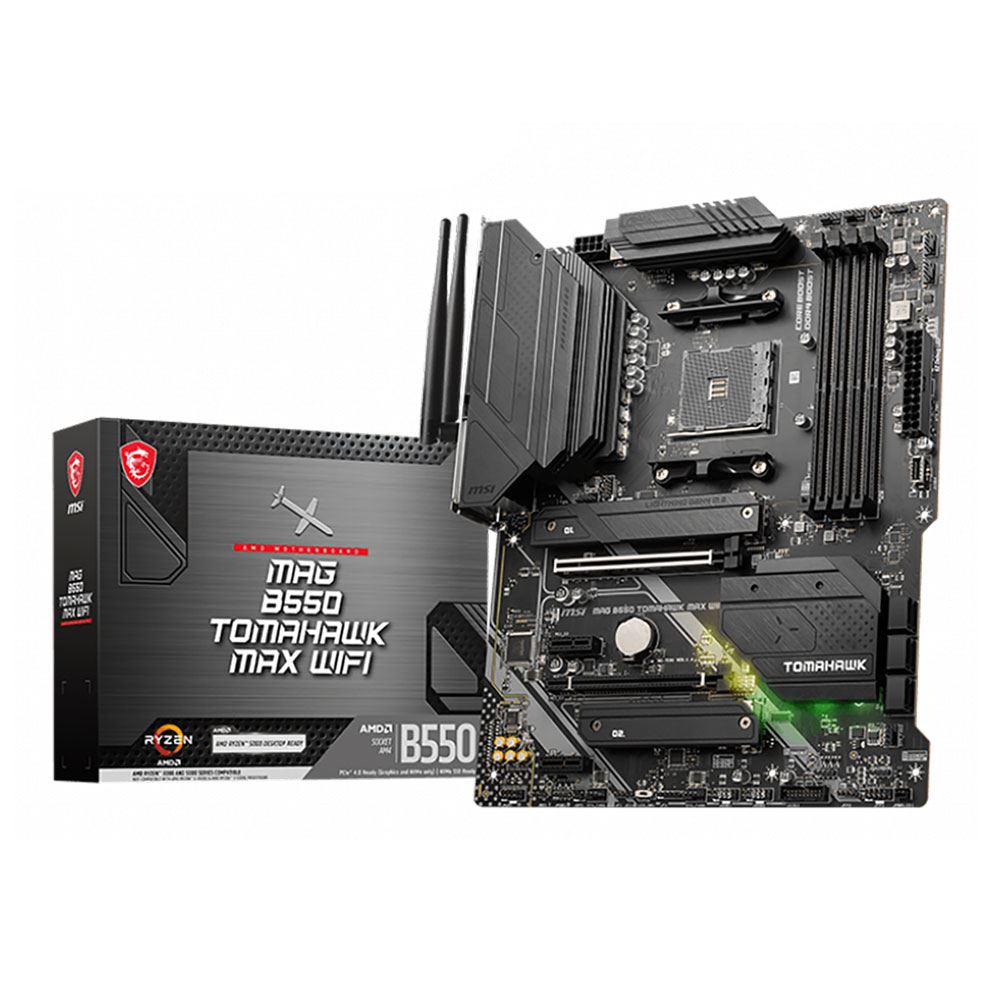

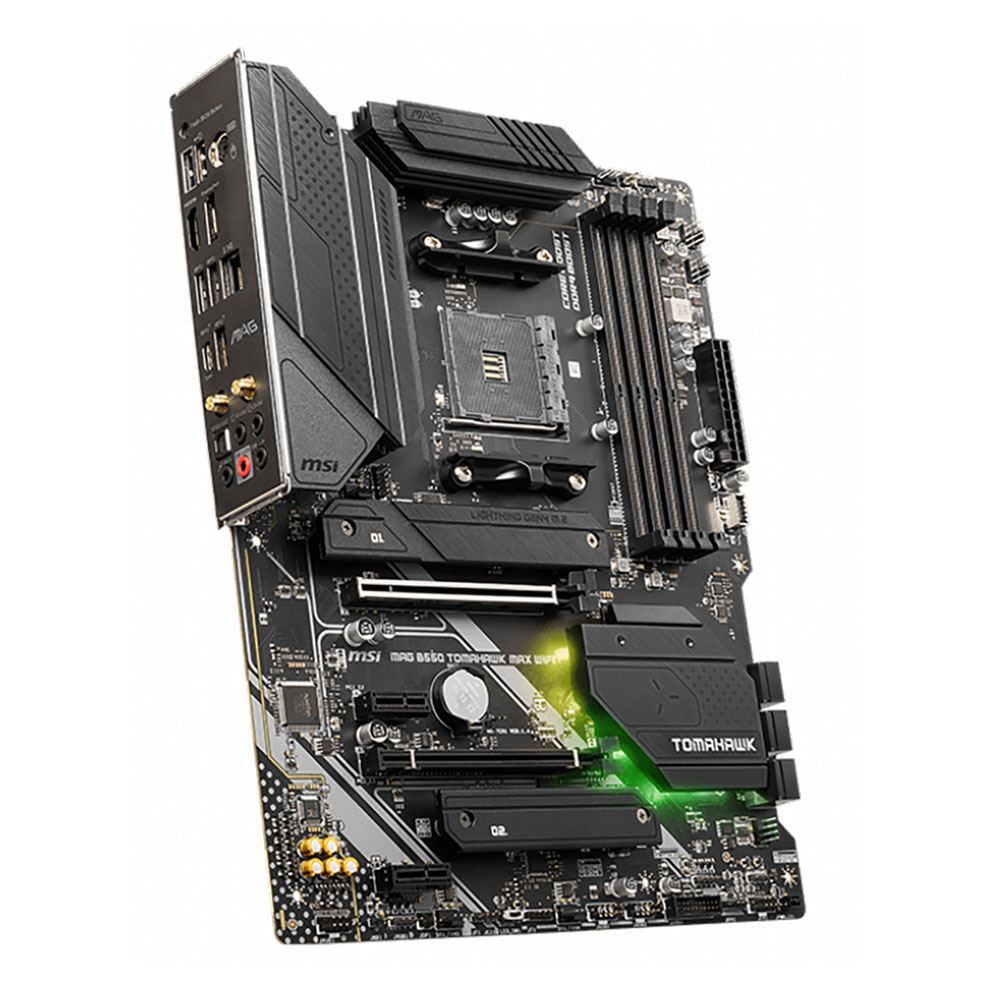

MSI B550 MAG Tomahawk Max WiFi AMD AM4 ATX Motherboard

COMPUTER BARGAIN CENTER

MSI B550 MAG Tomahawk Max WiFi AMD AM4 ATX Motherboard

(0)

$ 210.00

Key Features
AMD B550
AMD AM4 Ryzen Processors
128GB Dual Channel 4 x 288pin DIMM Support

Product Information
SKU
396952
Mfr Part#
MAGB550TOMAHAWK
UPC
824142286685
General Specifications
Packaging
Retail
Microsoft Certifications
Windows 11 Ready
Chipset
Chipset
AMD B550
CPU Support
AMD CPU Support
Ryzen
Socket Type
AM4
Memory Specifications
ECC
Non-ECC; Non-Registered
ECC; Non-Registered
Memory Type
DDR4-2133
DDR4-2400
DDR4-2666
DDR4-2933
DDR4-3200
DDR4-3000
Memory Speeds Supported
5100(OC)/ 5000(OC)/ 4866(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Memory Slots
4 x 288pin DIMM
Memory Channel Support
Dual Channel
Max Memory Supported
128GB
Maximum Memory Supported Per Slot
32GB
Supported Memory Technologies
ECC Memory Supported
Non-ECC Memory Supported
Video Specifications
Onboard Graphic Chipset
Requires CPU with Integrated Graphics
Multi-GPU Support
2-Way CrossFireX
Storage Specifications
M.2 Port Type
2242
2260
2280
22110
SATA Express
2 x M.2 Socket 3
M Key
SATA 6Gb/s
6
RAID Support
RAID 0
RAID 1
RAID 10
Audio Specifications
Audio Chipset
Realtek ALC897
Audio Channels
7.1
Networking
WiFi Support
Onboard WiFi
LAN Chipset
Realtek RTL8125B
LAN Speed
10/100/1000/2500Mbps
Wireless Technology
802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.2
Expansion Slots
PCI Express 4.0 x16
1
PCI Express 3.0 x16
1
PCI Express x1
2
Back Panel Ports
Legacy Ports
1 x PS/2
LAN Ports
1 x 10/100/1000/2500 RJ-45 LAN
Audio Ports
1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Rear Speaker
1 x 3.5 mm Subwoofer
1 x 3.5 mm Line-Out
USB 2.0
2 x USB 2.0 (Type-A)
USB 3.1
1 x USB 3.2 (Gen 2 Type-C)
1 x USB 3.2 (Gen 2 Type-A)
2 x USB 3.2 (Gen 1 Type-A)
Video Connectors
1 x HDMI 2.1
1 x DisplayPort 1.4
Specialty Ports
2 x WiFi Antenna Ports
Digital Audio
1 x Optical
Internal I/O & Connectors
Headers
1 x CPU Fan Header
1 x Water Pump Header
6 x System Fan Header
USB
2 x USB 2.0 Headers (4 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
1 x USB 3.2 Gen 1 Type-C Header (1 Port)
Power
Power Connectors
1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector
ATX Connector
24-pin ATX Power Connector
Physical Specifications
Depth
12.00 in. (305.00 mm)
Width
9.61 in. (244.00 mm)
Form Factor
ATX
Warranty
Parts
3 Years
Labor
3 Years
Package Contents
What's in the Box
Motherboard, Install Guide, SATA Cables, Antenna, Driver Disc, Stickers, Case Badge

Low in stock

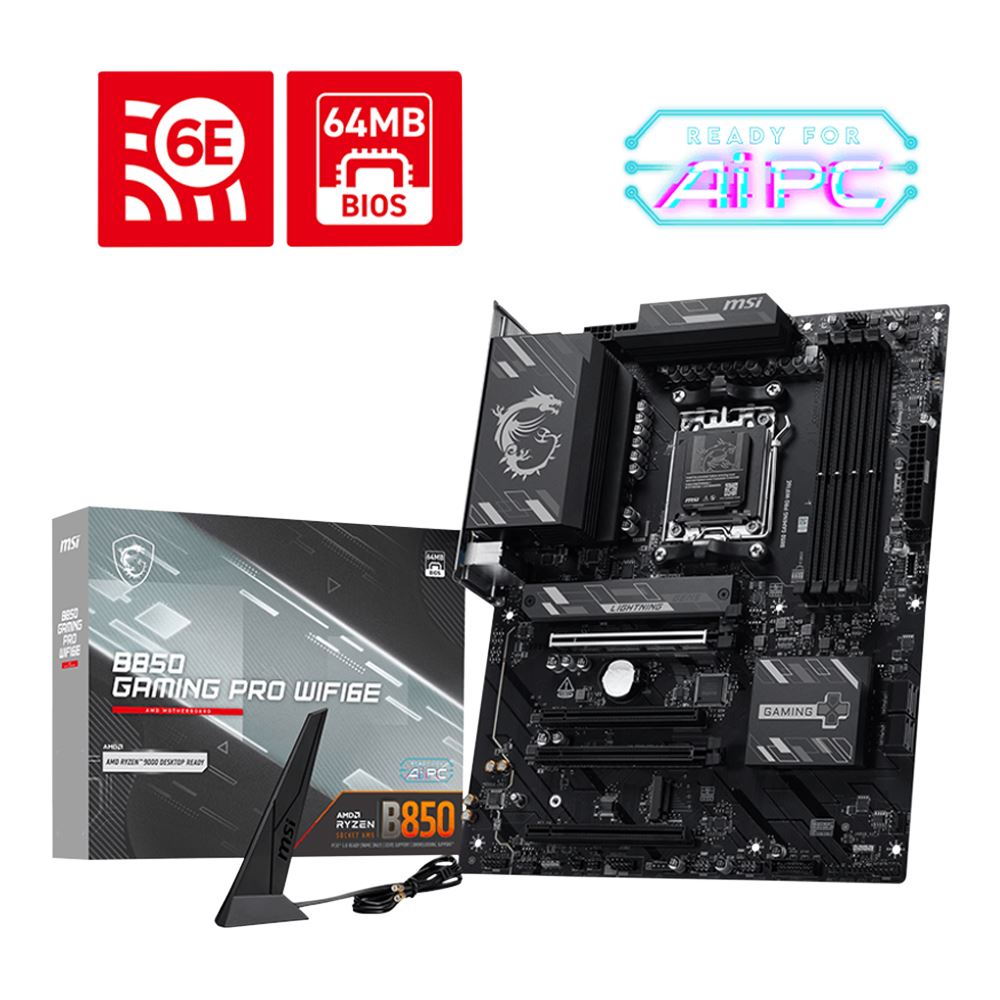

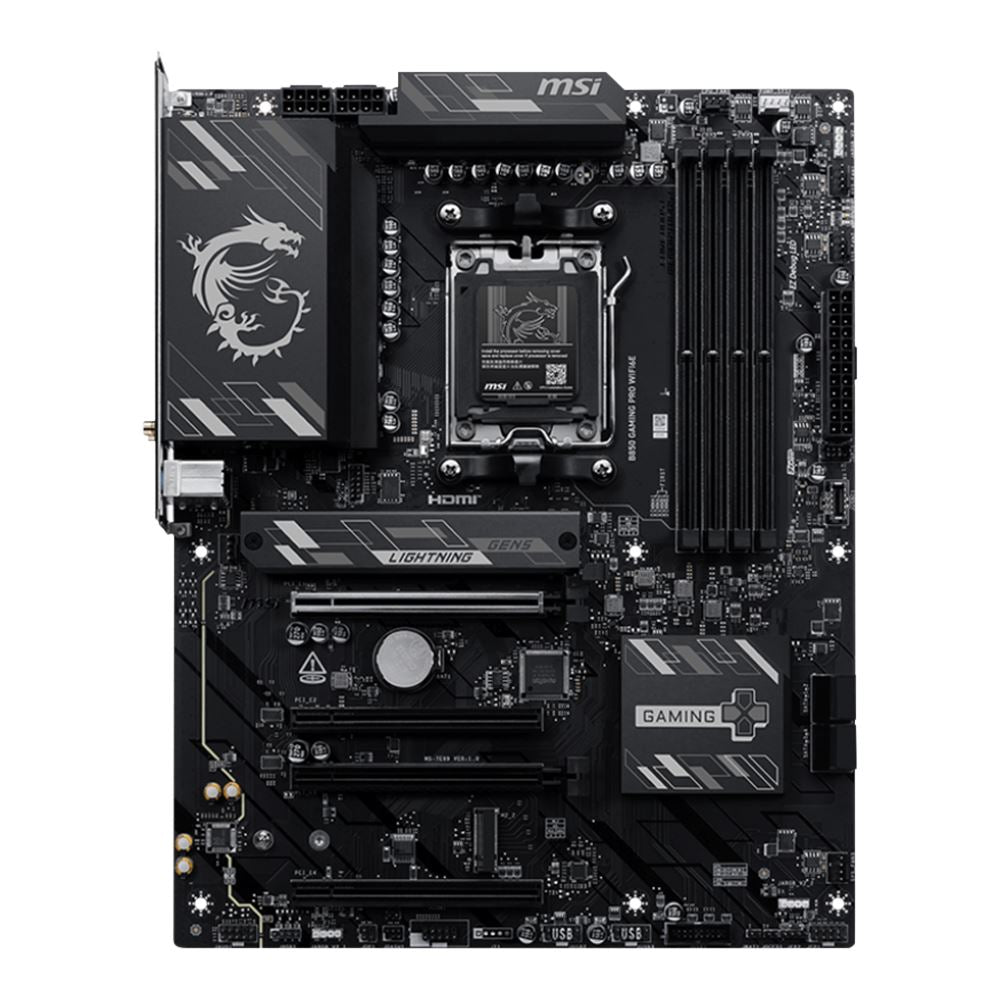

MSI B850 GAMING PRO WIFI6E AMD AM5 ATX Motherboard

COMPUTER BARGAIN CENTER

MSI B850 GAMING PRO WIFI6E AMD AM5 ATX Motherboard

(0)

$ 290.00

Low in stock

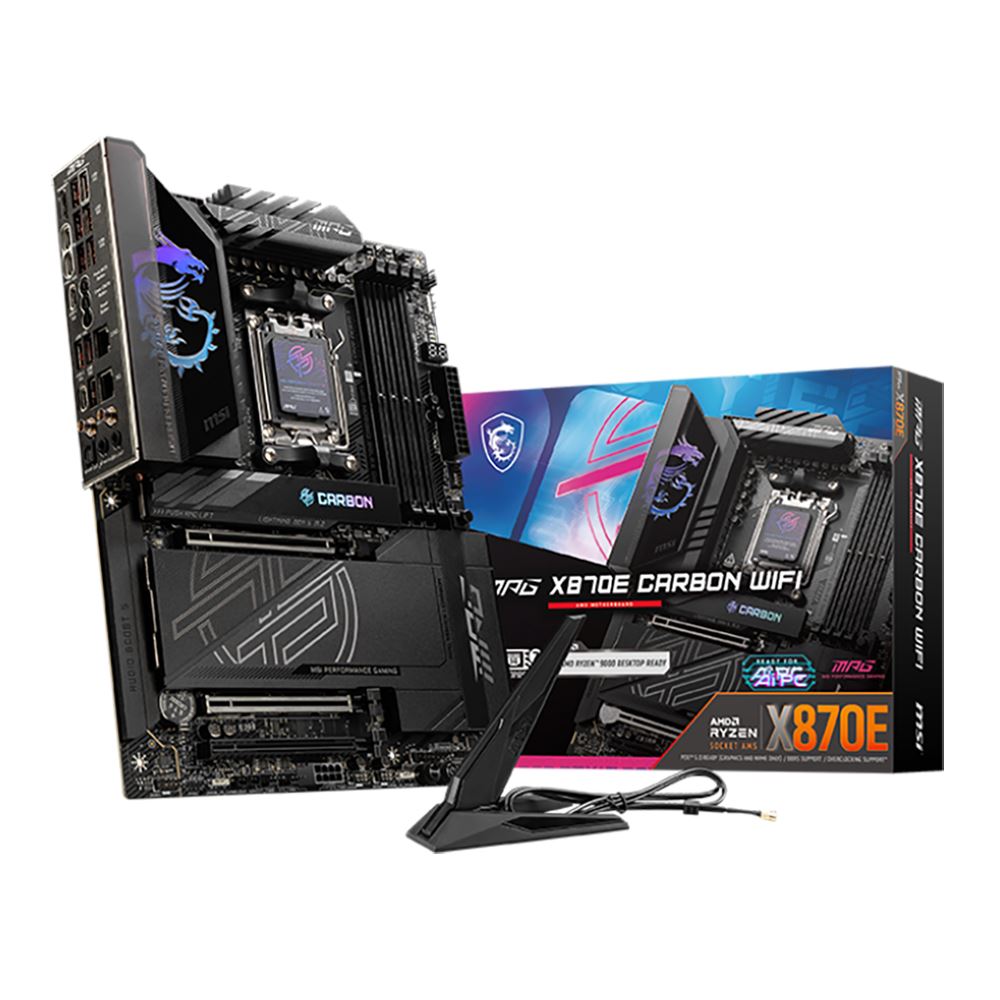

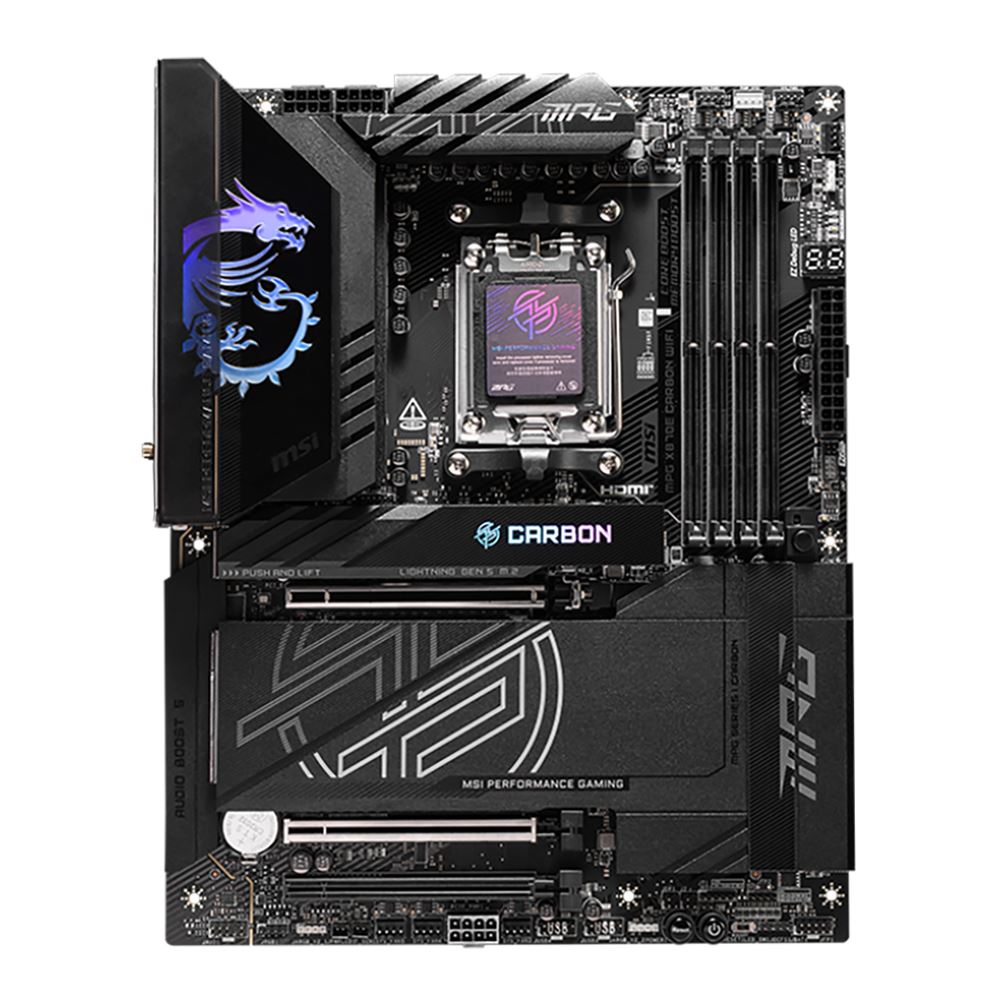

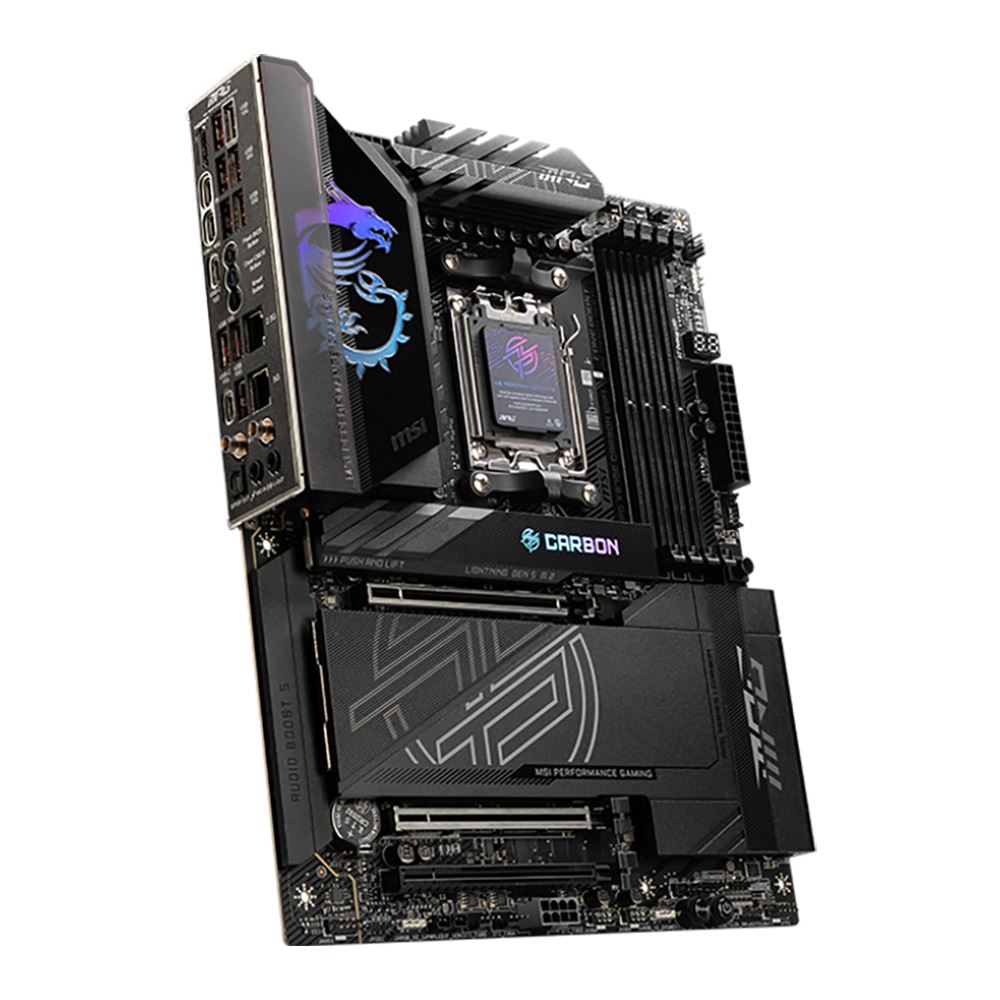

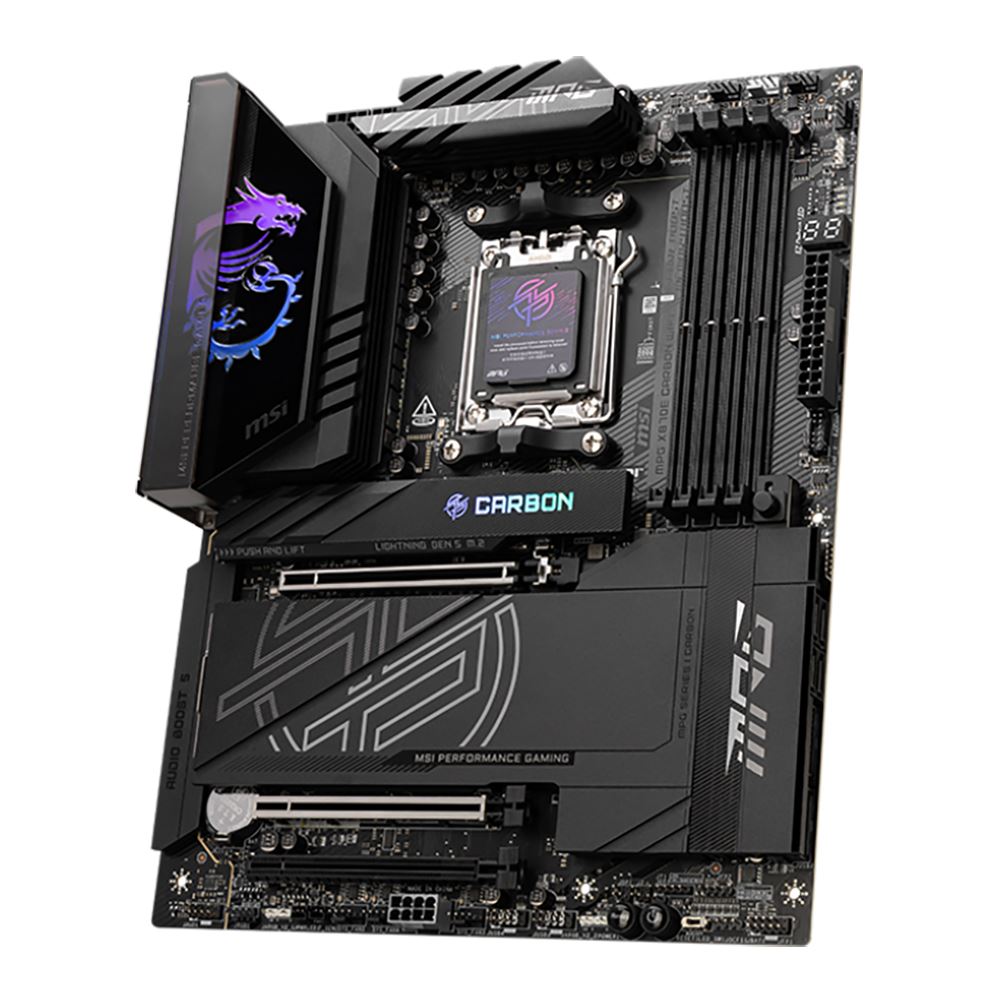

MSI X870E MPG CARBON WIFI AMD AM5 ATX Motherboard

COMPUTER BARGAIN CENTER

MSI X870E MPG CARBON WIFI AMD AM5 ATX Motherboard

(0)

$ 550.00

Key Features
AMD X870E
AMD AM5 Ryzen Processors
256GB Dual Channel 4 x 288pin DIMM Support

Specs
Product Information
SKU
755892
Mfr Part#
MPGX870ECARBWIF
UPC
824142382219
General Specifications
Packaging
Retail
Chipset
Chipset
AMD X870E
CPU Support
AMD CPU Support
Ryzen
Socket Type
AM5
Memory Specifications
ECC
Non-ECC; Non-Registered
Memory Type
DDR5-4800
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5000
Memory Speeds Supported
8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Memory Slots
4 x 288pin DIMM
Memory Channel Support
Dual Channel
Max Memory Supported
256GB
Maximum Memory Supported Per Slot
64GB
Video Specifications
Onboard Graphic Chipset
Requires CPU with Integrated Graphics
Storage Specifications
M.2 Port Type
2260
2280
22110
SATA Express
1 x M.2 Socket 3
E Key
4 x M.2 Socket 3
M Key
SATA 6Gb/s
4
RAID Support
RAID 0
RAID 1
RAID 10
Audio Specifications
Audio Chipset
Realtek ALC4080
Audio Channels
7.1
Networking
WiFi Support
M.2 Slot
LAN Chipset
Realtek 8126 5G LAN
LAN 2 Chipset
Realtek 8125 2.5G LAN
LAN Speed
100/1000/2500/5000Mbps
Wireless Technology
802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.4
WiFi 7 (802.11be)
Expansion Slots
PCI Express 4.0 x16
1
PCI Express 5.0 x16
2
Back Panel Ports
LAN Ports
1 x 10/100/1000/2500 RJ-45 LAN
1 x 100/1000/2500/5000 RJ-45 LAN
Audio Ports
1 x 3.5 mm Microphone
1 x 3.5 mm Line-Out
USB 3.1
2 x USB 3.2 (Gen 2 Type-C)
2 x USB4 (Type-C 40 Gb/s)
9 x USB 3.2 (Gen 2 Type-A)
Video Connectors
1 x HDMI 2.1
Specialty Ports
2 x WiFi Antenna Ports
Digital Audio
1 x Optical
Internal I/O & Connectors
Headers
1 x CPU Fan Header
1 x Water Pump Header
5 x System Fan Header
USB
2 x USB 2.0 Headers (4 Ports)
2 x USB 3.2 Gen 1 Type-A Headers (4 Ports)
1 x USB 3.2 Gen 2x2 Type-C Header (1 Port)
Other I/O
1 x RGB LED connector
Power
Power Connectors
1 x 24-pin ATX Connector
2 x 8-pin +12 V Connector
1 x 8-pin PCIe Power Connector
ATX Connector
24-pin ATX Power Connector
Physical Specifications
Depth
12.00 in. (305.00 mm)
Width
9.60 in. (243.84 mm)
Form Factor
ATX
Warranty
Parts
3 Years
Labor
3 Years
Package Contents
What's in the Box
Motherboard, Cable Stickers, Antenna, EZ M.2 Clip, M.2 Clip Remover, 1 to 3 EZ Conn-Cable, USB Drive, 2x SATA Cables, ARGB Extension Cable, 1 to 2 RGB Extension Cable, EZ Front Panel Cable

Out of stock

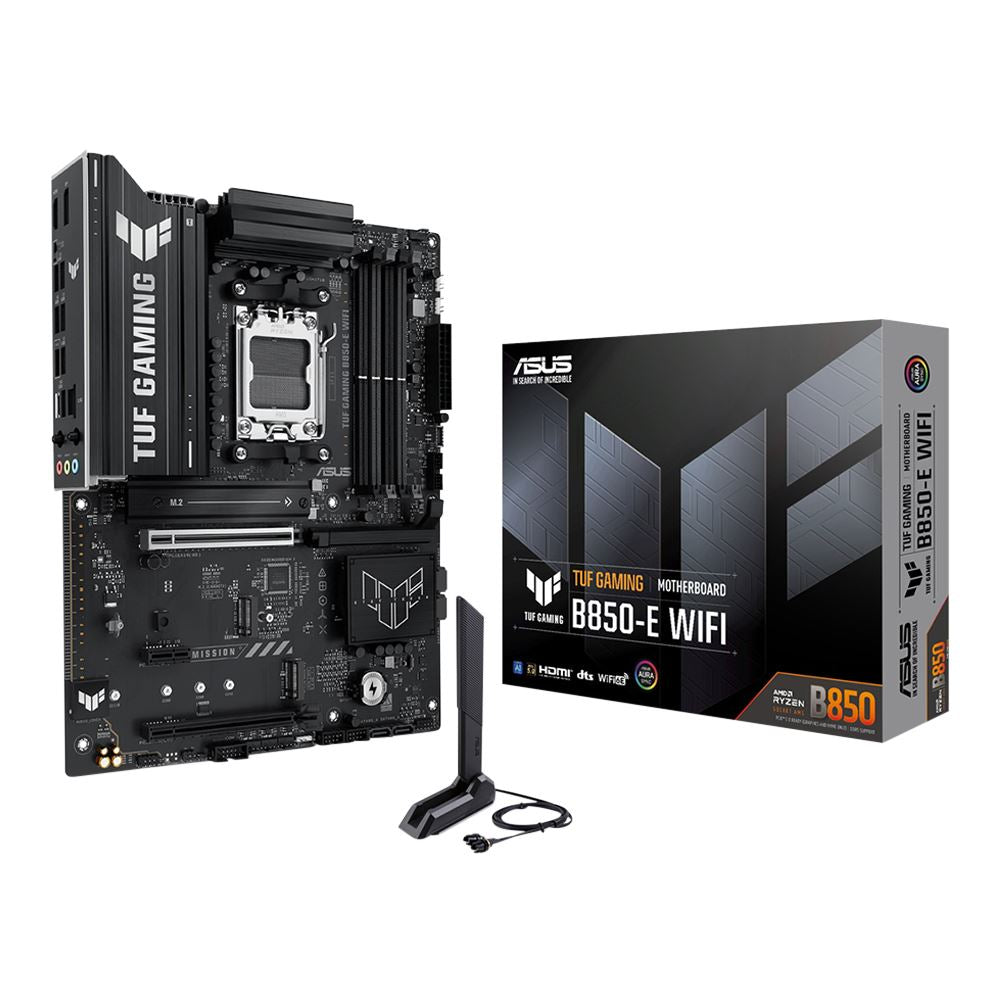

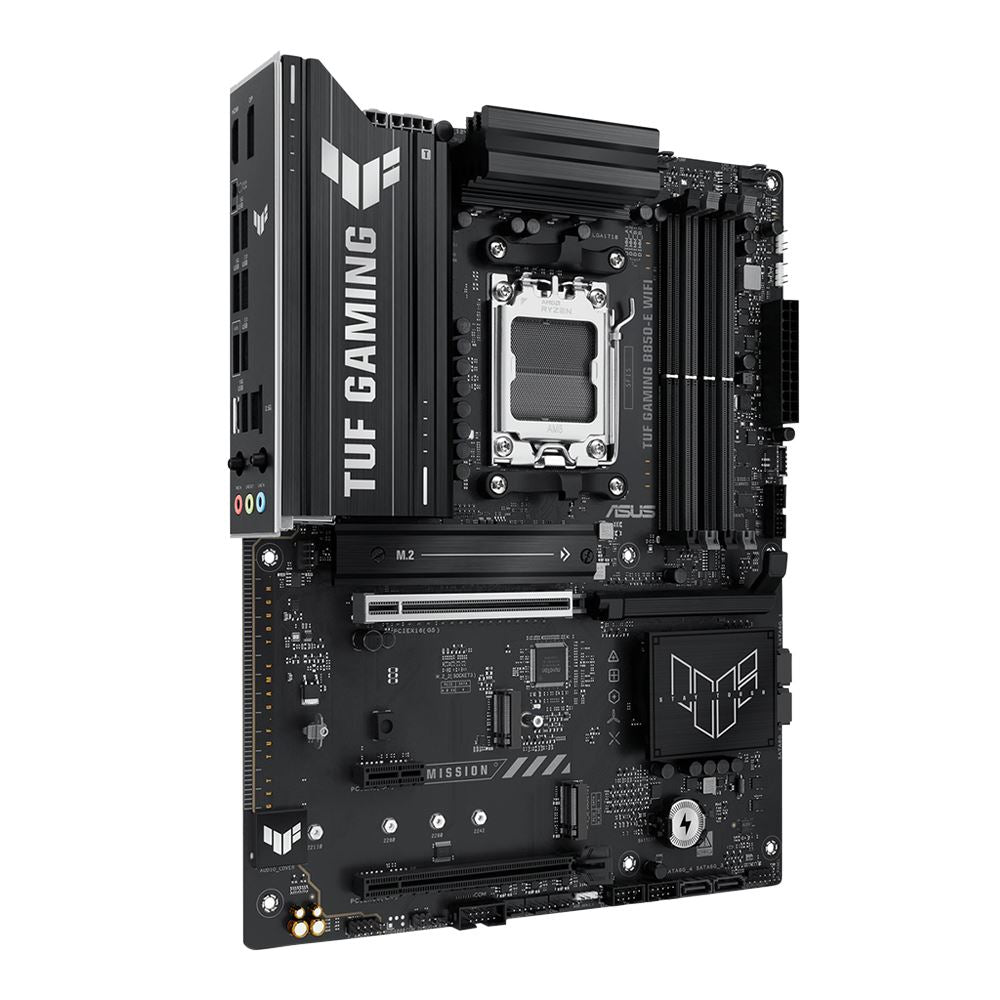

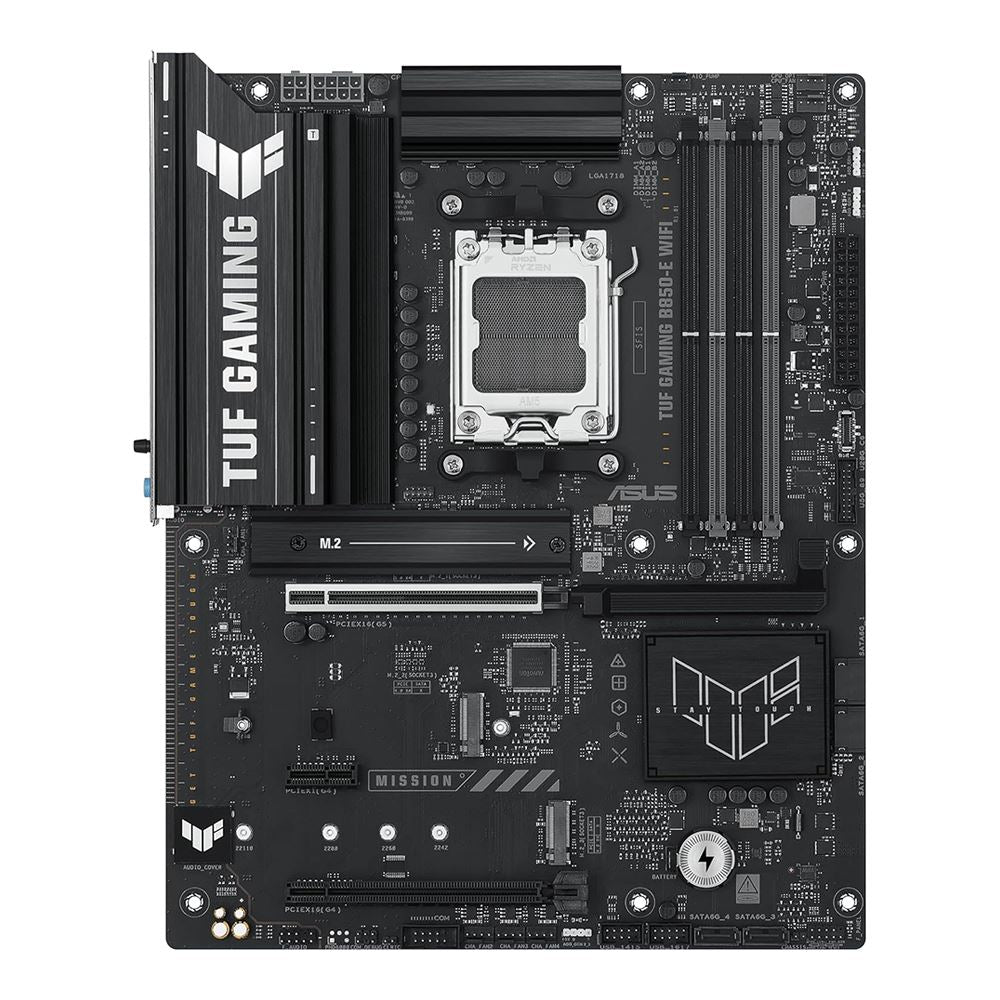

ASUS B850-E TUF GAMING WIFI AMD AM5 ATX Motherboard

COMPUTER BARGAIN CENTER

ASUS B850-E TUF GAMING WIFI AMD AM5 ATX Motherboard

(0)

$ 245.00

Key Features
AMD B850
AMD AM5 Ryzen Processors
256GB Dual Channel 4 x 288pin DIMM Support

Specs
Product Information
SKU
906792
Mfr Part#
90MB1L20-MVAAY0
UPC
197105987548
General Specifications
Packaging
Retail
Chipset
Chipset
AMD B850
BIOS
256Mb AMI UEFI Bios
Manageability
WOL
PXE
CPU Support
AMD CPU Support
Ryzen
Socket Type
AM5
Memory Specifications
ECC
Non-ECC; Non-Registered
ECC; Non-Registered
Memory Type
DDR5-4800
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-4400
DDR5-5000
DDR5-5800
Memory Speeds Supported
8000+ MHz (OC)
Memory Slots
4 x 288pin DIMM
Memory Channel Support
Dual Channel
Max Memory Supported
256GB
Maximum Memory Supported Per Slot
64GB
Video Specifications
Onboard Graphic Chipset
Requires CPU with Integrated Graphics
Storage Specifications
M.2 Port Type
2242
2260
2280
22110
SATA Express
3 x M.2 Socket 3
M Key
SATA 6Gb/s
4
RAID Support
RAID 0
RAID 1
RAID 5
RAID 10
Audio Specifications
Audio Channels
7.1
Networking
WiFi Support
Onboard WiFi
LAN Speed
10/100/1000/2500Mbps
Wireless Technology
802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.3
Expansion Slots
PCI Express 4.0 x16
1
PCI Express 5.0 x16
1
PCI Express x1
1

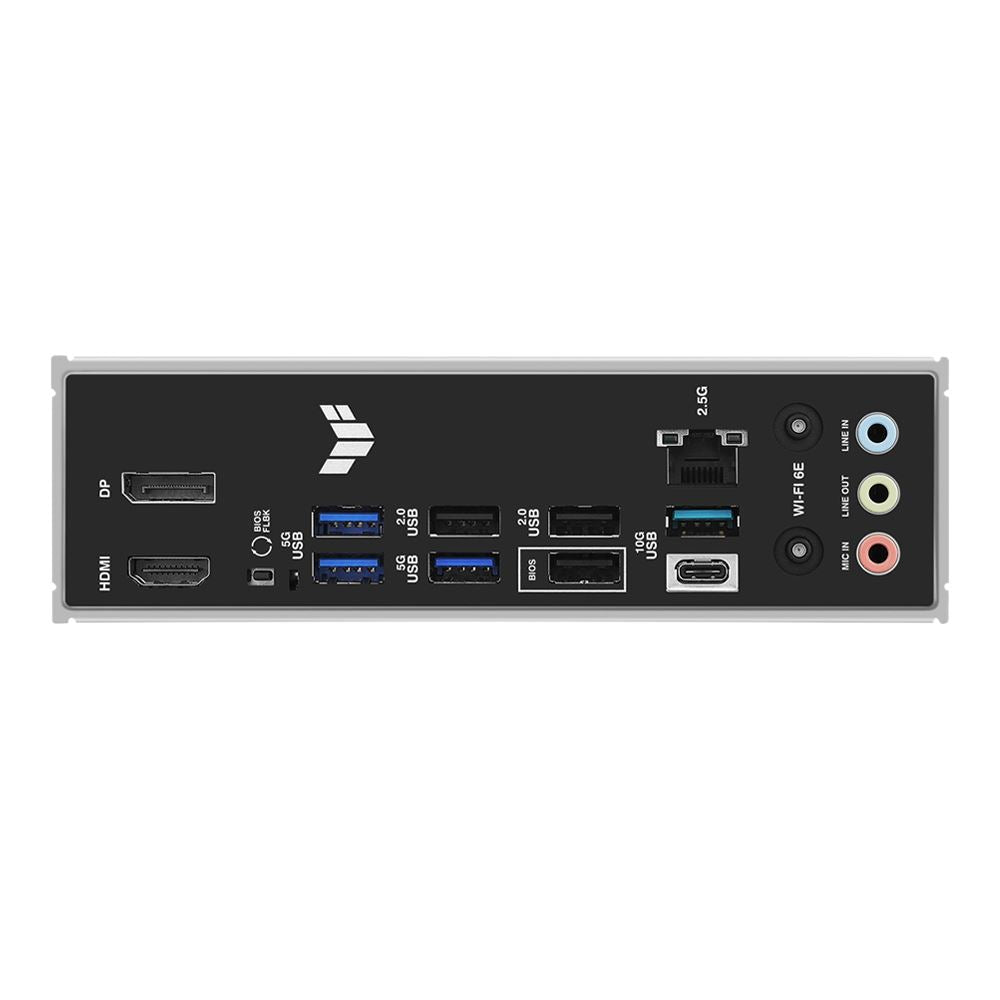

Back Panel Ports
LAN Ports
1 x 10/100/1000/2500 RJ-45 LAN
Audio Ports
1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Line-Out
Specialty Ports
2 x WiFi Antenna Ports
USB 2.0
3 x USB 2.0 (Type-A)
USB 3.1
1 x USB 3.2 (Gen 2 Type-C)
1 x USB 3.2 (Gen 2 Type-A)
Video Connectors
1 x HDMI 2.1
1 x DisplayPort 1.4
Internal I/O & Connectors
Headers
4 x System Fan Header
1 x Water Pump Header
2 x CPU Fan Header
USB
2 x USB 2.0 Headers (4 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
1 x USB 3.2 Gen 2x2 Type-C Header (1 Port)
Other I/O
3 x Addressable LED Headers
Power
Power Connectors
1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector
1 x 4-pin +12 V Connector
ATX Connector
24-pin ATX Power Connector
Physical Specifications
Depth
12.00 in. (304.80 mm)
Width
9.61 in. (244.00 mm)
Form Factor
ATX
Warranty
Parts
3 Years Limited
Labor
3 Years Limited
Package Contents
What's in the Box
Motherboard, 2x SATA Cables, Antenna, Stickers, M.2 Rubber Packages, M.2 Screws

Low in stock

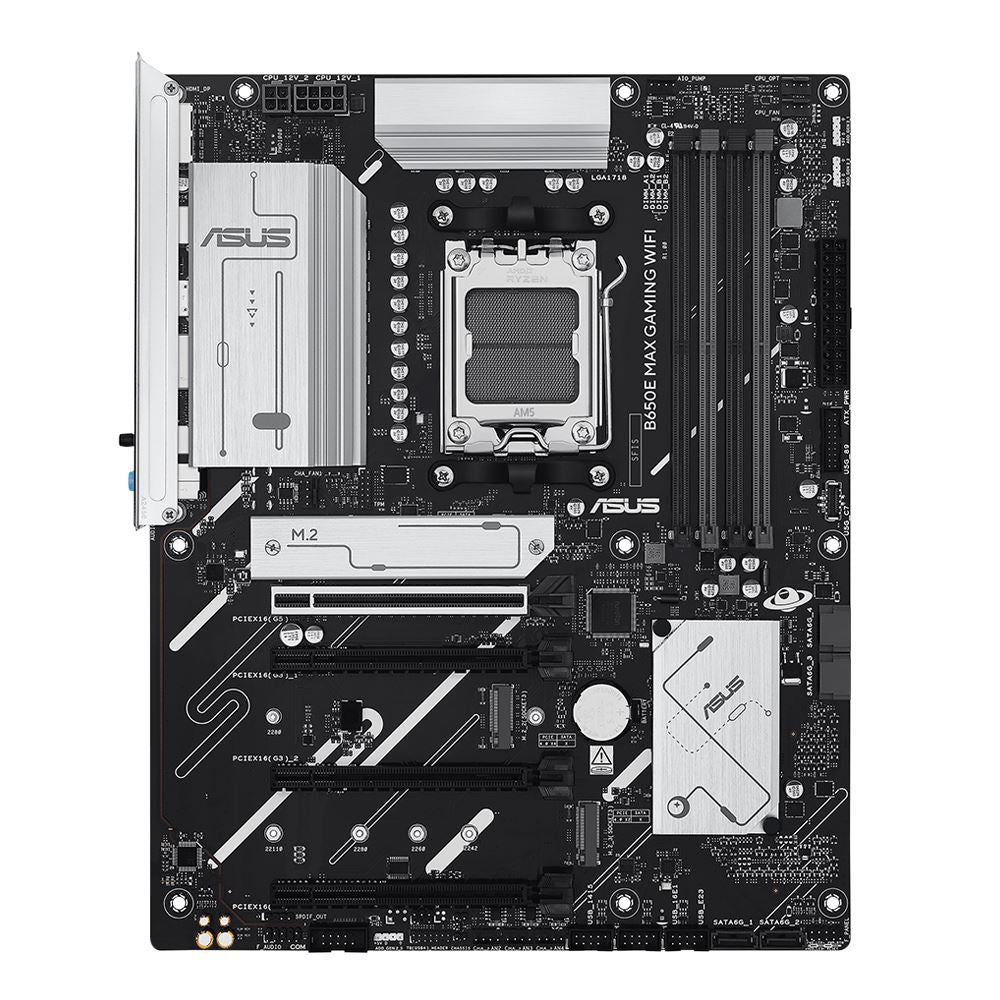

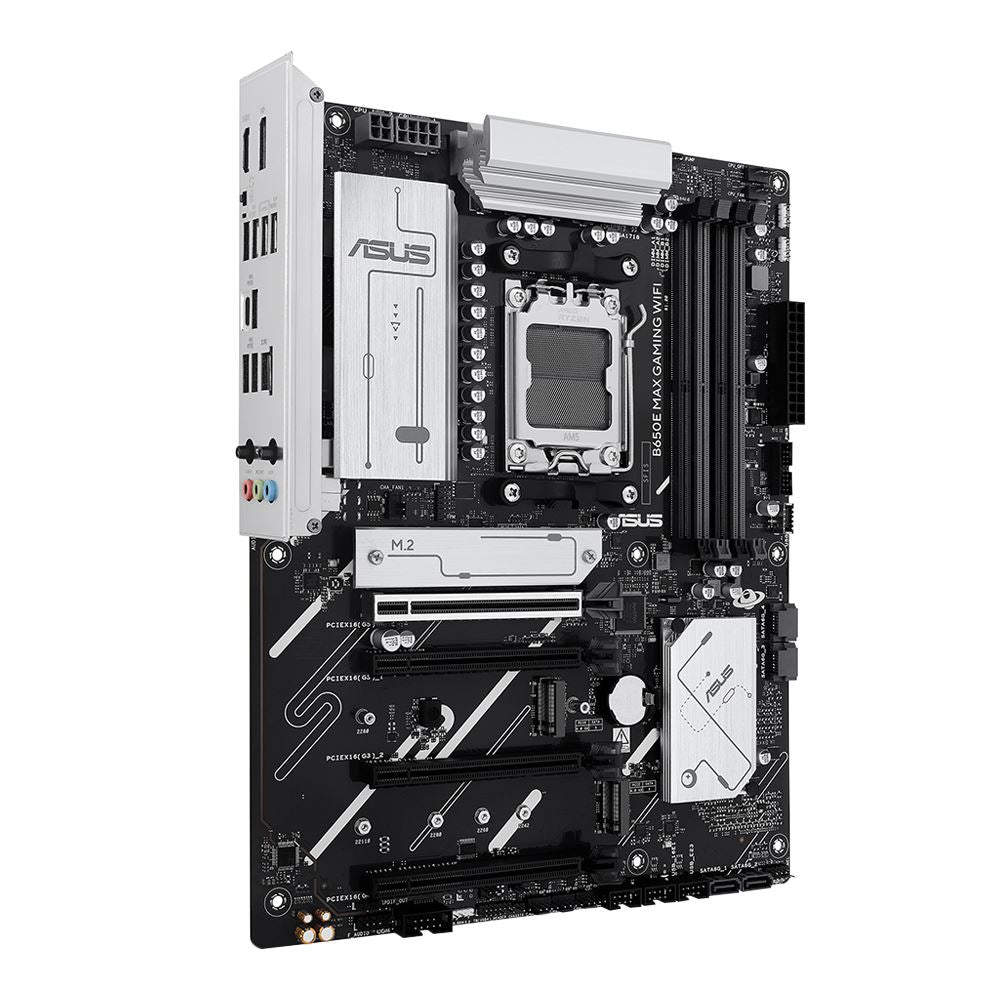

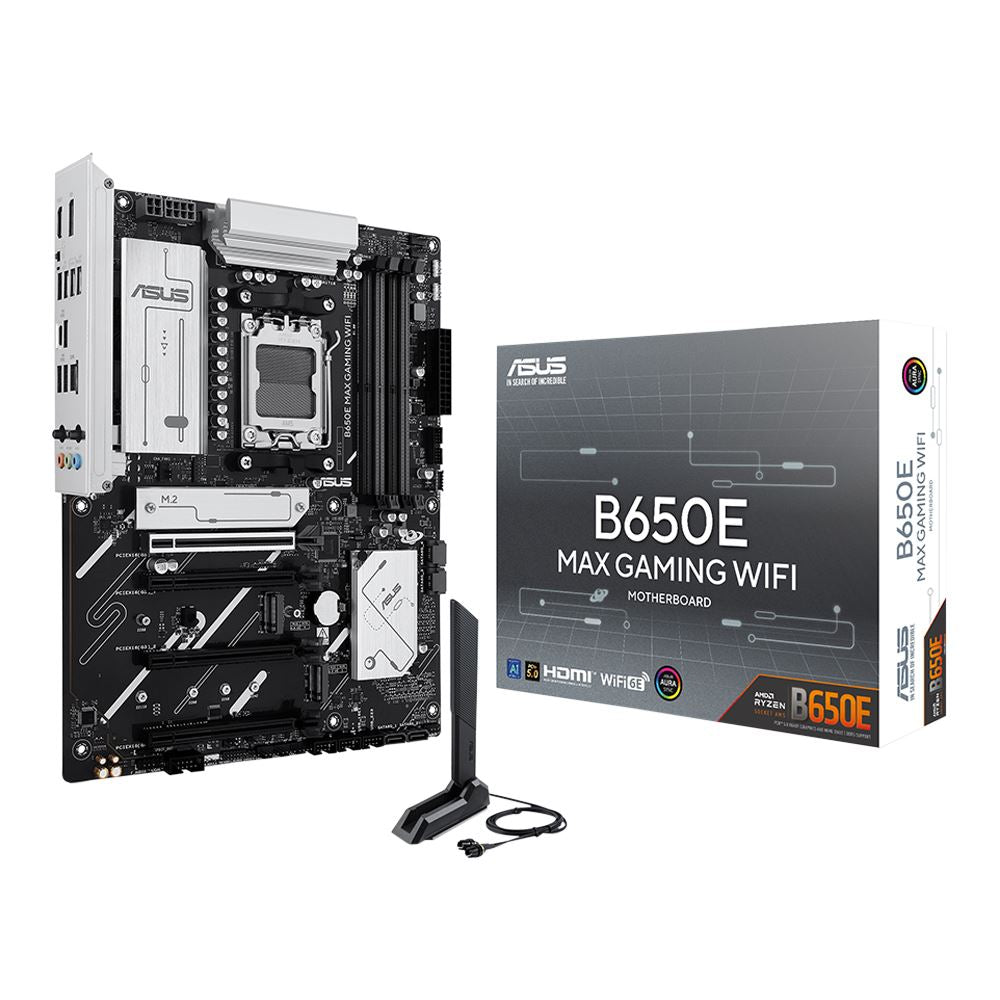

ASUS B650E MAX GAMING WIFI AMD AM5 ATX Motherboard

COMPUTER BARGAIN CENTER

ASUS B650E MAX GAMING WIFI AMD AM5 ATX Motherboard

(0)

$ 250.00

Key Features
AMD B650E
AMD AM5 Ryzen Processors
256GB Dual Channel 4 x 288pin DIMM Support

Product Information
SKU
863936
Mfr Part#
B65EMAXGMWF
UPC
197105932449
General Specifications
Packaging
Retail
Chipset
Chipset
AMD B650E
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL
PXE
CPU Support
AMD CPU Support
Ryzen
Socket Type
AM5
Memory Specifications
ECC
Non-ECC; Non-Registered
Memory Type
DDR5-4800
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5000
DDR5-5800
Memory Speeds Supported
8000+ MHz (OC)
Memory Slots
4 x 288pin DIMM
Memory Channel Support
Dual Channel
Max Memory Supported
256GB
Maximum Memory Supported Per Slot
64GB
Video Specifications
Onboard Graphic Chipset
Requires CPU with Integrated Graphics
Storage Specifications
M.2 Port Type
2242
2260
2280
22110
SATA Express
3 x M.2 Socket 3
M Key
SATA 6Gb/s
4
RAID Support
RAID 0
RAID 1
RAID 5
RAID 10
Audio Specifications
Audio Channels
7.1
Networking
WiFi Support
Onboard WiFi
LAN Chipset
Realtek 2.5Gb Ethernet
LAN Speed
10/100/1000/2500Mbps
Wireless Technology
802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.3
WiFi 6E (802.11ax)
Expansion Slots
PCI Express 4.0 x16
1
PCI Express 5.0 x16
1
PCI Express 3.0 x16
2

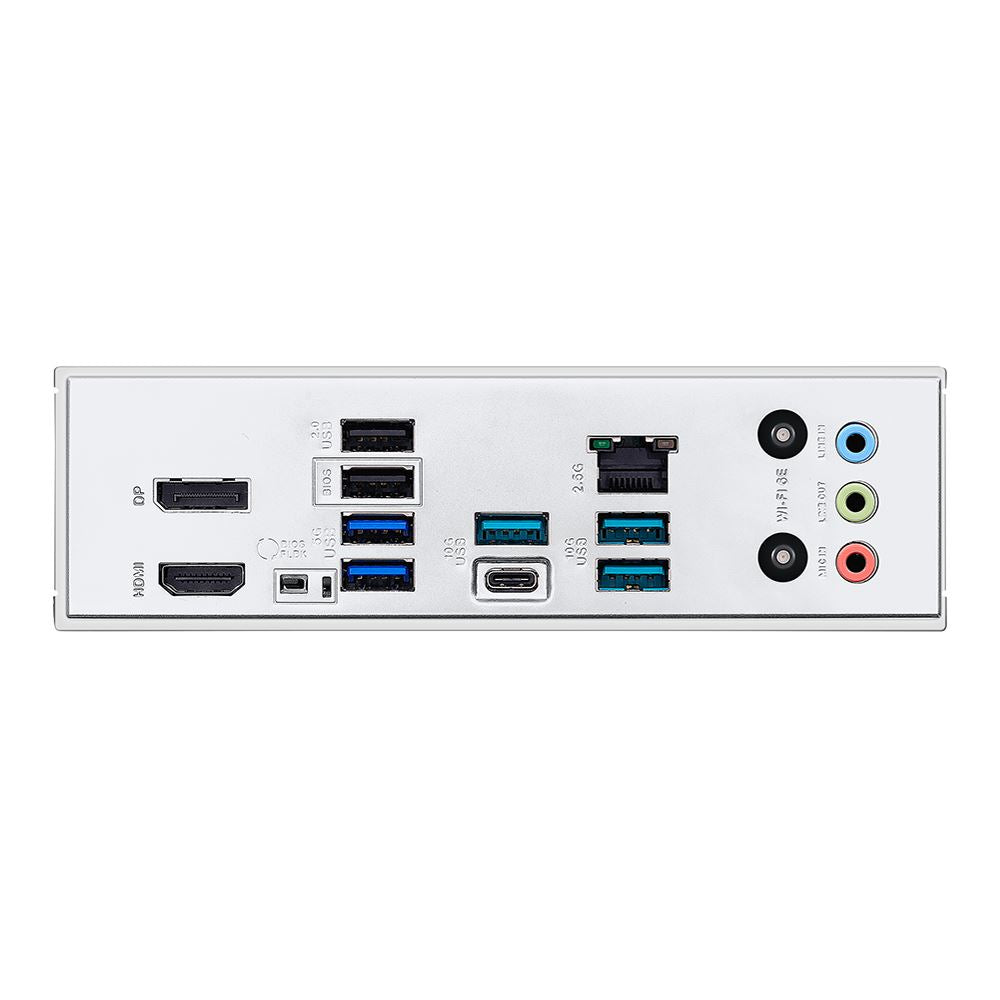

Back Panel Ports
LAN Ports
1 x 10/100/1000/2500 RJ-45 LAN
Audio Ports
1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Line-Out
Specialty Ports
2 x WiFi Antenna Ports
USB 2.0
2 x USB 2.0 (Type-A)
USB 3.1
1 x USB 3.2 (Gen 2 Type-C)
2 x USB 3.2 (Gen 1 Type-A)
3 x USB 3.2 (Gen 2 Type-A)
Video Connectors
1 x HDMI 2.1
1 x DisplayPort 1.4
Internal I/O & Connectors
Headers
4 x System Fan Header
1 x Water Pump Header
2 x CPU Fan Header
USB
3 x USB 2.0 Headers (6 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
1 x USB 3.2 Gen 1 Type-C Header (1 Port)
Other I/O
3 x Addressable LED Headers
Power
Power Connectors
1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector
1 x 4-pin +12 V Connector
ATX Connector
24-pin ATX Power Connector
Physical Specifications
Depth
12.00 in. (304.80 mm)
Width
9.61 in. (244.00 mm)
Form Factor
ATX
Warranty
Parts
3 Years
Labor
3 Years
Package Contents
What's in the Box
Motherboard, 2x SATA Cables, Antenna, M.2 Rubber Package, M.2 Screws

Low in stock

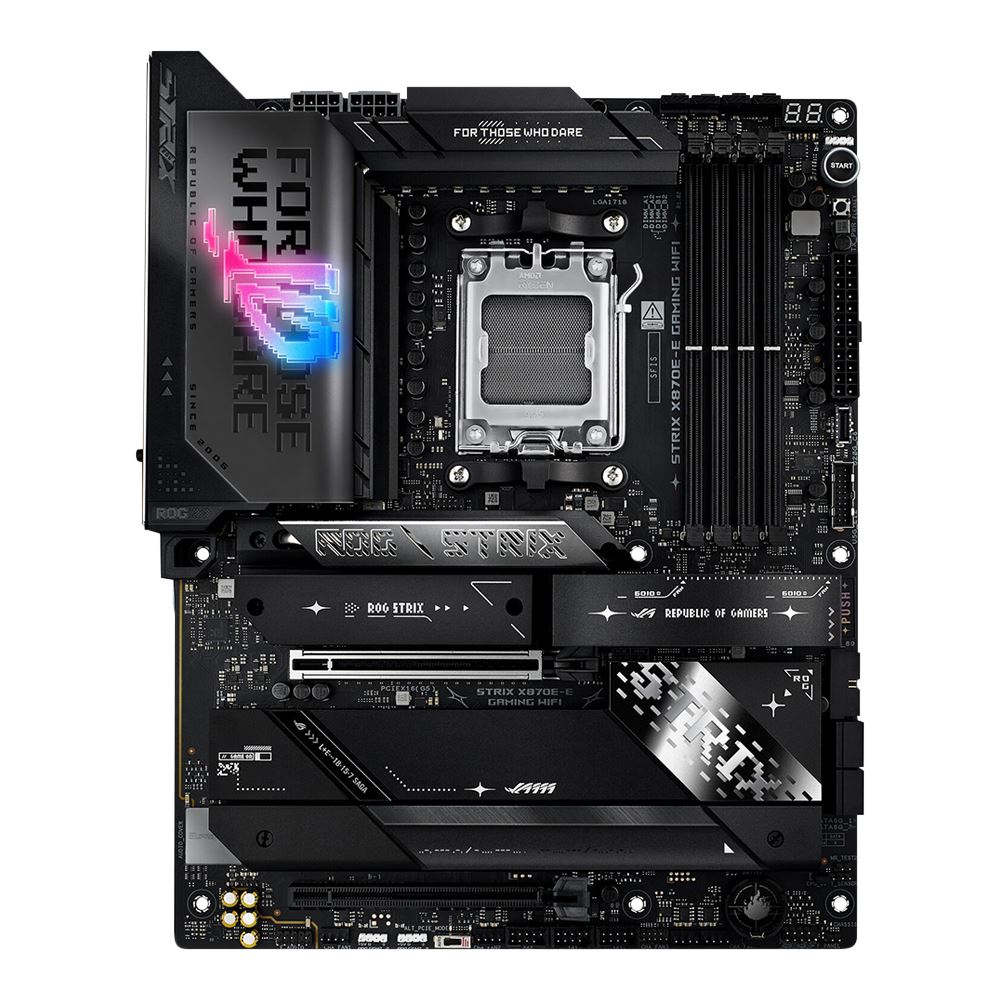

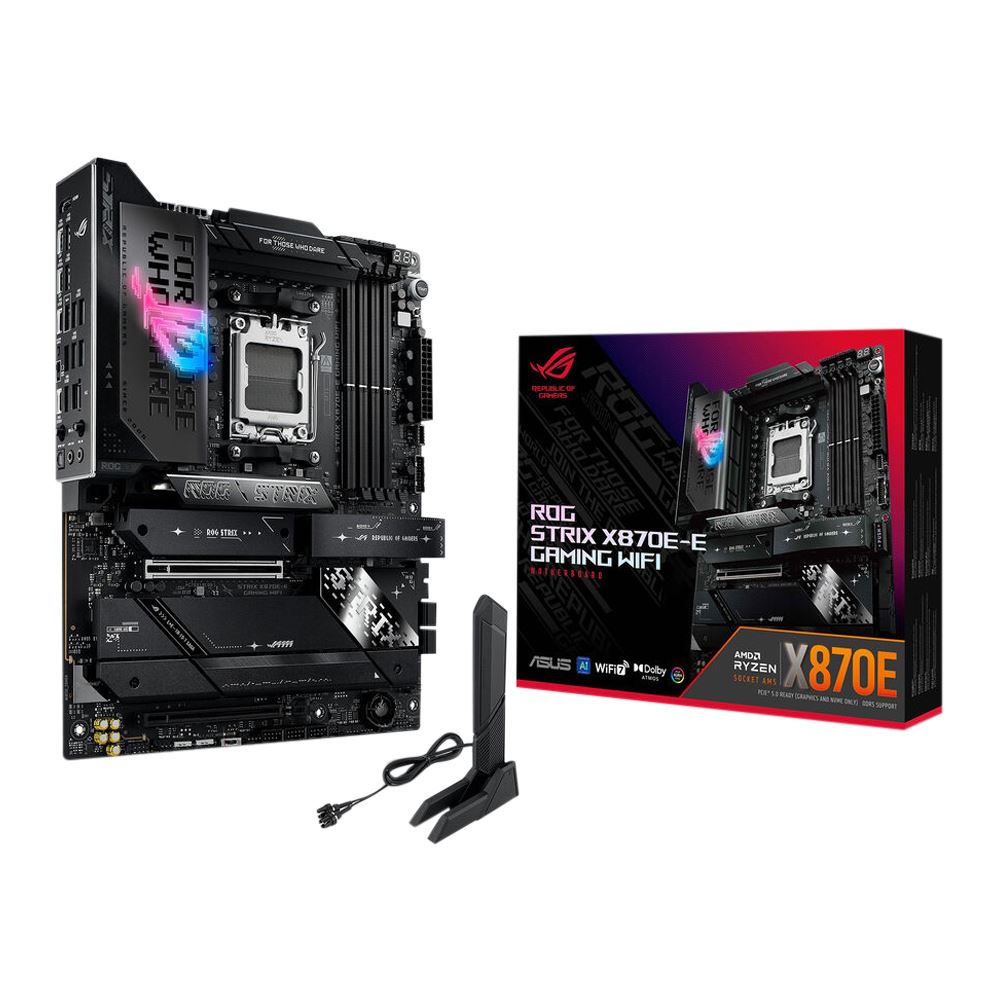

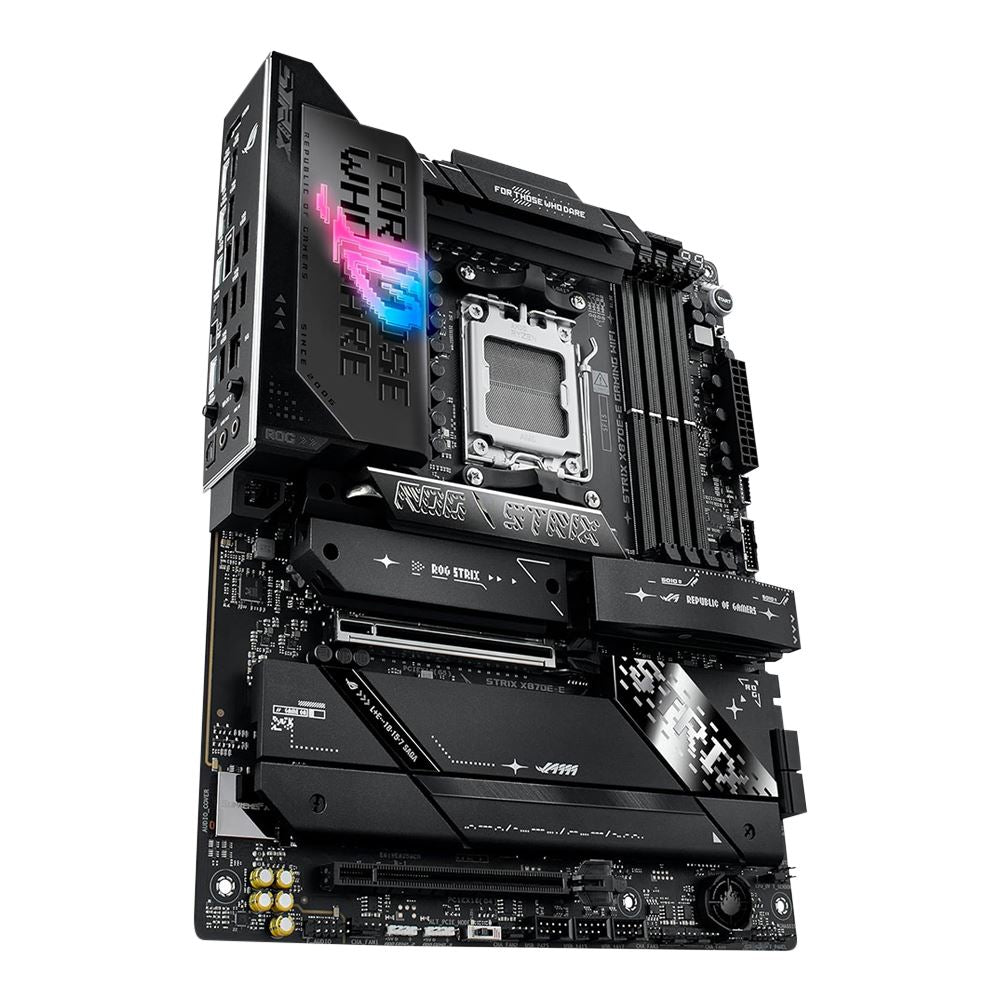

ASUS X870E-E ROG Strix Gaming R2/USBC WiFi AMD AM5 ATX Motherboard

COMPUTER BARGAIN CENTER

ASUS X870E-E ROG Strix Gaming R2/USBC WiFi AMD AM5 ATX Motherboard

(0)

$ 650.00

Key Features
AMD X870E
AMD AM5 Ryzen Processors
256GB Dual Channel 4 x 288pin DIMM Support

Product Information
SKU
928416
Mfr Part#
X870EEWFR2UBC
UPC
199291272057
General Specifications
Packaging
Retail
Chipset
Chipset
AMD X870E
BIOS
256Mb AMI UEFI Bios
Manageability
WOL
PXE
CPU Support
AMD CPU Support
Ryzen
Socket Type
AM5
Memory Specifications
ECC
Non-ECC; Non-Registered
ECC; Non-Registered
Memory Type
DDR5-4800
DDR5-5200
DDR5-5400
DDR5-4400
DDR5-5000
DDR5-6000
DDR5-5800
Memory Speeds Supported
8000+ MHz (OC)
Memory Slots
4 x 288pin DIMM
Memory Channel Support
Dual Channel
Max Memory Supported
256GB
Maximum Memory Supported Per Slot
64GB
Video Specifications
Onboard Graphic Chipset
Requires CPU with Integrated Graphics
Storage Specifications
M.2 Port Type
2242
2260
2280
22110
SATA Express
5 x M.2 Socket 3
M key
SATA 6Gb/s
4
RAID Support
RAID 0
RAID 1
RAID 5
RAID 10
Audio Specifications
Audio Chipset
ROG SupremeFX ALC4080
Audio Channels
7.1
Networking
WiFi Support
Onboard WiFi
LAN Chipset
Realtek 5Gb Ethernet
LAN Speed
100/1000/2500/5000Mbps
Wireless Technology
802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.4
WiFi 7 (802.11be)
Expansion Slots
PCI Express 4.0 x16
1
PCI Express 5.0 x16
1

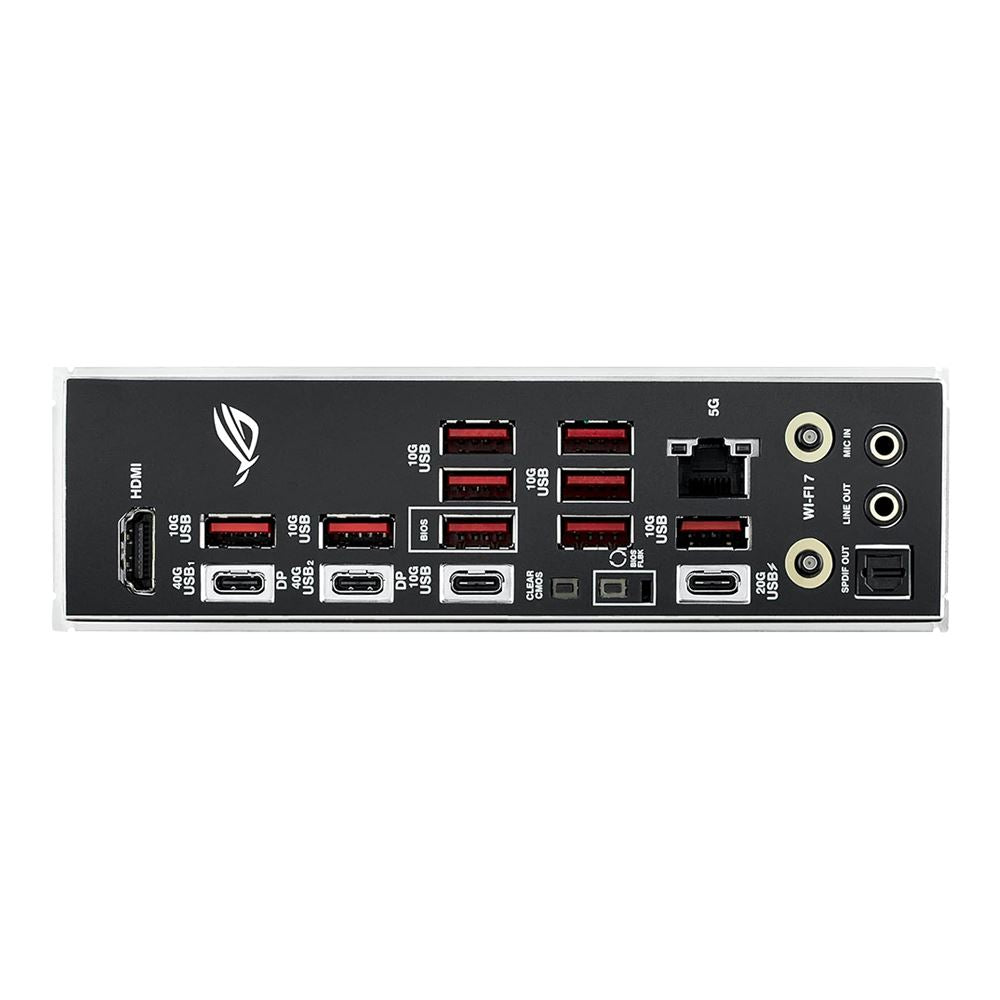

Back Panel Ports
LAN Ports
1 x 100/1000/2500/5000 RJ-45 LAN
Audio Ports
1 x 3.5 mm Line-In
1 x 3.5 mm Line-Out
Specialty Ports
2 x WiFi Antenna Ports
USB 3.1
1 x USB 3.2 (Gen 2 Type-C)
1 x USB 3.2 (Gen 2x2 Type-C)
2 x USB4 (Type-C 40 Gb/s)
9 x USB 3.2 (Gen 2 Type-A)
Video Connectors
1 x HDMI 2.1
Digital Audio
1 x Optical
Internal I/O & Connectors
Headers
1 x Water Pump Header
2 x CPU Fan Header
5 x System Fan Header
USB
3 x USB 2.0 Headers (6 Ports)
2 x USB 3.2 Gen 1 Type-A Headers (4 Ports)
1 x USB 3.2 Gen 2x2 Type-C Header (1 Port)
Other I/O
3 x Addressable LED Headers
Power
Power Connectors
1 x 24-pin ATX Connector
2 x 8-pin +12 V Connector
ATX Connector
24-pin ATX Power Connector
Physical Specifications
Depth
12.00 in. (304.80 mm)
Width
9.61 in. (244.00 mm)
Form Factor
ATX
Warranty
Parts
3 Years Limited
Labor
3 Years Limited
Package Contents
What's in the Box
Motherboard, 2x SATA Cables, Thermal Pad for M.2, Antennas, Cable Ties, M.2 Q-Latch and Slides, ROG Key Chain, ROG Strix Stickers, 5x M.2 Rubbers, PCIe to Front USB Type-C Card

Out of stock

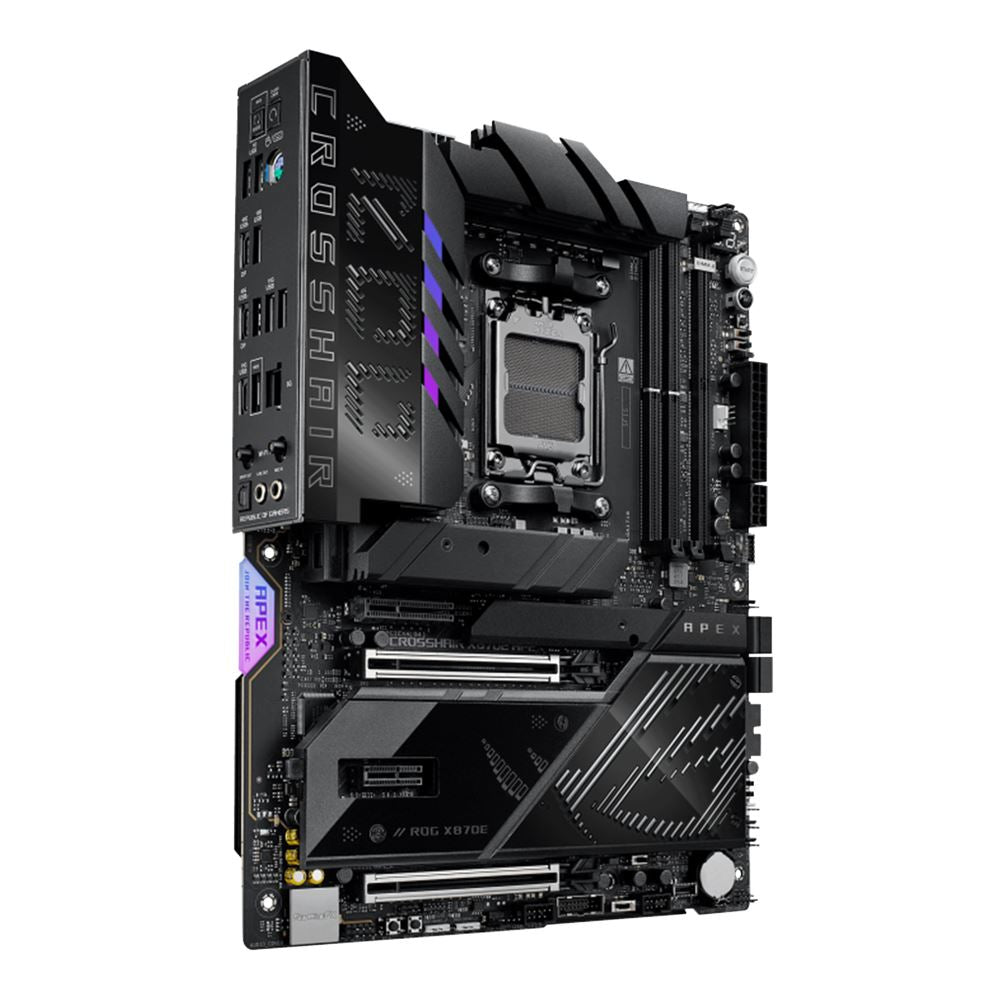

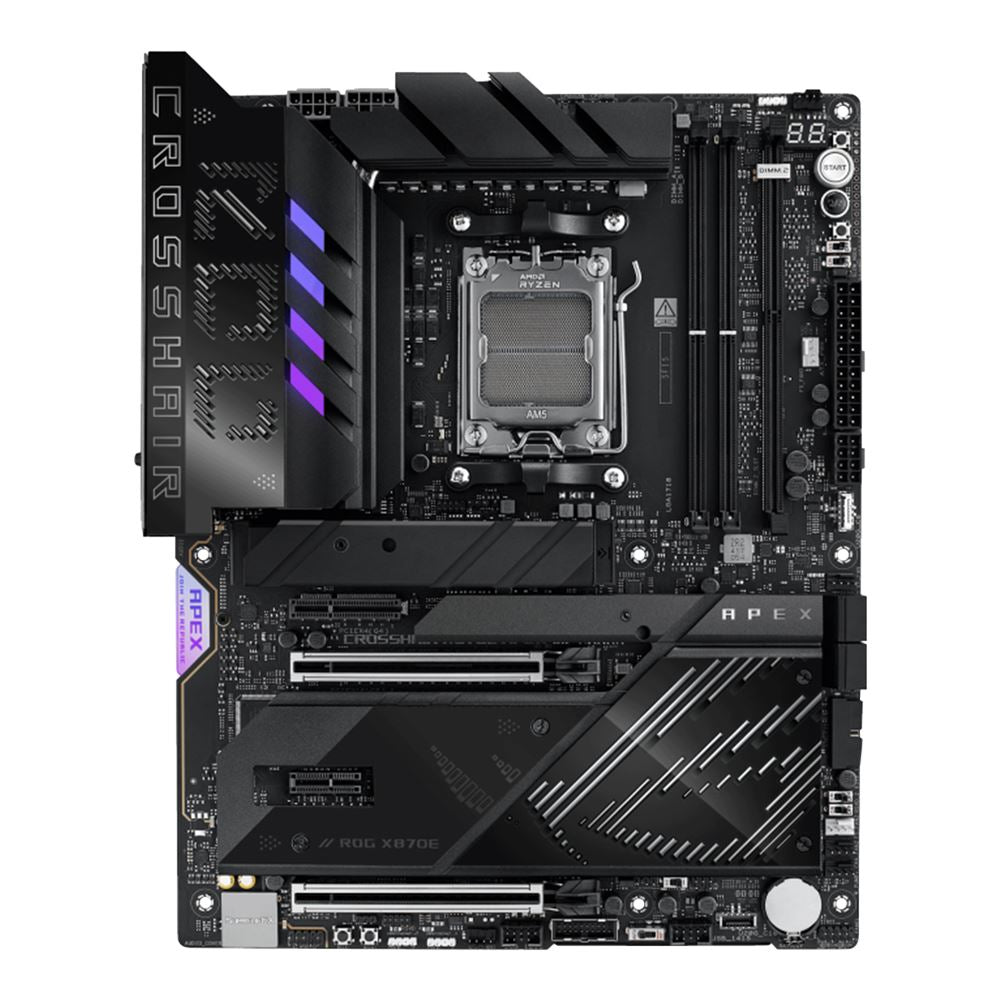

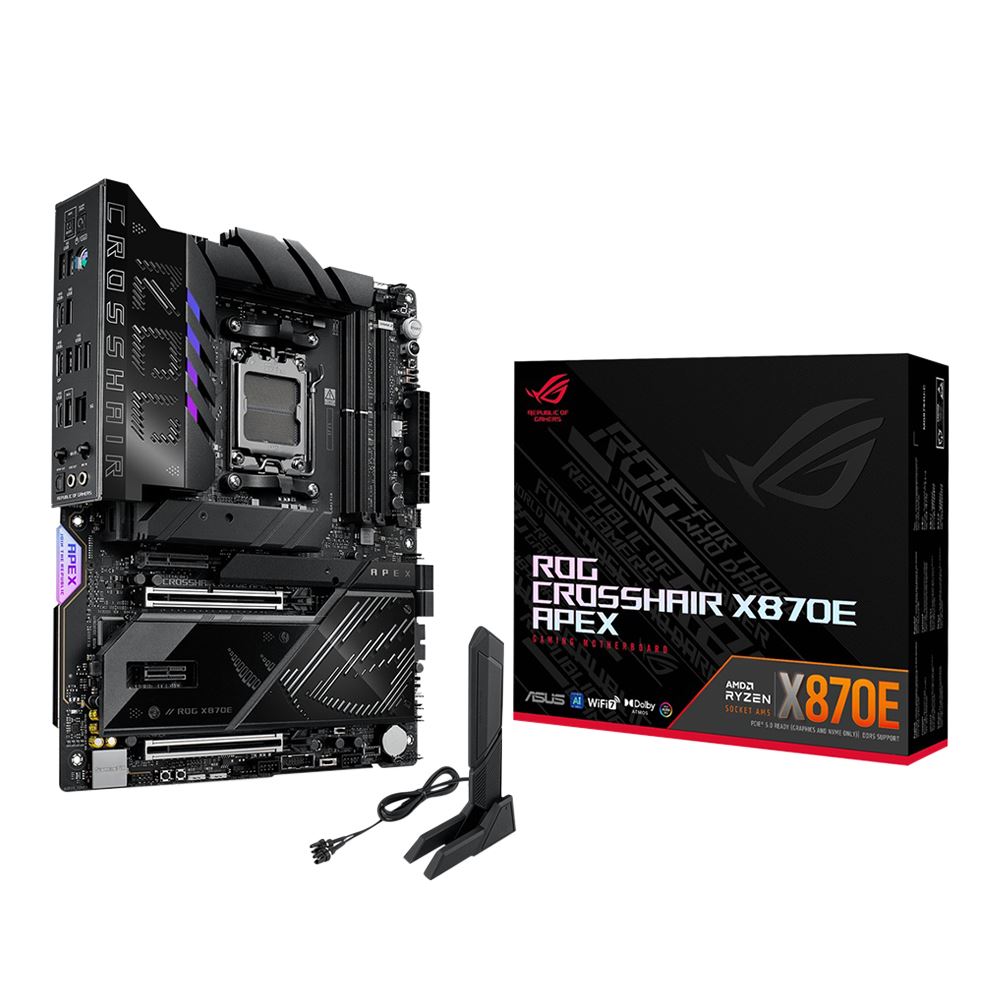

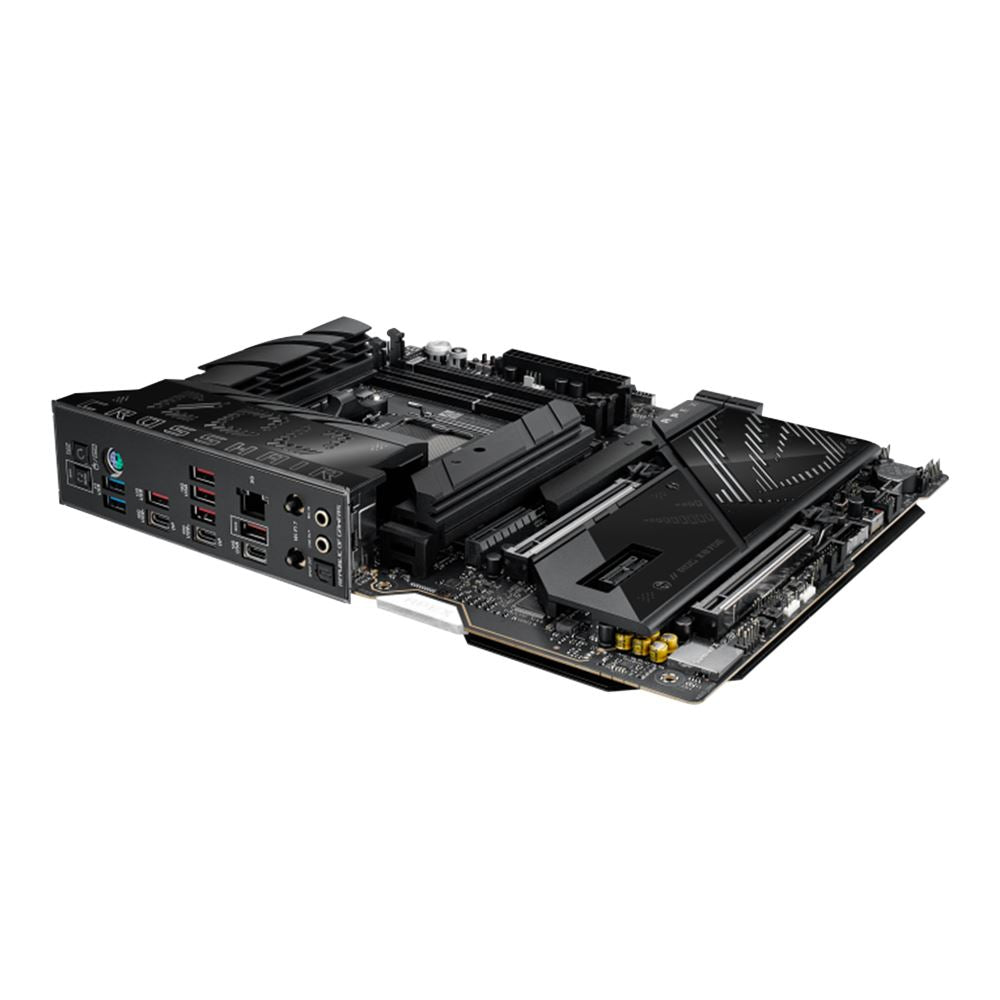

ASUS X870E ROG CROSSHAIR APEX AMD AM5 ATX Motherboard

COMPUTER BARGAIN CENTER

ASUS X870E ROG CROSSHAIR APEX AMD AM5 ATX Motherboard

(0)

$ 929.99

Key Features
AMD X870E
AMD AM5 Ryzen Processors
128GB Dual Channel 2 x 288pin DIMM Support

Product Information
SKU
850180
Mfr Part#
ROGX870EAPEX
UPC
197105890244
General Specifications
Packaging
Retail
Chipset
Chipset
AMD X870E
BIOS
2 x 256Mb UEFI AMI BIOS Flash ROM
Manageability
WOL
CPU Support
AMD CPU Support
Ryzen
Socket Type
AM5
Memory Specifications
ECC
Non-ECC; Non-Registered
Memory Slots
2 x 288pin DIMM
Memory Channel Support
Dual Channel
Max Memory Supported
128GB
Maximum Memory Supported Per Slot
64GB
Video Specifications
Onboard Graphic Chipset
Requires CPU with Integrated Graphics
Storage Specifications
M.2 Port Type
2242
2260
2280
22110
SATA Express
5 x M.2 Socket 3
M key
SATA 6Gb/s
4
RAID Support
RAID 0
RAID 1
RAID 5
RAID 10
Audio Specifications
Audio Chipset
ROG SupremeFX ALC4080
Audio Channels
7.1
Networking
WiFi Support
Onboard WiFi
LAN Chipset
Realtek 5Gb Ethernet
LAN Speed
100/1000/2500/5000Mbps
Wireless Technology
802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.4
WiFi 7 (802.11be)
Expansion Slots
PCI Express 5.0 x16
2
PCI Express x1
1
Back Panel Ports
Legacy Ports
1 x PS/2
LAN Ports
1 x 100/1000/2500/5000 RJ-45 LAN
Audio Ports
1 x 3.5 mm Microphone
1 x 3.5 mm Line-Out
Specialty Ports
2 x WiFi Antenna Ports
USB 3.1
2 x USB 3.2 (Gen 1 Type-A)
5 x USB 3.2 (Gen 2 Type-A)
2 x USB4 (Type-C 40 Gb/s)
Digital Audio
1 x Optical
Internal I/O & Connectors
Headers
4 x System Fan Header
1 x Water Pump Header
2 x CPU Fan Header
USB
2 x USB 2.0 Headers (4 Ports)
2 x USB 3.2 Gen 1 Type-A Headers (4 Ports)
2 x USB 3.2 Gen 2x2 Type-C Header (2 Port)
Other I/O
3 x Addressable LED Headers
Power
Power Connectors
1 x 24-pin ATX Connector
2 x 8-pin +12 V Connector
1 x 8-pin PCIe Power Connector
ATX Connector
24-pin ATX Power Connector
Physical Specifications
Depth
12.00 in. (304.80 mm)
Width
9.61 in. (244.00 mm)
Form Factor
ATX
Warranty
Parts
3 Years
Labor
3 Years
Package Contents
What's in the Box
Motherboard, DIMM.2 with Heatsink, M.2 Thermal Pad, M.2 Screws, Memory Fan Kit, Antenna, Q-Connector, M.2 Rubber Packages, M.2 Q-Slide Packages, ROG Stickers, ROG Bottle Opener, USB Drive

Low in stock

COMPUTER BARGAIN CENTER

ASUS ROG STRIX X370-I Gaming AM4 mITX

(0)

$ 195.00

Specifications

PRODUCT INFORMATION

SKU

698811

Mfr Part#

90MB0VE0-M0AAY0

UPC

889349889220

GENERAL

Packaging

Retail

Overclocking Features

5-Way Optimization

CHIPSET

BIOS

128Mb AMI UEFI Bios

North Bridge

AMD X370

CPU SUPPORTED

Socket Type

AM4

AMD CPU Support

Athlon
A Series
Ryzen

MEMORY

Supported Memory Technologies

ECC Memory Supported
Non-ECC Memory Supported
Extreme Memory Profile (XMP)

Maximum Memory Supported Per Slot

16GB

Memory Type

DDR4

Memory Speeds Supported

DDR4 3600 O.C., 3466 O.C., 3333 O.C., 3200 O.C., 3000 O.C., 2800 O.C., 2666, 2400, 2133

Memory Slots

2 x 288pin DIMM

Max Memory Supported

32GB

Memory Channel Support

Dual Channel

VIDEO

Onboard Graphic Chipset

Onboard Graphics Not Supported

STORAGE

SATA Express

2 x Socket 3
M Key

M.2 Port Type

2242
2260
2280

SATA 6Gb/s

4

RAID Support

RAID 0
RAID 1
RAID 10

AUDIO

Audio Chipset

ROG SupremeFX S1220A

Audio Channels

7.1

NETWORKING

LAN Chipset

Intel I211-AT

LAN Speed

10/100/1000Mbps

Wireless LAN Chipset

Wi-Fi 802.11a/b/g/n/ac

Wireless Technology

802.11b
802.11g
802.11n
802.11a
802.11ac
Bluetooth v4.0
Bluetooth v3.0
Bluetooth v4.2

Supported Network Technologies

Wake-On-LAN, Supports PXE, Energy Efficient Ethernet 802.3az

EXPANSION SLOTS

PCI Express 3.0 x16

1

BACK PANEL PORTS

USB 3.1

2 x USB 3.1 (Gen 2 Type-A)
4 x USB 3.1 (Gen 1 Type-A)

Specialty Ports

2 x WiFi Antenna Ports

LAN Ports

1 x 10/100/1000 RJ-45 LAN

Audio Ports

1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Front Speaker

LAN RJ-45

2

Audio Ports

3

INTERNAL I/O & CONNECTORS

Headers

1 x CPU Fan Header
1 x Water Pump Header
1 x Front Audio Header
1 x Speaker Header
1 x RGB Header
1 x Chassis Fan Header
1 x RGB LED Strip Extension Cable Header

USB

1 x USB 3.1 Gen1 Connector (supports additional 2 USB 3.1 Gen1 ports)
1 x USB 2.0 Header (supports 2 additional USB 2.0 ports)

Other I/O

1 x Clearing CMOS Jumper
1 x Thermal Sensor Connector
1 x System Panel

POWER

ATX Power Connector

24-pin EATX Power Connector

ATX12V / EPS 12V Connector

8-pin

PHYSICAL SPECIFICATIONS

Dimensions (WxD)

6.7" x 6.7" (170mm x 170mm)

Form Factor

mini ITX

WARRANTY

Parts

3 Years

Labor

3 Years

In stock

COMPUTER BARGAIN CENTER

ASUS ROG CROSSHAIR VI HERO AM4 ATX AMD

(0)

$ 275.00

Specifications

PRODUCT INFORMATION

SKU

252064

Mfr Part#

ROG CROSSHAIR VI HERO

UPC

889349660249

GENERAL

Packaging

Retail

Features

Supports CPU up to 8 cores, Supports AM4 Socket 14 nm CPU, Sonic Radar III

Overclocking Features

5-Way Optimization, OC Design

CHIPSET

BIOS

128Mb AMI UEFI Bios

North Bridge

AMD X370

CPU SUPPORTED

Socket Type

AM4

AMD CPU Support

Athlon
A Series
Ryzen

MEMORY

Supported Memory Technologies

Non-ECC Memory Supported
Unbuffered Memory Supported

Maximum Memory Supported Per Slot

16GB

Memory Type

DDR4

Memory Speeds Supported

DDR4 3200 O.C., 2933 O.C., 2666, 2400, 2133

Memory Slots

4 x 288pin DIMM

Max Memory Supported

64GB

Memory Channel Support

Dual Channel

VIDEO

Onboard Graphic Chipset

Onboard Graphics Not Supported

Multi-GPU Support

2-Way SLI

STORAGE

M.2 Port Type

2242
2260
2280
22110

SATA Express

1 x Socket 3
M Key

SATA 6Gb/s

8

RAID Support

RAID 0
RAID 1
RAID 10

AUDIO

Audio Chipset

ROG SupremeFX S1220

Audio Channels

7.1

NETWORKING

LAN Chipset

Intel I211-AT

LAN Speed

10/100/1000Mbps

Supported Network Technologies

Wake-On-LAN, Supports PXE, Energy Efficient Ethernet 802.3az

EXPANSION SLOTS

PCI Express 2.0 x16

1

PCI Express 3.0 x16

2

BACK PANEL PORTS

LAN Ports

1 x 10/100/1000 RJ-45 LAN

Audio Ports

1 x SPDIF Optical Digital Audio
1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Front Speaker
1 x 3.5 mm Rear Speaker
1 x 3.5 mm Subwoofer

USB 2.0

4 x USB 2.0 (Type-A)

USB 3.1

1 x USB 3.1 (Gen 2 Type-C)
1 x USB 3.1 (Gen 2 Type-A)
8 x USB 3.1 (Gen 1 Type-A)

LAN RJ-45

1

Audio Ports

6

Digital Audio

1 x Optical

INTERNAL I/O & CONNECTORS

Headers

1 x CPU Fan Header
1 x Water Pump Header
1 x Front Audio Header
1 x TPM Header
1 x Water Cooling Fan Header
3 x Chassis Fan Header
2 x RGB Header

USB

1 x USB 3.1 Gen1 Connector (supports additional 2 USB 3.1 Gen1 ports)
1 x USB 2.0 Header (supports 2 additional USB 2.0 ports)

Other I/O

1 x LN2 Mode Header
1 x Thermal Sensor Connector
1 x Reset Button

POWER

ATX Power Connector

24-pin EATX Power Connector

PHYSICAL SPECIFICATIONS

Dimensions (WxD)

12 in. (305 mm) x 9.6 in. (244 mm)

Form Factor

ATX

WARRANTY

Parts

3 Years

Labor

3 Years

PACKAGE CONTENTS

What's in the Box

Motherboard, DVD-ROM, Cables, Connectors, Product Manual

Low in stock

Product Comparison

Collection description
