Key Features
Granite Ridge 8-Core Desktop Processor
AMD B850
8MB L2, 96MB L3 Cache
AMD AM5 Ryzen Processors
8 Cores, 16 Threads
256GB Dual Channel 4 x 288pin DIMM Support
AMD A620, B650, B650E, B840, B850, X670, X670E, X870, X870E Chipsets
192GB DDR5-5600 Memory Supported
Heatsink Not Included

Specifications
Cores
Eight-Core
CPU Core
Granite Ridge
Compatibility
AMD B650
AMD B650E
AMD A620
AMD X870
AMD X870E
AMD B850
AMD B840
Level 2 Cache
8MB
Level 3 Cache
96MB
Socket Type
AM5
Thermal Power
120W
Processor
Ryzen 7 9850X3D
Operating Frequency
4.70GHz
Performance Cores
8
Turbo Speed
5.60GHz
Number of Threads
16 Processing Threads
Processor Data Width
64-Bit
Maximum Operating Temperature
95°C
Technology
Unlocked Multiplier
Yes
VR Ready
Yes
Processor Type
Desktop
Multimedia Instructions
SSE4.2
SSE4.1
AVX
SSE
SSE2
SSE3
AES
SSE4a
AVX2
FMA3
SSSE3
AVX-512
AMD-V
SHA
MMX-plus
x86-64
Advanced Technologies
AES New Instructions
Idle States
Thermal Monitoring Technologies
AMD64 Technology
Cool'n'Quiet 3.0
AMD Dynamic Power Management
AMD Direct Connect Architecture
Multi-Point Thermal Control
AMD Virtualization Technology (AMD-V) with Rapid Virtualization Indexing
AMD Virtualization Technology (AMD-V)
Advanced Bit Manipulation
Advanced Vector Extensions
AMD Ryzen Master Utility
AMD SenseMI Technology
Extended Frequency Range (XFR)
Zen Core Architecture
Mode-based Execute Control (MBEC)
AMD-V Nested Paging (RVI)
AMD AVIC (Interrupt Virtualization)
AMD-Vi (I/O MMU Virtualization)
AMD Secure Processor Support
AMD Enhanced Virus Protection (NX bit)
Graphics Specifications
Graphics Specifications
AMD Radeon Graphics
Graphics Base Frequency
2.20GHz
Memory Specifications
ECC
Non-ECC; Non-Registered
ECC; Non-Registered
Memory Type
DDR5-5600
Integrated Memory Controller
Yes
Maximum Memory Supported
192GB
Maximum Memory Bandwidth
89.6GB/s
ECC
Yes
Memory Channels
2
Ports & Expansion
PCI Express Configurations
Up to 1x16, 2x8, 1x8+2x4
PCI Express Revision
5.0
PCI Express Lanes
28 Total; 24 Usable
Warranty
Parts
3 Years Limited
Labor
3 Years Limited
Package Contents
What's in the Box

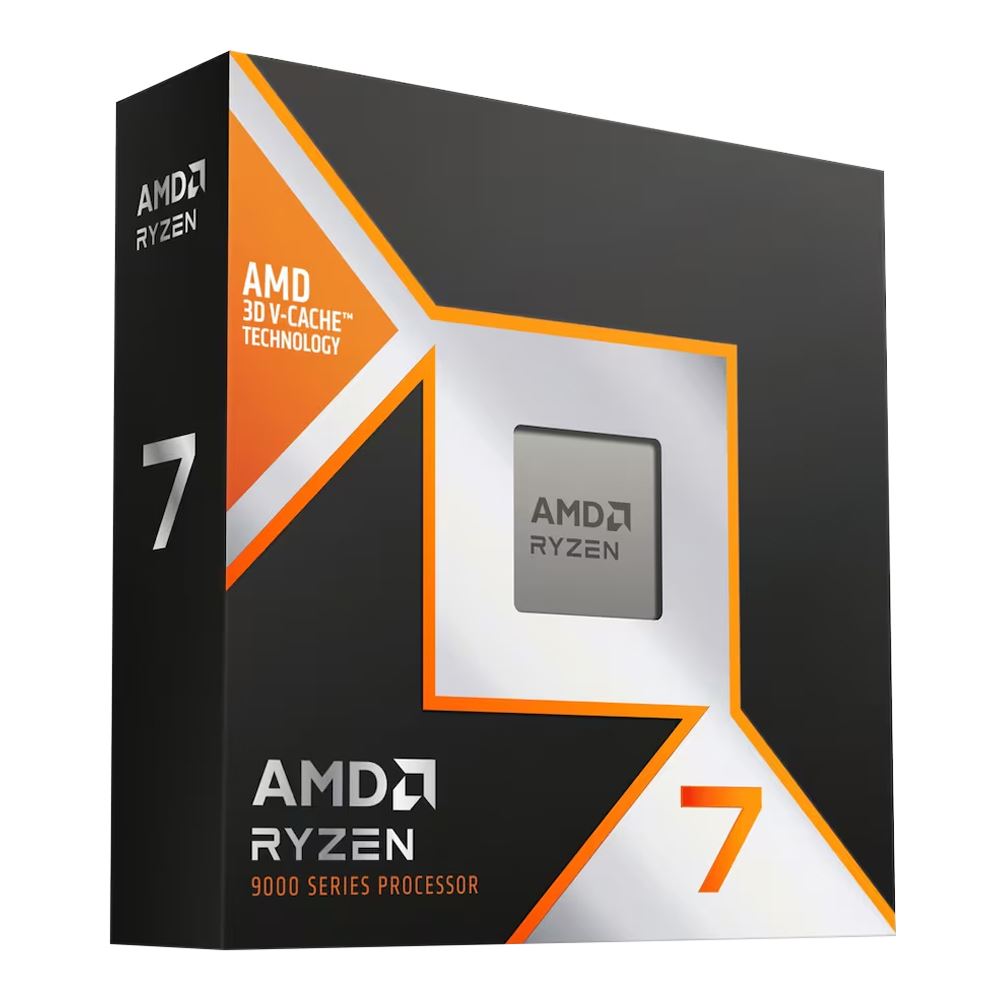

AMD Ryzen 7 9850X3D Processor, Protective clamshell case (CPU tray) and installation/quick start guide.

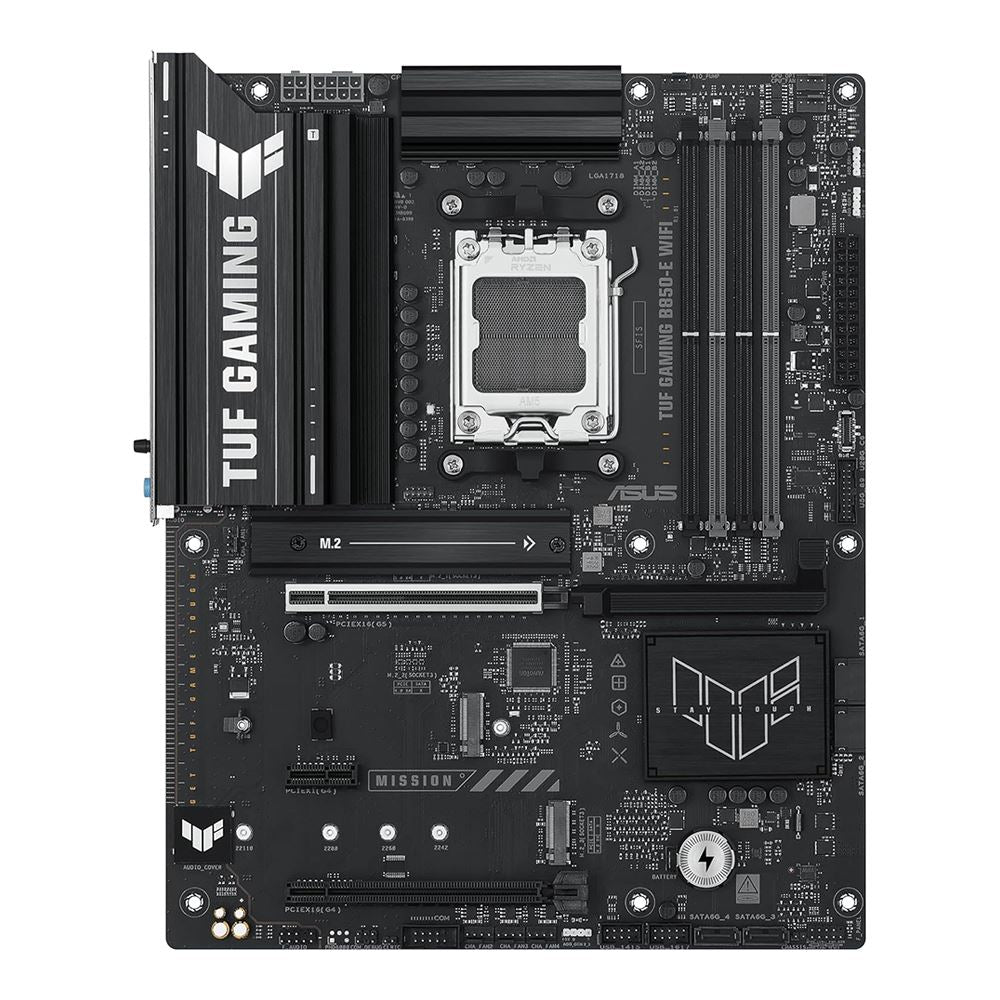

B850-E TUF GAMING WIFI AMD AM5 ATX Motherboard
General Specifications
Packaging
Retail
Chipset
Chipset
AMD B850
BIOS
256Mb AMI UEFI Bios
Manageability
WOL
PXE
CPU Support
AMD CPU Support
Ryzen
Socket Type
AM5
Memory Specifications
ECC
Non-ECC; Non-Registered
ECC; Non-Registered
Memory Type
DDR5-4800
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-4400
DDR5-5000
DDR5-5800
Memory Speeds Supported
8000+ MHz (OC)
Memory Slots
4 x 288pin DIMM
Memory Channel Support
Dual Channel
Max Memory Supported
256GB
Maximum Memory Supported Per Slot
64GB
Video Specifications
Onboard Graphic Chipset
Requires CPU with Integrated Graphics
Storage Specifications
M.2 Port Type
2242
2260
2280
22110
SATA Express
3 x M.2 Socket 3
M Key
SATA 6Gb/s
4
RAID Support
RAID 0
RAID 1
RAID 5
RAID 10
Audio Specifications
Audio Channels
7.1
Networking
WiFi Support
Onboard WiFi
LAN Speed
10/100/1000/2500Mbps
Wireless Technology
802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.3
Expansion Slots
PCI Express 4.0 x16
1
PCI Express 5.0 x16
1
PCI Express x1
1
Back Panel Ports
LAN Ports
1 x 10/100/1000/2500 RJ-45 LAN
Audio Ports
1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Line-Out
Specialty Ports
2 x WiFi Antenna Ports
USB 2.0
3 x USB 2.0 (Type-A)
USB 3.1
1 x USB 3.2 (Gen 2 Type-C)
1 x USB 3.2 (Gen 2 Type-A)
Video Connectors
1 x HDMI 2.1
1 x DisplayPort 1.4
Internal I/O & Connectors
Headers
4 x System Fan Header
1 x Water Pump Header
2 x CPU Fan Header
USB
2 x USB 2.0 Headers (4 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
1 x USB 3.2 Gen 2x2 Type-C Header (1 Port)
Other I/O
3 x Addressable LED Headers
Power
Power Connectors
1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector
1 x 4-pin +12 V Connector
ATX Connector
24-pin ATX Power Connector
Physical Specifications
Depth
12.00 in. (304.80 mm)
Width
9.61 in. (244.00 mm)
Form Factor
ATX
Warranty
Parts
3 Years Limited
Labor
3 Years Limited
Package Contents
What's in the Box
Motherboard, 2x SATA Cables, Antenna, Stickers, M.2 Rubber Packages, M.2 Screws

Key Features
Raphael AM5 8-Core Desktop Processor
AMD B650E
8MB L2, 96MB L3 Cache
AMD AM5 Ryzen Processors
8 Cores, 16 Threads
256GB Dual Channel 4 x 288pin DIMM Support
AMD A620, B650, B650E, B840, B850, X670, X670E, X870, X870E Chipsets
128GB DDR5-5200 Memory Supported
Heatsink Not Included
