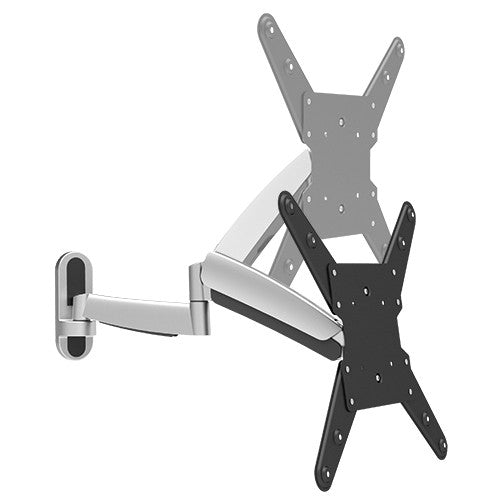

Counterbalance TV Mount for 26~47" w/22.8" Arm

by COMPUTER BARGAIN CENTER
$ 82.00
Description

Spec Drawing Open installation guide Fullscreen Image  Packaging


Screen size

Max load

VESA hole pitch

Tilt

Swivel

Wall to TV

The counterbalance ergonomic arm provides maximum flexibility for freely positioning and excellent features that distinguish greatly from a normal arm. Each arm can hold screen up to 20kgs (44lbs). Built-in spring tension gauge can be easily adjusted to fit varied weights that arm holds. Advanced VESA plate includes -15° to +15° of fingertip tilt that enable both sit to stand and touch screen applications. The plate also allows +3° ~-3° screen level adjustment. A hidden cable management integrated in arm easily conceals cables beneath channel covers.



* For 23 to 42" screen size LCD or LED TV
Note: Supported screen size is provided as a reference only. Please check bracket dimensions above, and make sure overall braket size does not exceed TV.
* Tilt : 15° up ~ +15° down
* Swivel : 90° left / 90° right
* Max Load Capacity: 44lbs (20kg)
* Universal mounting pattern
* VESA hole pitch : Max: : 400 x 400mm (16" x 16")
* TV to wall: Min: 2.2" (55mm), Max: 22.8" (580mm)
* Mounting hardware included
* Package weight:12lbs
* Package size: 20 (L) x16(W) x 3.5" (H)
* Master cartonb qty: 2 units

** 1 inch = 25.4mm, 1lbs = 0.454Kg **
