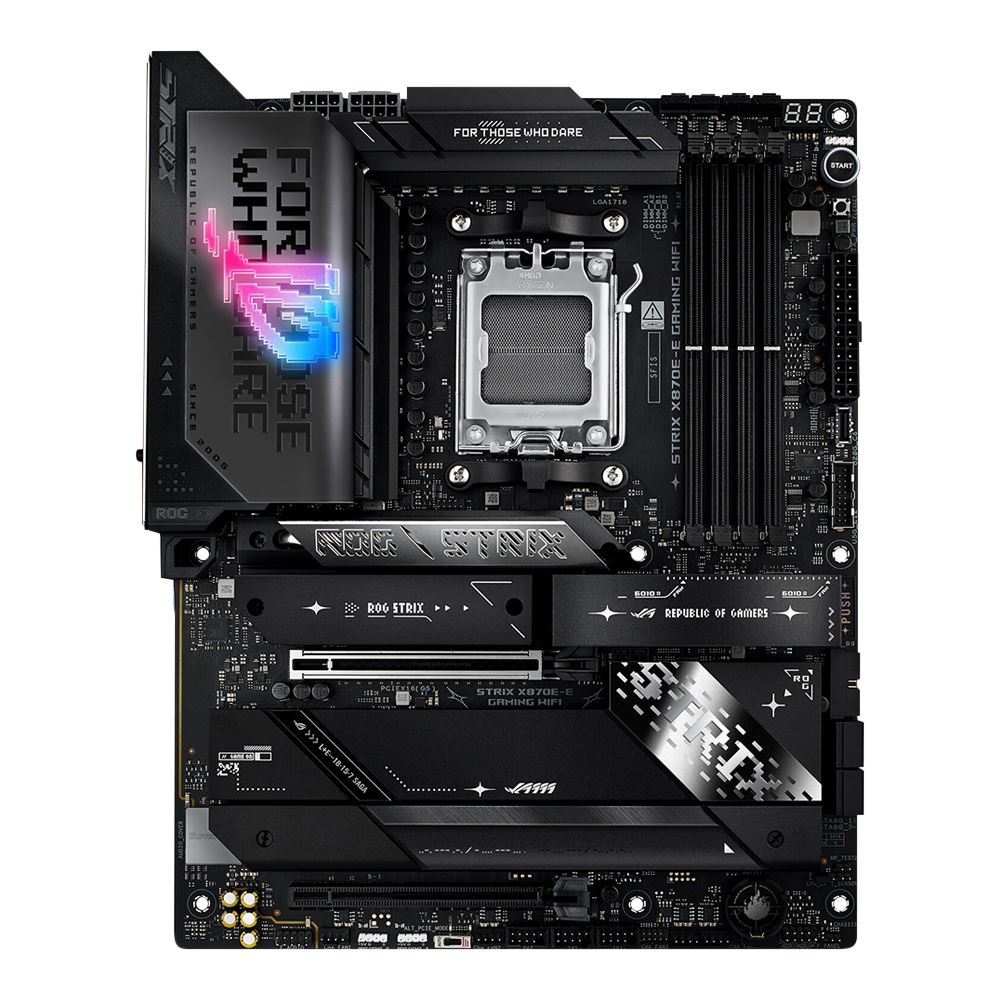

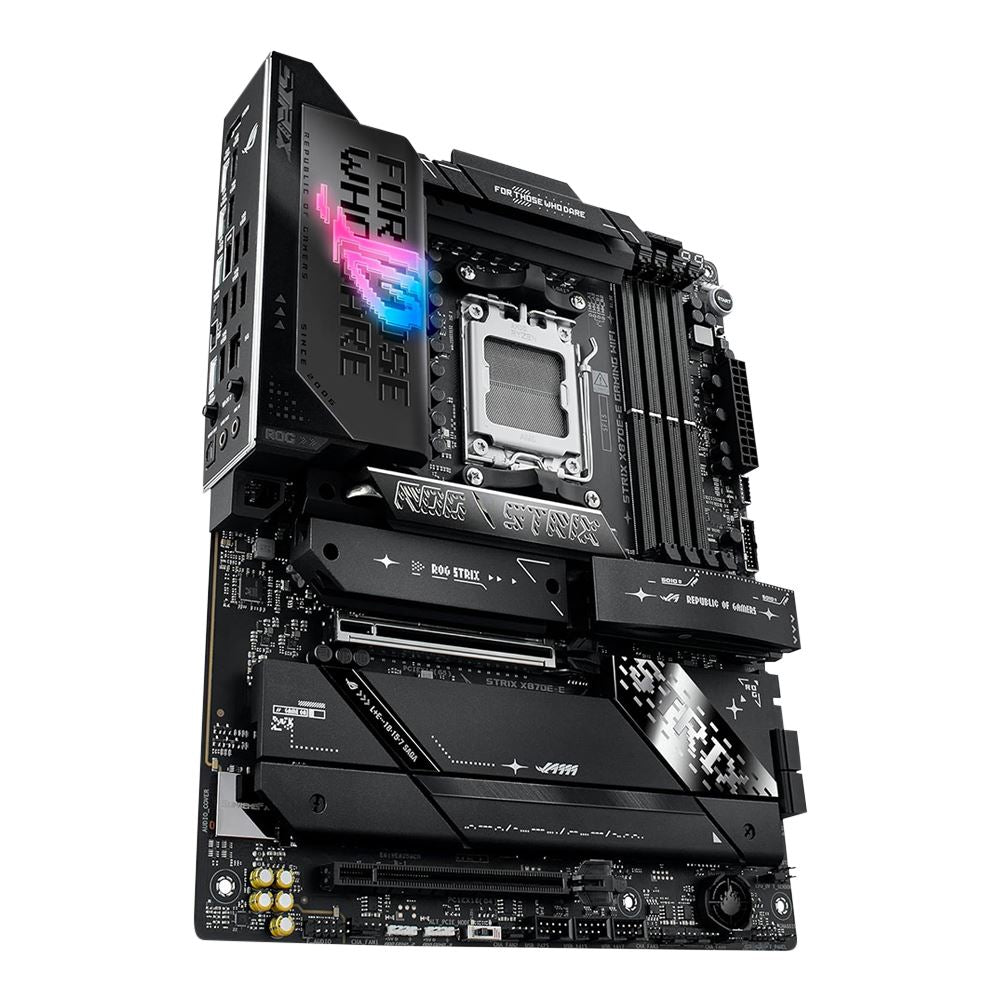

ASUS X870E-E ROG Strix Gaming R2/USBC WiFi AMD AM5 ATX Motherboard

Key Features
AMD X870E
AMD AM5 Ryzen Processors
256GB Dual Channel 4 x 288pin DIMM Support

Product Information
SKU
928416
Mfr Part#
X870EEWFR2UBC
UPC
199291272057
General Specifications
Packaging
Retail
Chipset
Chipset
AMD X870E
BIOS
256Mb AMI UEFI Bios
Manageability
WOL
PXE
CPU Support
AMD CPU Support
Ryzen
Socket Type
AM5
Memory Specifications
ECC
Non-ECC; Non-Registered
ECC; Non-Registered
Memory Type
DDR5-4800
DDR5-5200
DDR5-5400
DDR5-4400
DDR5-5000
DDR5-6000
DDR5-5800
Memory Speeds Supported
8000+ MHz (OC)
Memory Slots
4 x 288pin DIMM
Memory Channel Support
Dual Channel
Max Memory Supported
256GB
Maximum Memory Supported Per Slot
64GB
Video Specifications
Onboard Graphic Chipset
Requires CPU with Integrated Graphics
Storage Specifications
M.2 Port Type
2242
2260
2280
22110
SATA Express
5 x M.2 Socket 3
M key
SATA 6Gb/s
4
RAID Support
RAID 0
RAID 1
RAID 5
RAID 10
Audio Specifications
Audio Chipset
ROG SupremeFX ALC4080
Audio Channels
7.1
Networking
WiFi Support
Onboard WiFi
LAN Chipset
Realtek 5Gb Ethernet
LAN Speed
100/1000/2500/5000Mbps
Wireless Technology
802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.4
WiFi 7 (802.11be)
Expansion Slots
PCI Express 4.0 x16
1
PCI Express 5.0 x16
1

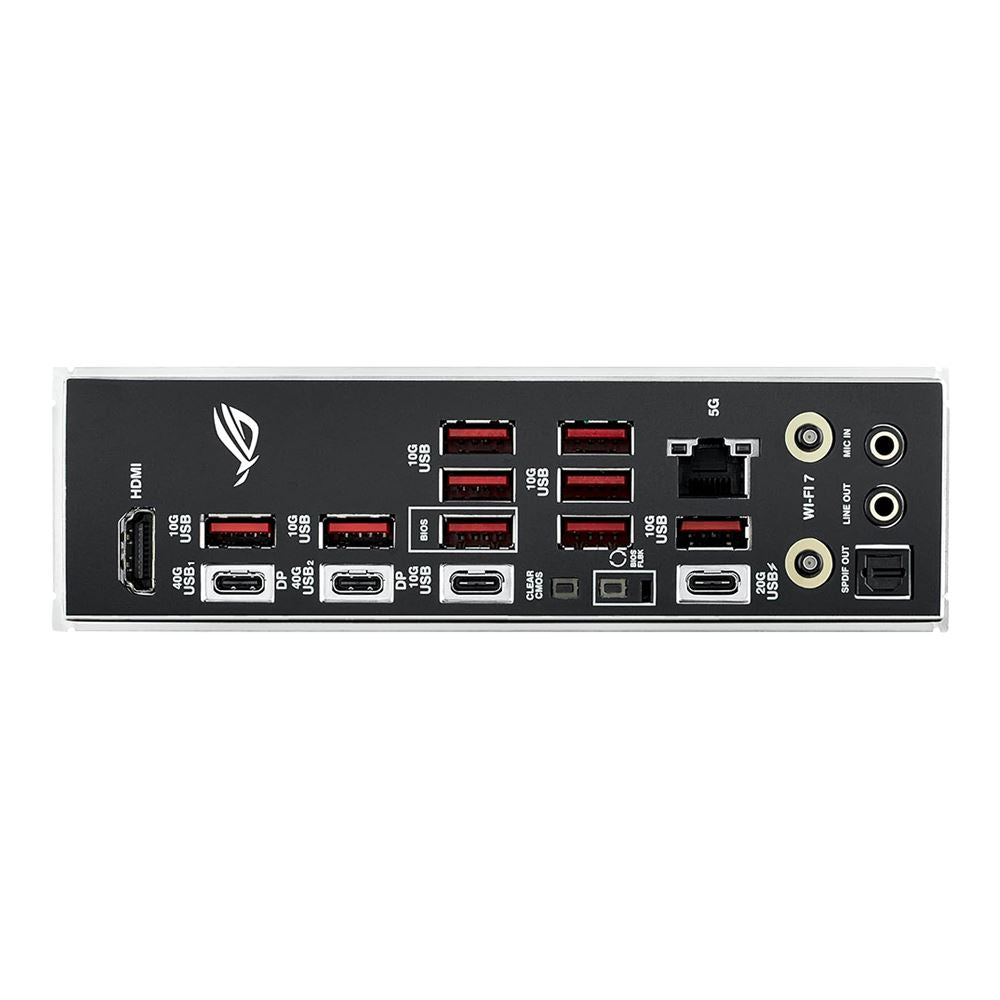

Back Panel Ports
LAN Ports
1 x 100/1000/2500/5000 RJ-45 LAN
Audio Ports
1 x 3.5 mm Line-In
1 x 3.5 mm Line-Out
Specialty Ports
2 x WiFi Antenna Ports
USB 3.1
1 x USB 3.2 (Gen 2 Type-C)
1 x USB 3.2 (Gen 2x2 Type-C)
2 x USB4 (Type-C 40 Gb/s)
9 x USB 3.2 (Gen 2 Type-A)
Video Connectors
1 x HDMI 2.1
Digital Audio
1 x Optical
Internal I/O & Connectors
Headers
1 x Water Pump Header
2 x CPU Fan Header
5 x System Fan Header
USB
3 x USB 2.0 Headers (6 Ports)
2 x USB 3.2 Gen 1 Type-A Headers (4 Ports)
1 x USB 3.2 Gen 2x2 Type-C Header (1 Port)
Other I/O
3 x Addressable LED Headers
Power
Power Connectors
1 x 24-pin ATX Connector
2 x 8-pin +12 V Connector
ATX Connector
24-pin ATX Power Connector
Physical Specifications
Depth
12.00 in. (304.80 mm)
Width
9.61 in. (244.00 mm)
Form Factor
ATX
Warranty
Parts
3 Years Limited
Labor
3 Years Limited

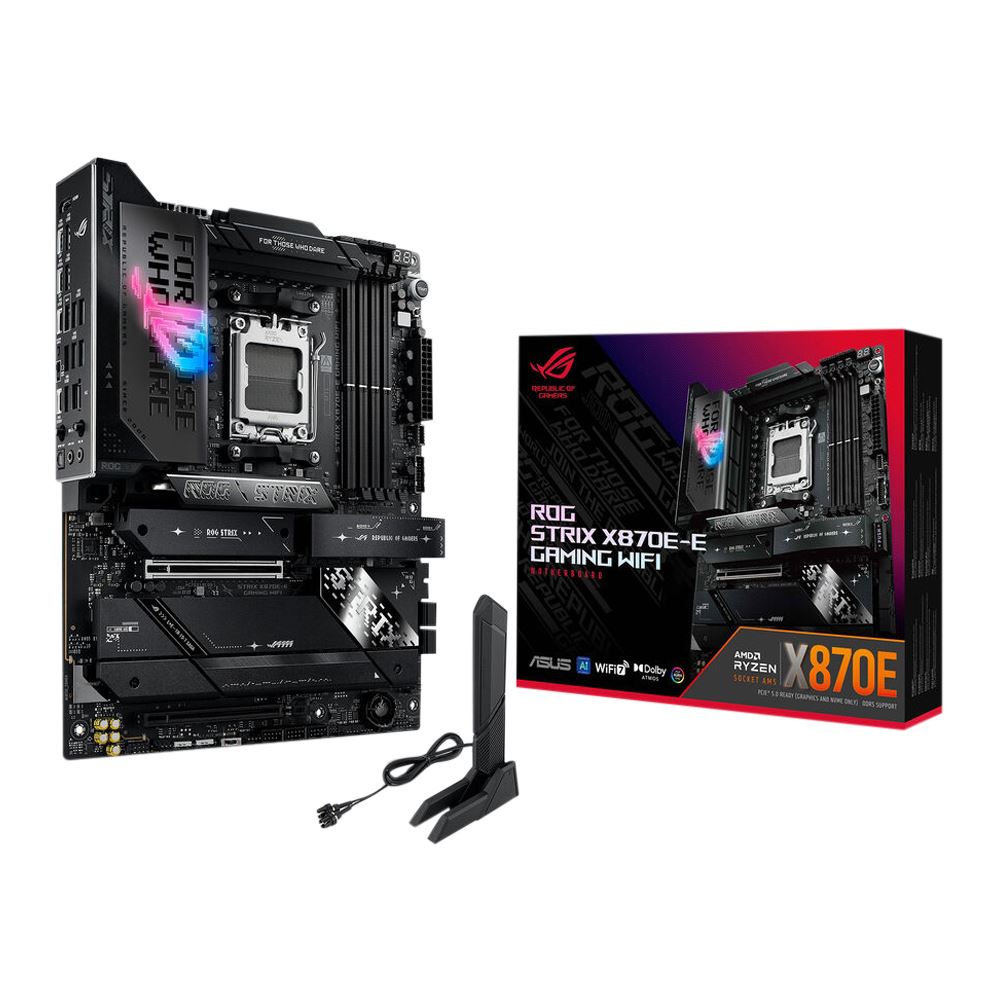

Package Contents
What's in the Box
Motherboard, 2x SATA Cables, Thermal Pad for M.2, Antennas, Cable Ties, M.2 Q-Latch and Slides, ROG Key Chain, ROG Strix Stickers, 5x M.2 Rubbers, PCIe to Front USB Type-C Card
