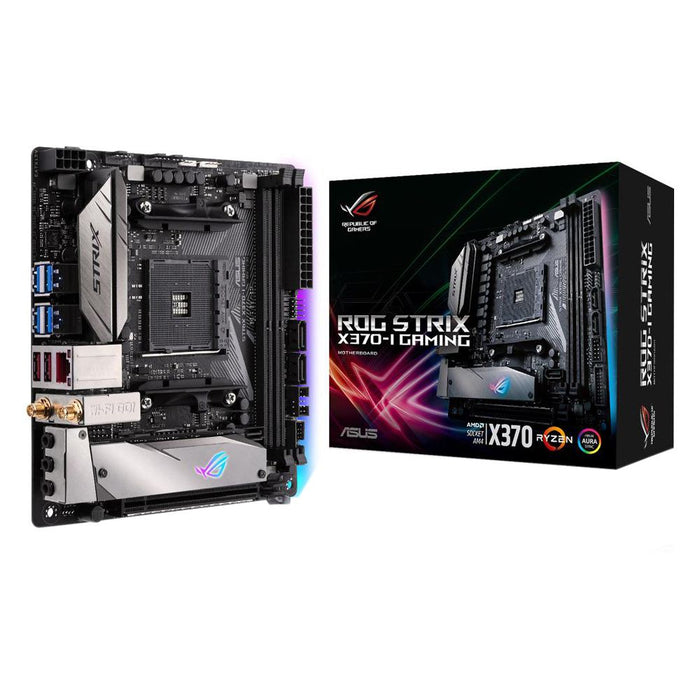

ASUS ROG STRIX X370-I Gaming AM4 mITX


Price:
Sale price$ 195.00

Description

Specifications

PRODUCT INFORMATION
SKU
698811
Mfr Part#
90MB0VE0-M0AAY0
UPC
889349889220
GENERAL
Packaging
Retail
Overclocking Features
5-Way Optimization
CHIPSET
BIOS
128Mb AMI UEFI Bios
North Bridge
AMD X370
CPU SUPPORTED
Socket Type
AM4
AMD CPU Support
Athlon
A Series
Ryzen
MEMORY
Supported Memory Technologies
ECC Memory Supported
Non-ECC Memory Supported
Extreme Memory Profile (XMP)
Maximum Memory Supported Per Slot
16GB
Memory Type
DDR4
Memory Speeds Supported
DDR4 3600 O.C., 3466 O.C., 3333 O.C., 3200 O.C., 3000 O.C., 2800 O.C., 2666, 2400, 2133
Memory Slots
2 x 288pin DIMM
Max Memory Supported
32GB
Memory Channel Support
Dual Channel
VIDEO
Onboard Graphic Chipset
Onboard Graphics Not Supported
STORAGE
SATA Express
2 x Socket 3
M Key
M.2 Port Type
2242
2260
2280
SATA 6Gb/s
4
RAID Support
RAID 0
RAID 1
RAID 10
AUDIO
Audio Chipset
ROG SupremeFX S1220A
Audio Channels
7.1
NETWORKING
LAN Chipset
Intel I211-AT
LAN Speed
10/100/1000Mbps
Wireless LAN Chipset
Wi-Fi 802.11a/b/g/n/ac
Wireless Technology
802.11b
802.11g
802.11n
802.11a
802.11ac
Bluetooth v4.0
Bluetooth v3.0
Bluetooth v4.2
Supported Network Technologies
Wake-On-LAN, Supports PXE, Energy Efficient Ethernet 802.3az
EXPANSION SLOTS
PCI Express 3.0 x16
1
BACK PANEL PORTS
USB 3.1
2 x USB 3.1 (Gen 2 Type-A)
4 x USB 3.1 (Gen 1 Type-A)
Specialty Ports
2 x WiFi Antenna Ports
LAN Ports
1 x 10/100/1000 RJ-45 LAN
Audio Ports
1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Front Speaker
LAN RJ-45
2
Audio Ports
3
INTERNAL I/O & CONNECTORS
Headers
1 x CPU Fan Header
1 x Water Pump Header
1 x Front Audio Header
1 x Speaker Header
1 x RGB Header
1 x Chassis Fan Header
1 x RGB LED Strip Extension Cable Header
USB
1 x USB 3.1 Gen1 Connector (supports additional 2 USB 3.1 Gen1 ports)
1 x USB 2.0 Header (supports 2 additional USB 2.0 ports)
Other I/O
1 x Clearing CMOS Jumper
1 x Thermal Sensor Connector
1 x System Panel
POWER
ATX Power Connector
24-pin EATX Power Connector
ATX12V / EPS 12V Connector
8-pin
PHYSICAL SPECIFICATIONS
Dimensions (WxD)
6.7" x 6.7" (170mm x 170mm)
Form Factor
mini ITX
WARRANTY
Parts
3 Years
Labor
3 Years
