ASUS M5A78L-M Plus/USB3 AM3+


Price:
Sale price$ 75.00

Description

Specifications

PRODUCT INFORMATION
SKU
055988
Mfr Part#
M5A78LMPLUSUSB3
UPC
889349413081
GENERAL
Packaging
Retail
Features
ASUS Exclusive Features: Ai Charger, Anti-Surge, Low EMI Solution
CHIPSET
BIOS
16Mb AMI UEFI Bios
North Bridge
AMD 760G
South Bridge
AMD SB710
Supported Chipset Technologies
AMD Cool 'n' Quiet Technology
CPU SUPPORTED
Socket Type
AM3+
AMD CPU Support
Phenom II
Athlon II
Sempron
Sempron 100 series
FX
MEMORY
Supported Memory Technologies
ECC Memory Supported
Non-ECC Memory Supported
Unbuffered Memory Supported
Maximum Memory Supported Per Slot
8GB
Memory Type
DDR3
Memory Speeds Supported
DDR3 2000 O.C., 1866 O.C., 1800 O.C., 1600 O.C., 1333, 1066
Memory Slots
4 x 240pin DIMM
Max Memory Supported
32GB
Memory Channel Support
Dual Channel
VIDEO
Onboard Graphic Chipset
AMD Radeon HD 3000
Multi-GPU Support
Hybrid CrossFireX
STORAGE
SATA 3Gb/s
6
RAID Support
RAID 0
RAID 1
RAID 10
AUDIO
Audio Chipset
Realtek ALC887
Audio Channels
7.1
NETWORKING
LAN Chipset
Realtek RTL8111H
LAN Speed
10/100/1000Mbps
Supported Network Technologies
Wake-On-LAN, Supports PXE, Energy Efficient Ethernet 802.3az
EXPANSION SLOTS
PCI Express 2.0 x16
1
PCI Express 2.0 x16
1
PCI Express 2.0 x1
1
PCI
1

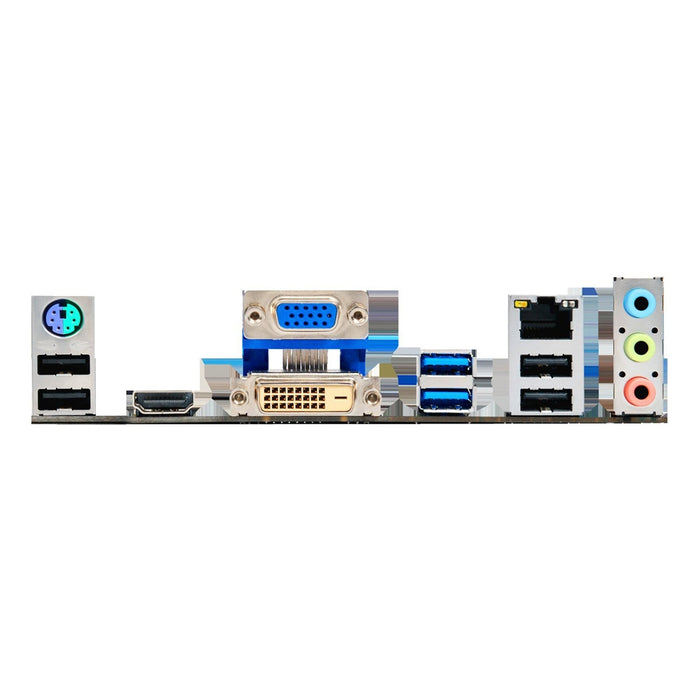

BACK PANEL PORTS
Video Connectors
HDMI x1
DVI-D x1
1 x VGA 15-pin
1 x DVI-D
1 x HDMI 1.4
USB 2.0
4 x USB 2.0 (Type-A)
USB 3.1
2 x USB 3.1 (Gen 1 Type-A)
Legacy Ports
2 x PS/2
LAN Ports
1 x 10/100/1000 RJ-45 LAN
Audio Ports
1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Front Speaker
PS/2
2
DVI
1
HDMI
1
VGA 15-pin
1
LAN RJ-45
1
Audio Ports
3
Digital Audio
1 x Optical
INTERNAL I/O & CONNECTORS
Headers
1 x CPU Fan Header
1 x Front Audio Header
1 x S/PDIF-Out Header
1 x Parallel Port Header
1 x Speaker Header
1 x COM Port Header
1 x Chassis Fan Header
USB
1 x USB 3.1 Gen1 Connector (supports additional 2 USB 3.1 Gen1 ports)
2 x USB 2.0 Headers (supports 4 additional USB 2.0 ports)
Other I/O
1 x Clearing CMOS Jumper
1 x System Panel
POWER
ATX Power Connector
24-pin
ATX12V / EPS 12V Connector
4-pin
Environmental Standards
ErP Ready
PHYSICAL SPECIFICATIONS
Dimensions (WxD)
9.0" x 9.6" (229mm x 244mm)
Form Factor
mATX
WARRANTY
Parts
3 Years
Labor
3 Years
