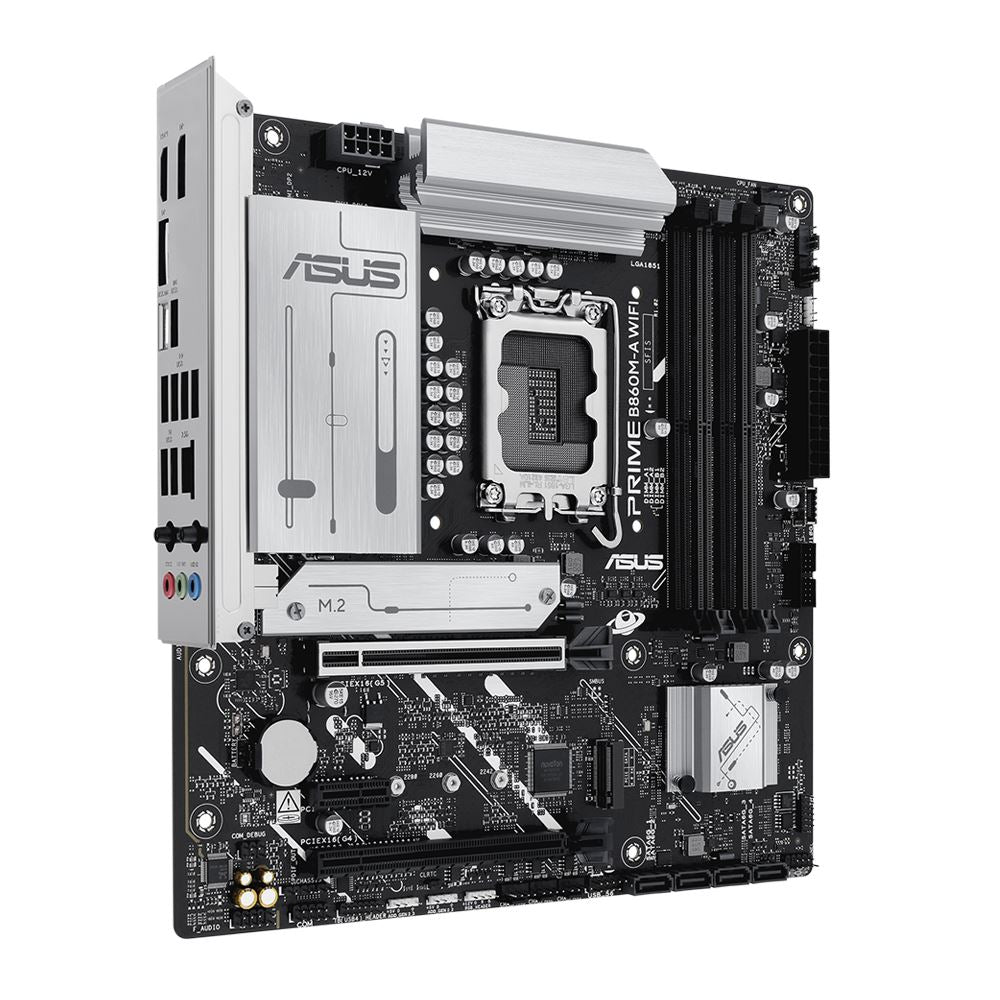

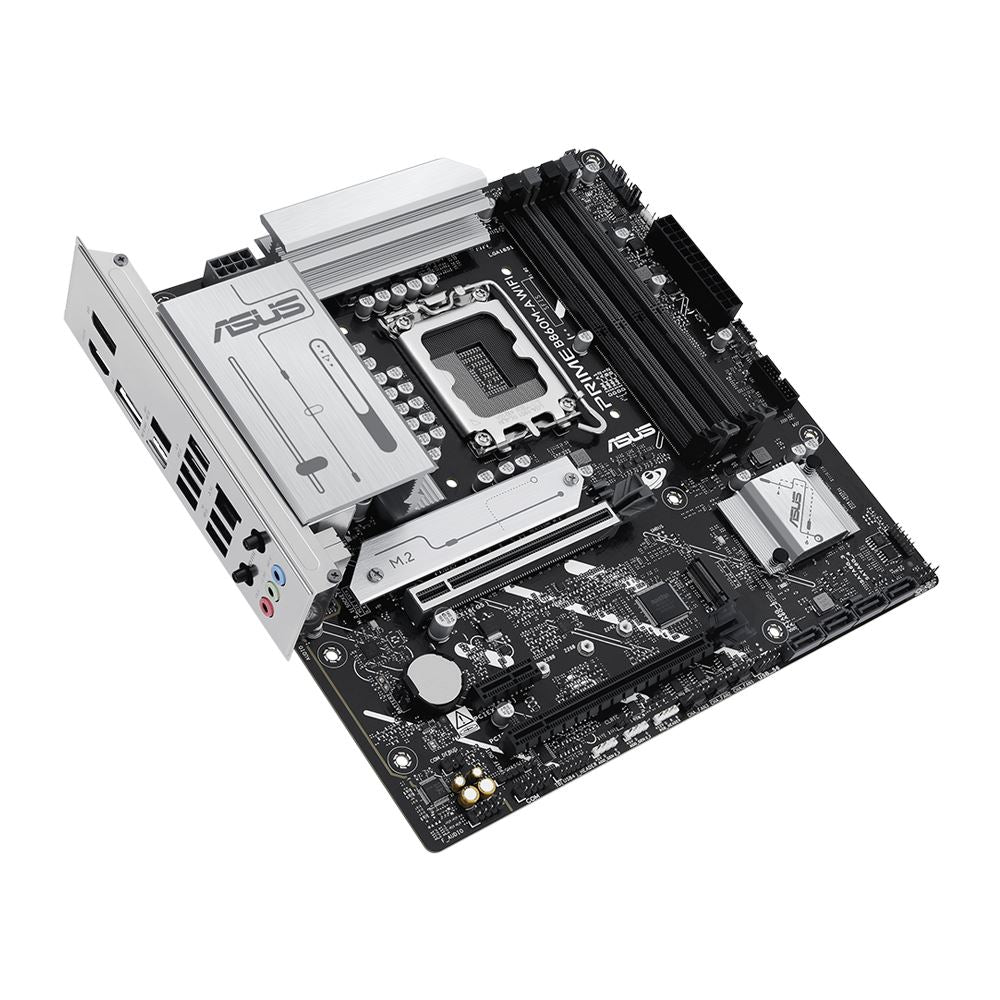

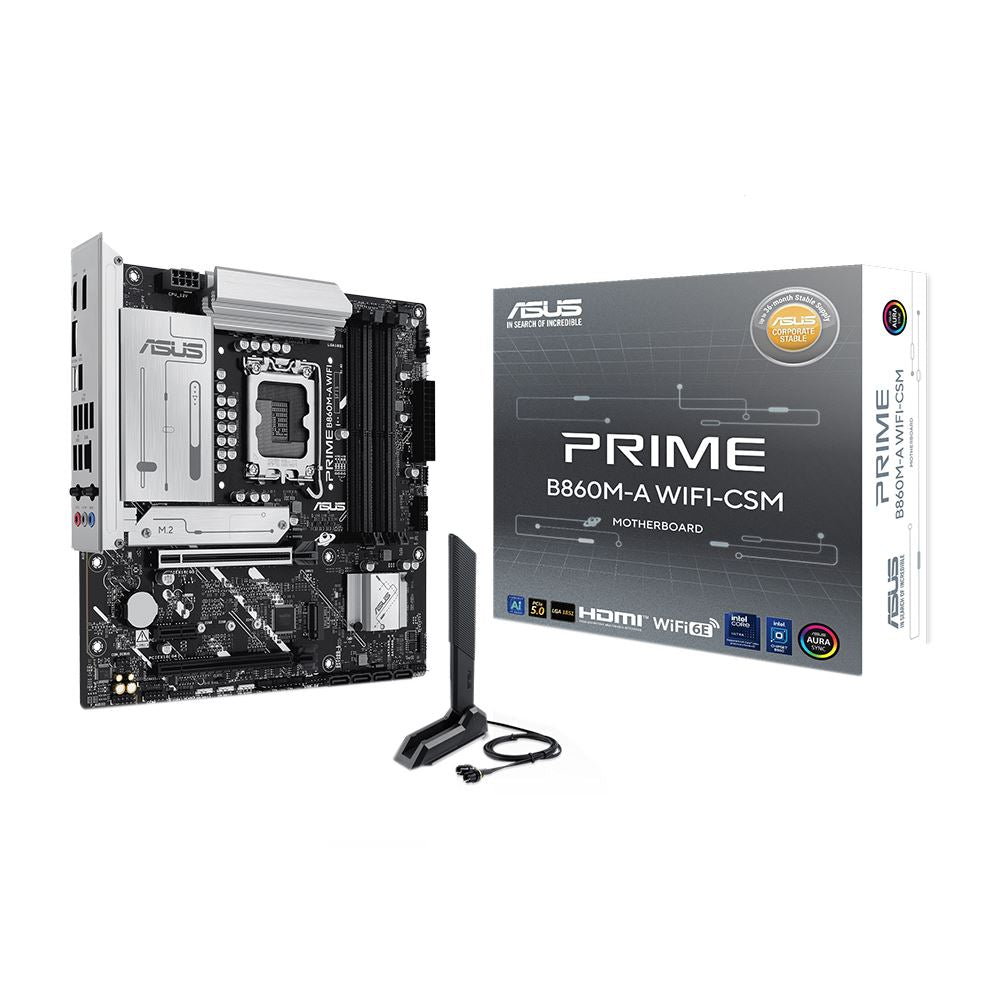

ASUS B860M-A Prime WiFi-CSM Intel LGA 1851 microATX Motherboard

COMPUTER BARGAIN CENTER

ASUS B860M-A Prime WiFi-CSM Intel LGA 1851 microATX Motherboard

(0)

$ 289.00

Key Features

Intel B860
Intel LGA 1851 Processors
256GB Dual Channel 4 x 288pin DIMM Support

Product Information

SKU

798215

Mfr Part#

PRMB860MAWCSM

UPC

197105806290

General Specifications

Packaging

Retail

Chipset

Intel B860

BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL
PXE

CPU Support

Intel CPU Support

Core Ultra Processors

Socket Type

LGA 1851

Memory Specifications

ECC

Non-ECC; Non-Registered

Memory Type

DDR5-4800
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-4400
DDR5-5000
DDR5-5800

Memory Speeds Supported

8666+ MHz (OC)

Memory Slots

4 x 288pin DIMM

Memory Channel Support

Dual Channel

Max Memory Supported

256GB

Maximum Memory Supported Per Slot

64GB

Video Specifications

Onboard Graphic Chipset

Requires CPU with Integrated Graphics

Storage Specifications

M.2 Port Type

2242
2260
2280

SATA Express

2 x M.2 Socket 3
M Key

SATA 6Gb/s

RAID Support

RAID 0
RAID 1
RAID 5
RAID 10

Audio Specifications

Audio Channels

7.1

Networking

WiFi Support

Onboard WiFi

LAN Chipset

Realtek 2.5Gb Ethernet

LAN Speed

10/100/1000/2500Mbps

Wireless Technology

802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.3
WiFi 7 (802.11be)
WiFi 6E (802.11ax)

Expansion Slots

PCI Express 4.0 x16

PCI Express 5.0 x16

PCI Express x1

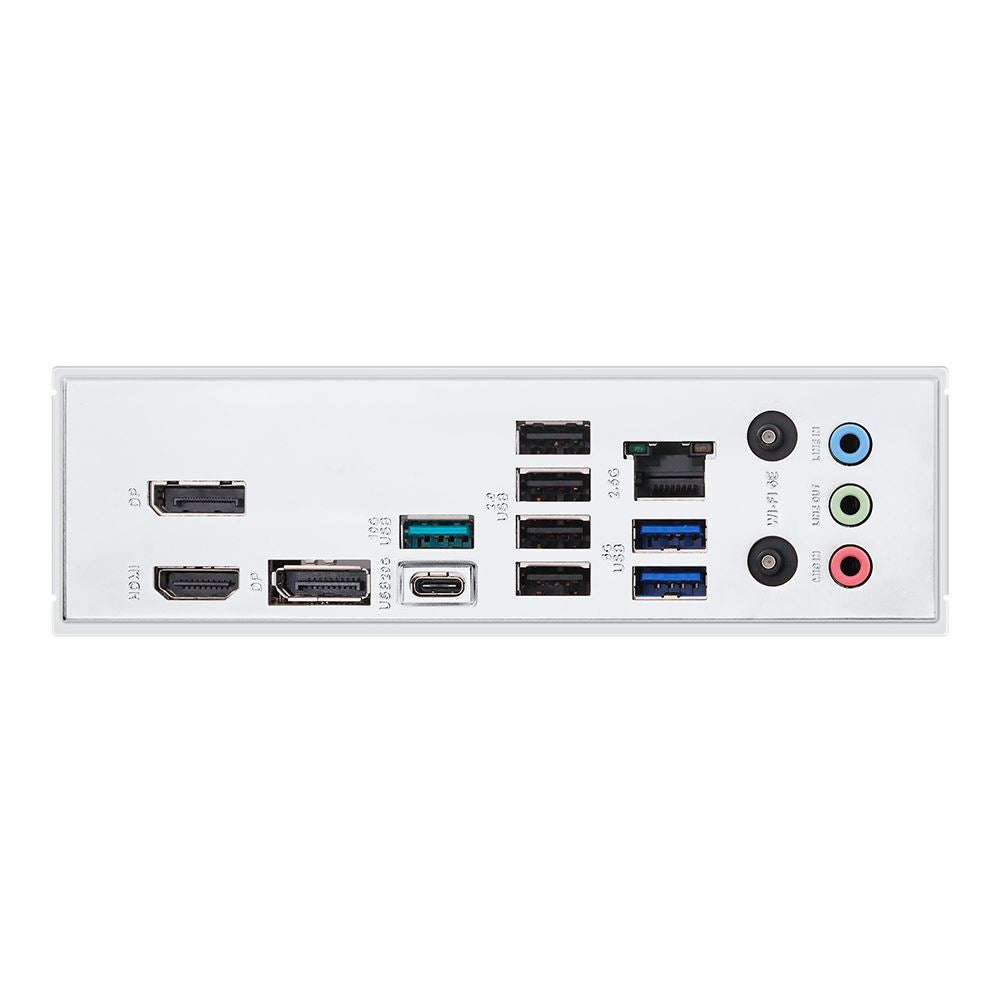

Back Panel Ports

LAN Ports

1 x 10/100/1000/2500 RJ-45 LAN

Audio Ports

1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Line-Out

Specialty Ports

2 x WiFi Antenna Ports

USB 2.0

4 x USB 2.0 (Type-A)

USB 3.1

1 x USB 3.2 (Gen 2x2 Type-C)
1 x USB 3.2 (Gen 2 Type-A)
2 x USB 3.2 (Gen 1 Type-A)

Video Connectors

1 x HDMI 2.1
2 x DisplayPort 1.4

Internal I/O & Connectors

Headers

1 x Water Pump Header
3 x System Fan Header
2 x CPU Fan Header

USB

1 x USB 2.0 Header (2 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
1 x USB 3.2 Gen 2 Type-C Header (1 Port)

Other I/O

3 x Addressable LED Headers

Power

Power Connectors

1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector

ATX Connector

24-pin ATX Power Connector

Physical Specifications

Depth

9.61 in. (244.00 mm)

Width

9.61 in. (244.00 mm)

Form Factor

microATX

Warranty

Parts

3 Years

Labor

3 Years

Package Contents

What's in the Box

Motherboard, 2x SATA Cables, Antenna, M.2 Rubber Packages, M.2 Screws, Guide, ACC Express Activation Key

Low in stock

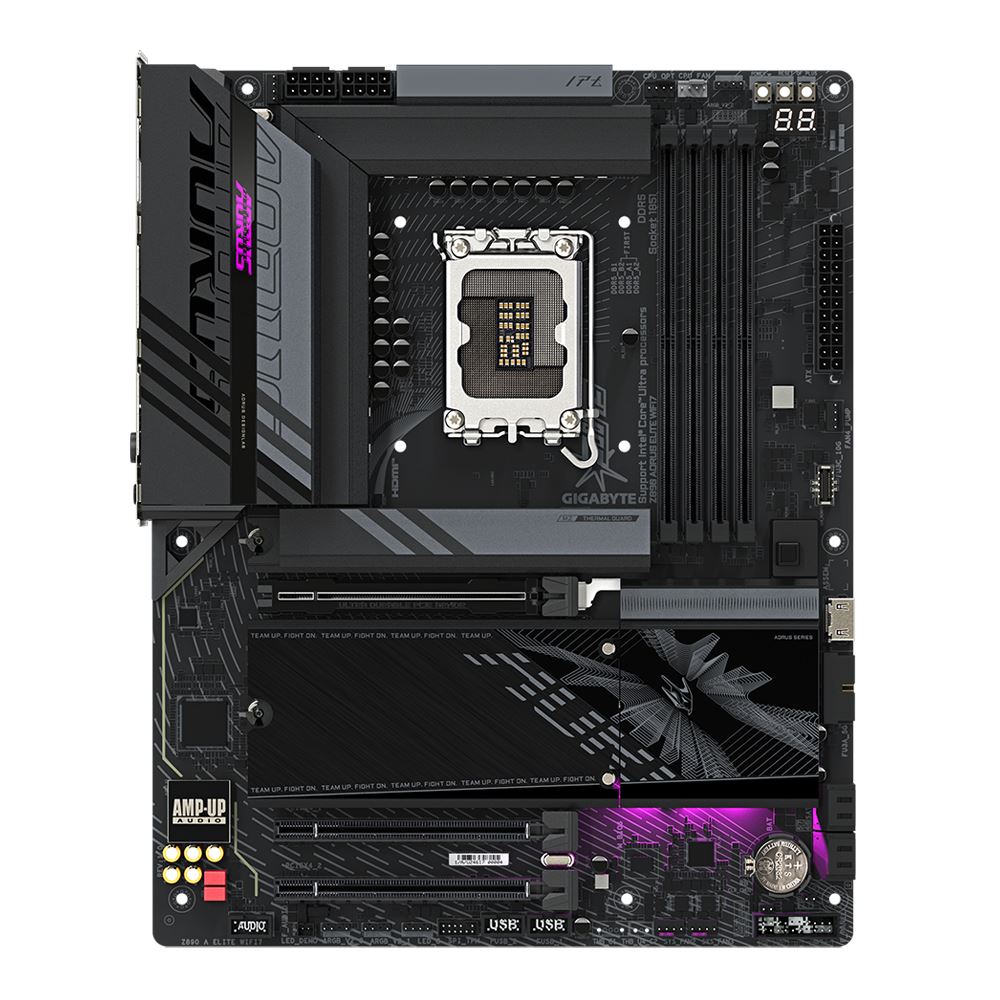

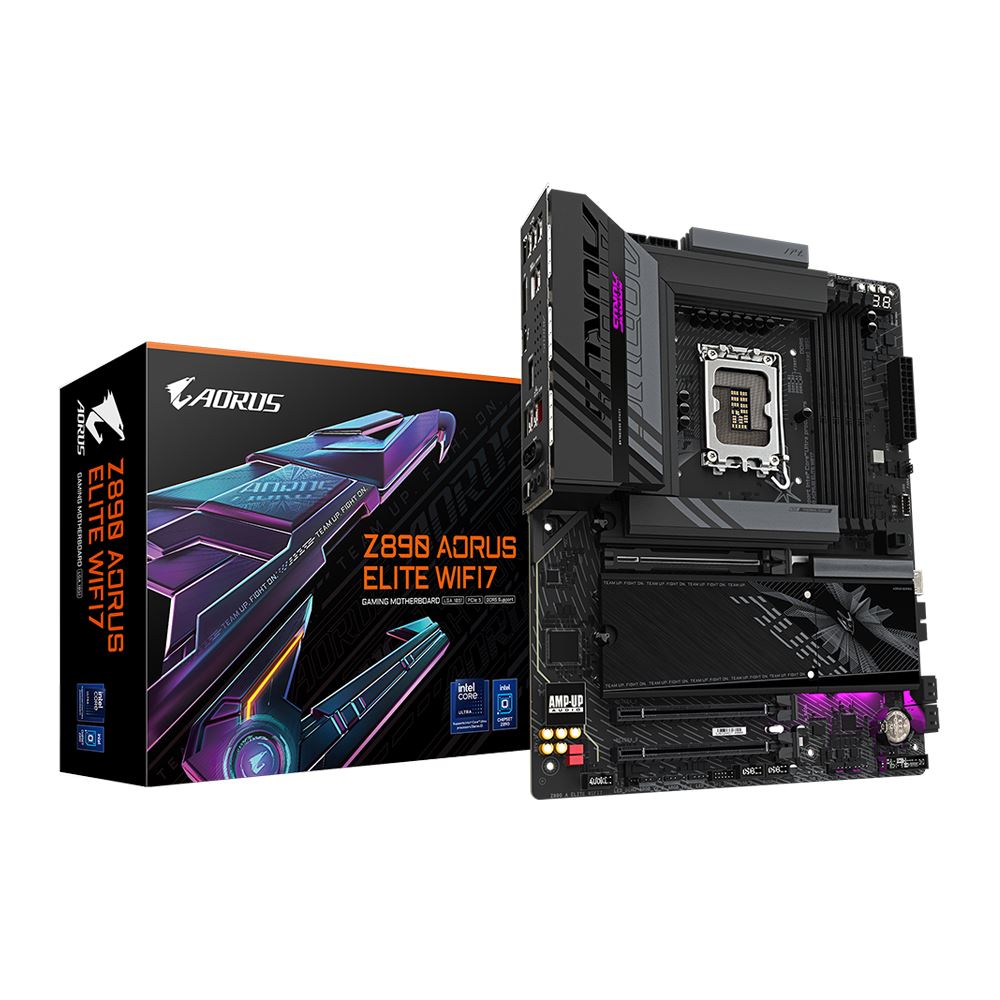

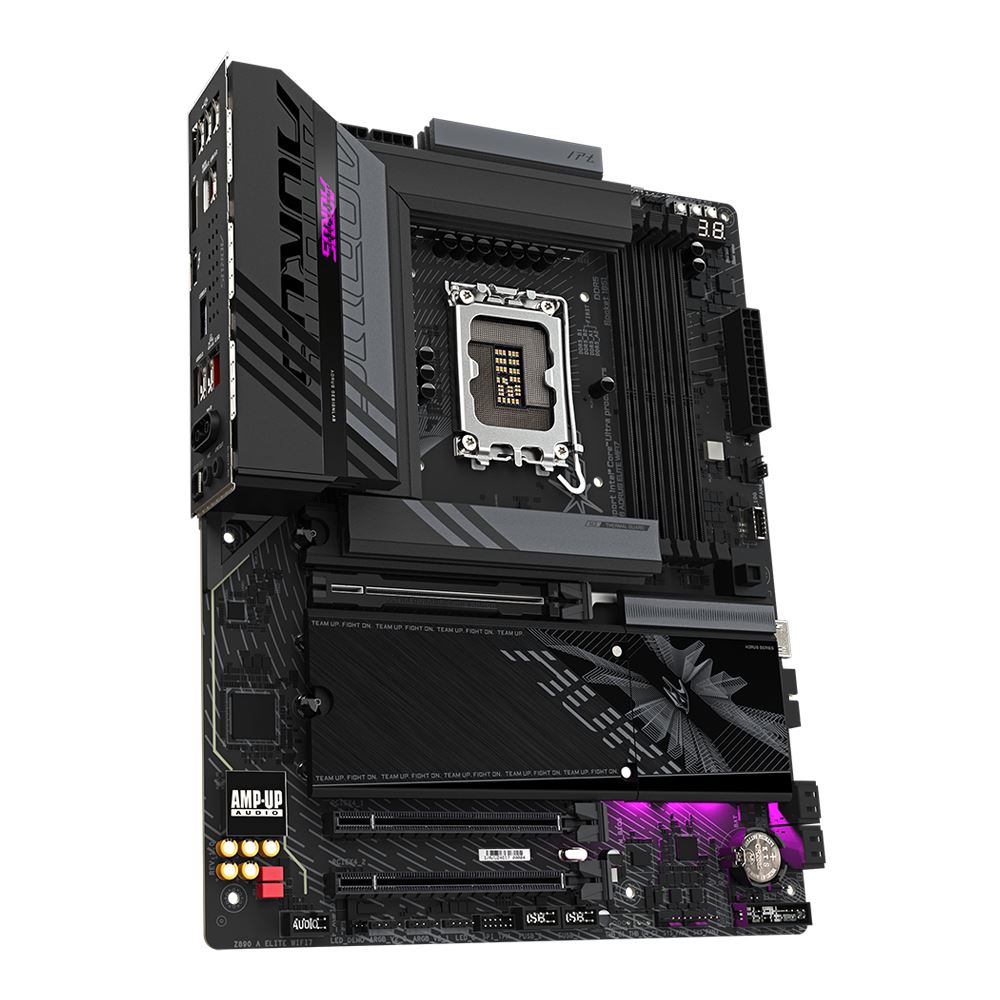

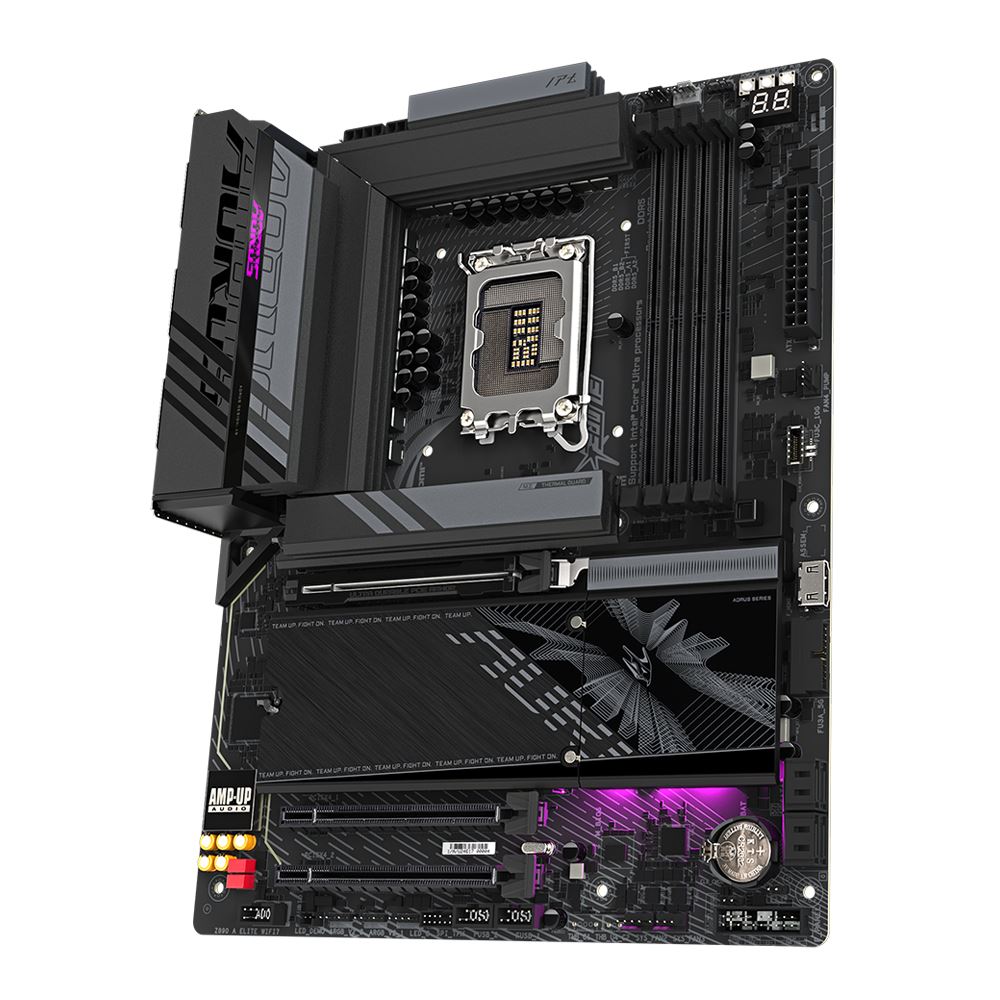

Gigabyte Z890 AORUS ELITE WIFI7 Intel LGA 1851 ATX Motherboard

COMPUTER BARGAIN CENTER

Gigabyte Z890 AORUS ELITE WIFI7 Intel LGA 1851 ATX Motherboard

(0)

$ 345.00

Product Information

SKU

768895

Mfr Part#

Z890AORELWF7

UPC

889523045121

General Specifications

Packaging

Retail

Chipset

Intel Z890

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

PnP 1.0a
WfM 2.0
SM BIOS 2.7
ACPI 5.0
DMI 2.7

CPU Support

Intel CPU Support

Core Ultra Processors

Socket Type

LGA 1851

Memory Specifications

ECC

Non-ECC; Non-Registered

Memory Type

DDR5-5600
DDR5-6400
DDR5-6200
DDR5-6000
DDR5-5800

Memory Speeds Supported

8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600 MHz

Memory Slots

4 x 288pin DIMM

Memory Channel Support

Dual Channel

Max Memory Supported

256GB

Maximum Memory Supported Per Slot

64GB

Video Specifications

Onboard Graphic Chipset

Requires CPU with Integrated Graphics

Storage Specifications

M.2 Port Type

2280
22110
25110
2580

SATA Express

4 x M.2 Socket 3
M Key

SATA 6Gb/s

RAID Support

RAID 0
RAID 1
RAID 5
RAID 10

Audio Specifications

Audio Chipset

Realtek ALC1220

Audio Channels

7.1

Networking

WiFi Support

Onboard WiFi

LAN Chipset

Realtek 2.5Gb Ethernet

LAN Speed

10/100/1000/2500Mbps

Wireless LAN Chipset

MediaTek Wi-Fi 7 MT7925

Wireless Technology

802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.4
WiFi 7 (802.11be)

Expansion Slots

PCI Express 4.0 x16

PCI Express 5.0 x16

Back Panel Ports

LAN Ports

1 x 10/100/1000/2500 RJ-45 LAN

Audio Ports

1 x 3.5 mm Microphone
1 x 3.5 mm Line-Out

USB 2.0

4 x USB 2.0 (Type-A)

USB 3.1

2 x USB 3.2 (Gen 2 Type-A)
3 x USB 3.2 (Gen 1 Type-A)

Video Connectors

1 x DisplayPort 2.1

Specialty Ports

2 x WiFi Antenna Ports

Thunderbolt Ports

1 x Thunderbolt 4

Digital Audio

1 x Optical

Internal I/O & Connectors

Headers

1 x CPU Fan Header
1 x Water Pump Header
3 x System Fan Header

USB

2 x USB 2.0 Headers (4 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
1 x USB 3.2 Gen 2 Type-C Header (1 Port)

Other I/O

3 x RGB LED connectors

Power

Power Connectors

1 x 24-pin ATX Connector
2 x 8-pin +12 V Connector

ATX Connector

24-pin ATX Power Connector

Physical Specifications

Depth

12.00 in. (305.00 mm)

Width

9.61 in. (244.00 mm)

Form Factor

ATX

Warranty

Parts

5 Years

Labor

5 Years

Package Contents

What's in the Box

Motherboard, Manual, Antenna, 2x SATA Cables, One G Connector

Low in stock

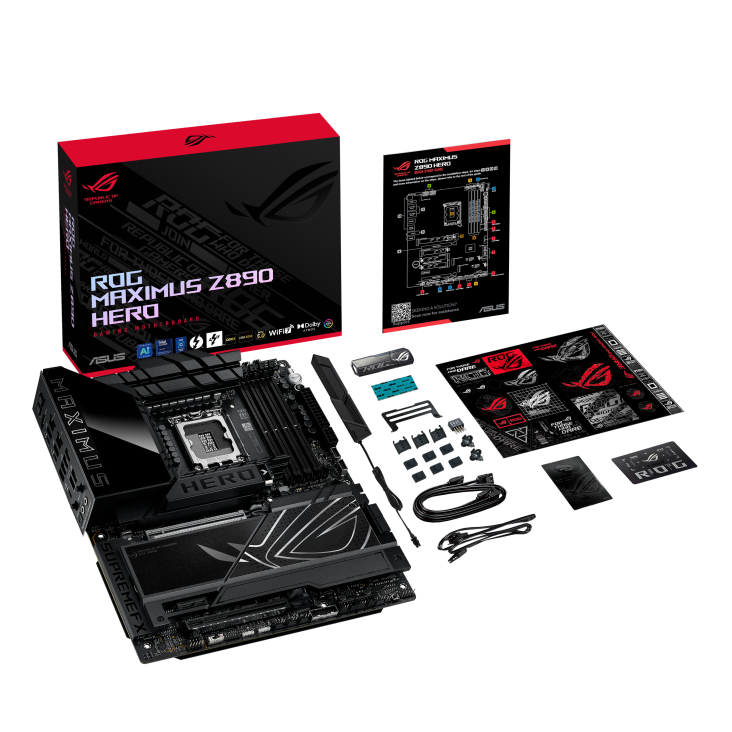

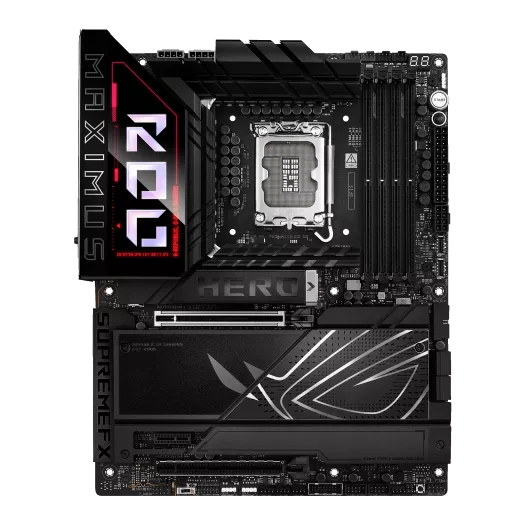

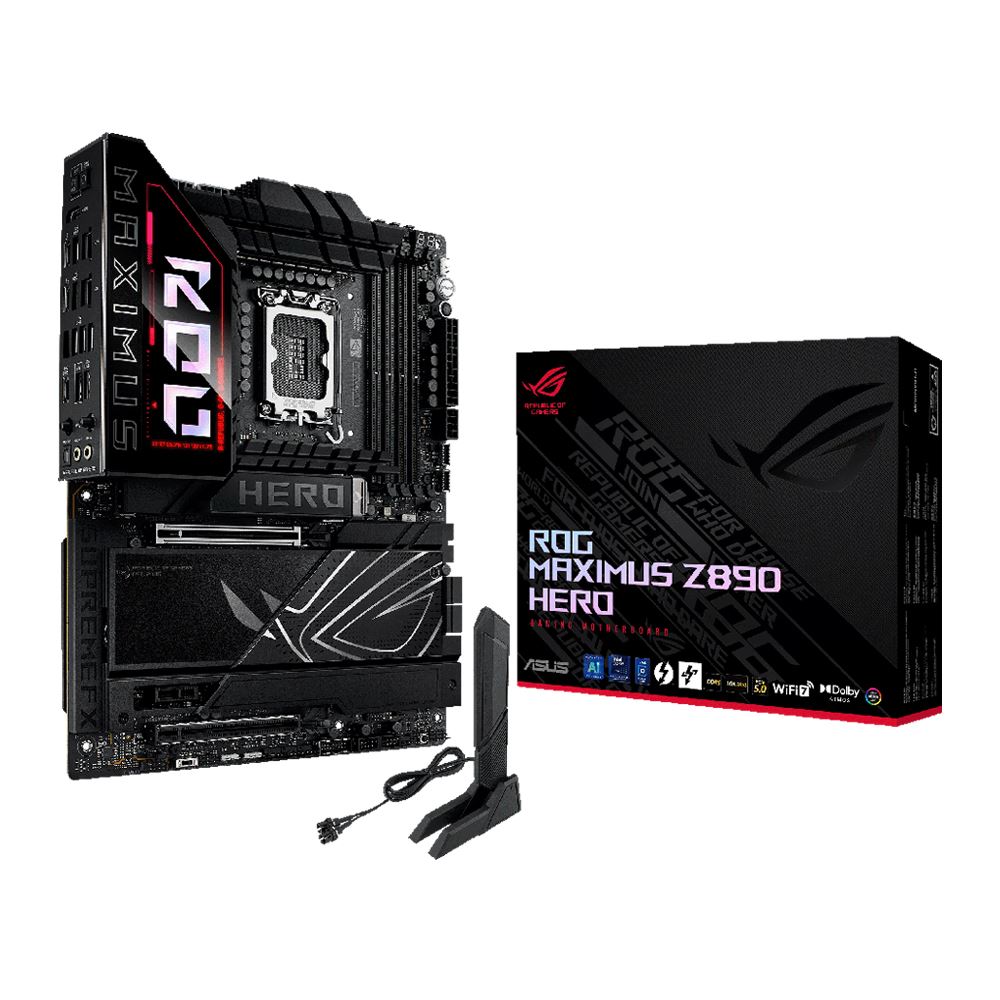

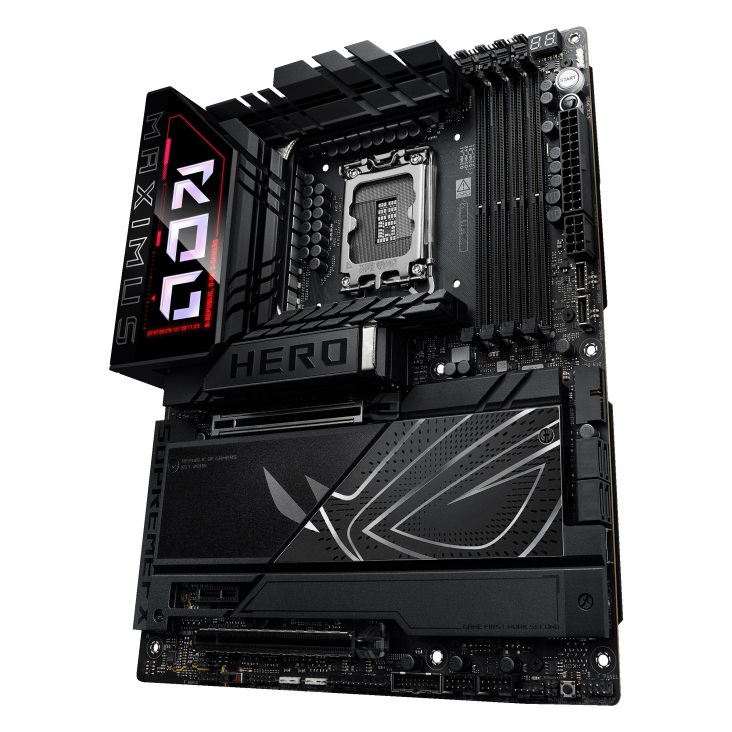

ASUS Z890 ROG MAXIMUS HERO Intel LGA 1851 ATX Motherboard

COMPUTER BARGAIN CENTER

ASUS Z890 ROG MAXIMUS HERO Intel LGA 1851 ATX Motherboard

(0)

$ 575.00

ROG MAXIMUS Z890 HERO

Intel^® Z890 LGA 1851 ATX motherboard, Advanced AI PC-ready, 22+1+2+2 power stages, NPU Boost, DDR5 slots with NitroPath DRAM Technology, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, three PCIe^® 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 PowerBoost, SlimSAS connector, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim and full support for next-gen graphics cards, two Thunderbolt™ 4 ports, USB 20Gbps Type-C^® front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting II

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel^® LGA 1851 Socket: Ready for Intel^® Core™ Ultra Processors (Series 2)
Exclusive AI Technologies: ASUS AI Advisor, AI Overclocking, AI Cooling II, and AI Networking II to simplify setup and improve performance
Advanced Overclocking & Memory Technologies: NPU Boost, NitroPath DRAM Technology, DIMM Fit, DIMM Flex and AEMP III
Robust Power Solution: 22(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
Optimized Thermal Design: Massive heatsinks integrated with the I/O cover, joined by a U-shaped heatpipe and connected to the power stages with high-conductivity thermal pads
Latest M.2 Support: Three PCIe^® 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 PowerBoost, all with substantial cooling solutions
Abundant Connectivity: Dual Thunderbolt™ 4 USB Type-C^® ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, USB 10Gbps Type-C front-panel connector, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot with full support for next-gen graphics cards, HDMI™ 2.1
High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Intel 2.5Gb Ethernet and Realtek 5Gb Ethernet
DIY-Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
Immersive Audio: ROG SupremeFX ALC4082 codec with ESS^® ES9219 Quad DAC for up to 32-Bit/384 kHz playback Unmatched Personalization: I/O cover with Polymo Lighting II, three Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
Renowned Software: ASUS DriverHub, Dolby Atmos^®, exclusive 1-year Internet Security subscription, TurboV Core, GlideX, HWiNFO, and bundled 1-year AIDA64 Extreme subscription

Low in stock

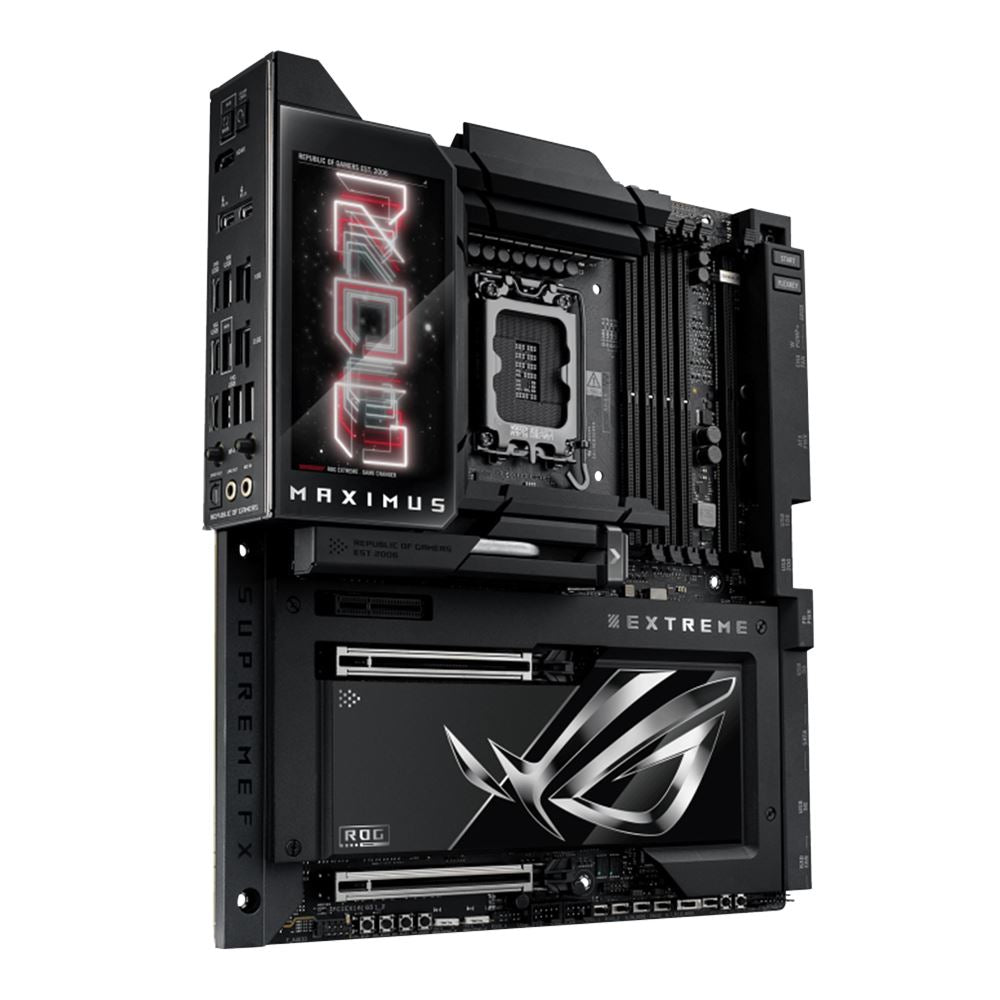

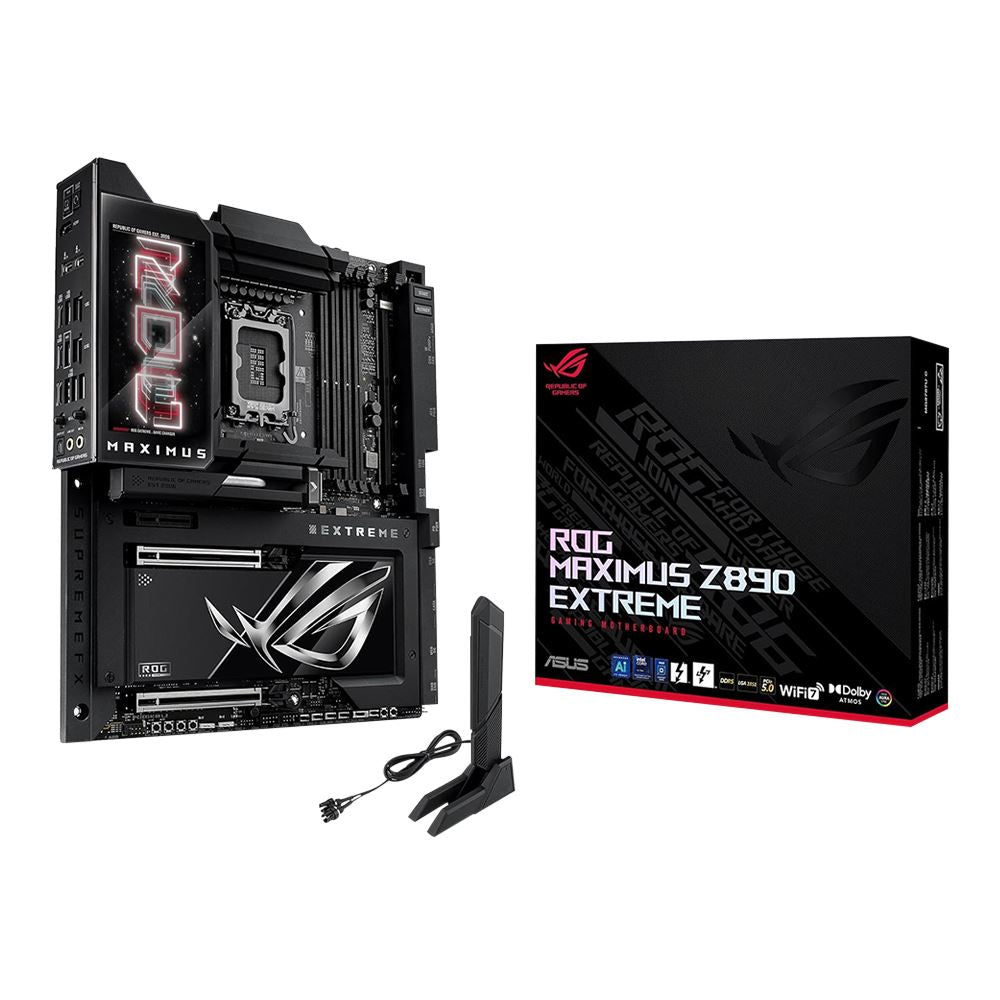

ASUS Z890 ROG MAXIMUS EXTREME Intel LGA 1851 ATX Motherboard

COMPUTER BARGAIN CENTER

ASUS Z890 ROG MAXIMUS EXTREME Intel LGA 1851 ATX Motherboard

(0)

$ 950.00

Z890 ROG MAXIMUS EXTREME Intel LGA 1851 ATX Motherboard

The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel Core Ultra Series 2 processors, DDR5 modules, PCIe 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt functionality and more all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.

Product Information

SKU

933747

Mfr Part#

MAXZ890EXTREME

UPC

199291119277

General Specifications

Packaging

Retail

Chipset

Intel Z890

BIOS

2 x 256Mb UEFI AMI BIOS Flash ROM

Manageability

WOL

CPU Support

Socket Type

LGA 1851

Memory Specifications

ECC

Non-ECC; Non-Registered

Memory Type

DDR5-4800
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5000
DDR5-6400
DDR5-6200
DDR5-6000
DDR5-5800

Memory Speeds Supported

9200+ (OC) MHz

Memory Slots

4 x 288pin DIMM

Memory Channel Support

Dual Channel

Max Memory Supported

192GB

Maximum Memory Supported Per Slot

48GB

Video Specifications

Onboard Graphic Chipset

Requires CPU with Integrated Graphics

Storage Specifications

M.2 Port Type

2242
2260
2280
2230
22110

SATA Express

6 x M.2 Socket 3
M Key

SATA 6Gb/s

RAID Support

RAID 0
RAID 1
RAID 5
RAID 10

Audio Specifications

Audio Chipset

ROG SupremeFX ALC4082

Audio Channels

7.1

Networking

WiFi Support

Onboard WiFi

LAN Chipset

Marvell AQtion 10Gb Ethernet

LAN 2 Chipset

Intel 2.5Gb Ethernet

LAN Speed

100/1000/2500/5000/10000Mbps

Wireless Technology

802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.4
WiFi 7 (802.11be)
WiFi 6E (802.11ax)

Expansion Slots

PCI Express 5.0 x16

Back Panel Ports

LAN Ports

1 x 10/100/1000/2500 RJ-45 LAN
1 x 100/1000/2500/5000/10000Mbps

Audio Ports

1 x 3.5 mm Microphone
1 x 3.5 mm Line-Out

USB 3.1

1 x USB 3.2 (Gen 2x2 Type-C)
5 x USB 3.2 (Gen 2 Type-A)
2 x USB 3.2 (Gen 2 Type-C)

Video Connectors

1 x HDMI 2.1

Specialty Ports

2 x WiFi Antenna Ports

Thunderbolt Ports

2 x Thunderbolt 5

Digital Audio

1 x Optical

Internal I/O & Connectors

Headers

4 x System Fan Header
1 x Water Pump Header
2 x CPU Fan Header

USB

2 x USB 2.0 Headers (4 Ports)
2 x USB 3.2 Gen 1 Type-A Headers (4 Ports)
1 x USB 3.2 Gen 2 Type-C Header (1 Port)
1 x USB 3.2 Gen 2x2 Type-C Header (1 Port)

Other I/O

2 x Addressable LED Headers

Power

Power Connectors

1 x 24-pin ATX Connector
2 x 8-pin +12 V Connector
1 x 8-pin PCIe Power Connector

ATX Connector

24-pin ATX Power Connector

Physical Specifications

Depth

12.00 in. (305.00 mm)

Width

10.90 in. (276.70 mm)

Form Factor

eATX

Warranty

Parts

3 Years

Labor

3 Years

Package Contents

What's in the Box

Motherboard, 1-to-3 ARGB splitter cable, 1-to-2 ARGB splitter cable, 2x 1-to-4 fan splitter cable, 2x ROG weave SATA 6G cable packages, 3-in-1 Thermistor cables pack, ROG Q-DIMM.2 with heatsink, M.2 pad package for ROG Q-DIMM.2, 2x Thermal pad for ROG Q-DIMM.2, 2x Thermal pad for M.2 22110, DDR5 Fan holder, ASUS WiFi Q-Antenna, Q-connector, ROG logo plate sticker, ROG screwdriver, ROG stickers, ROG VIP card, 2x M.2 Q-Slide packages, 6x M.2 backplate rubber packages, ROG Bottle Opener, USB drive with utilities and drivers, Quick start guide

Low in stock

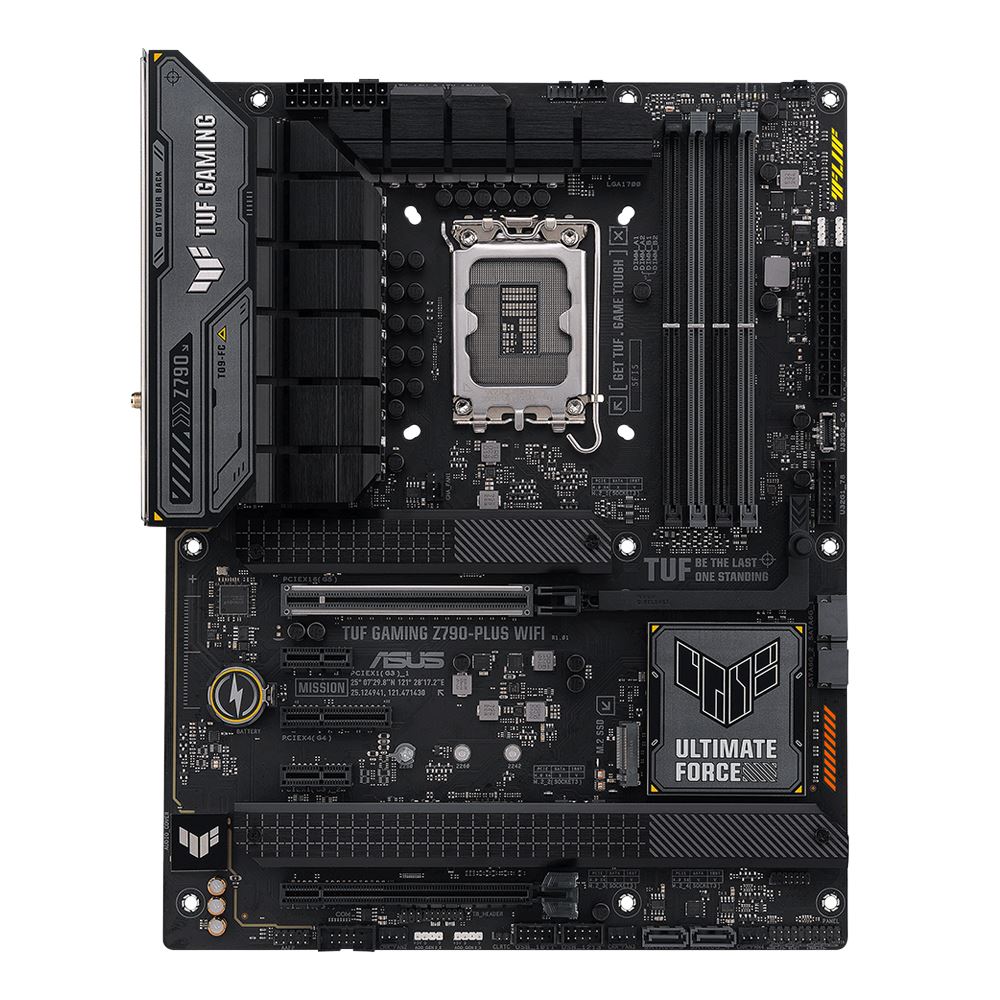

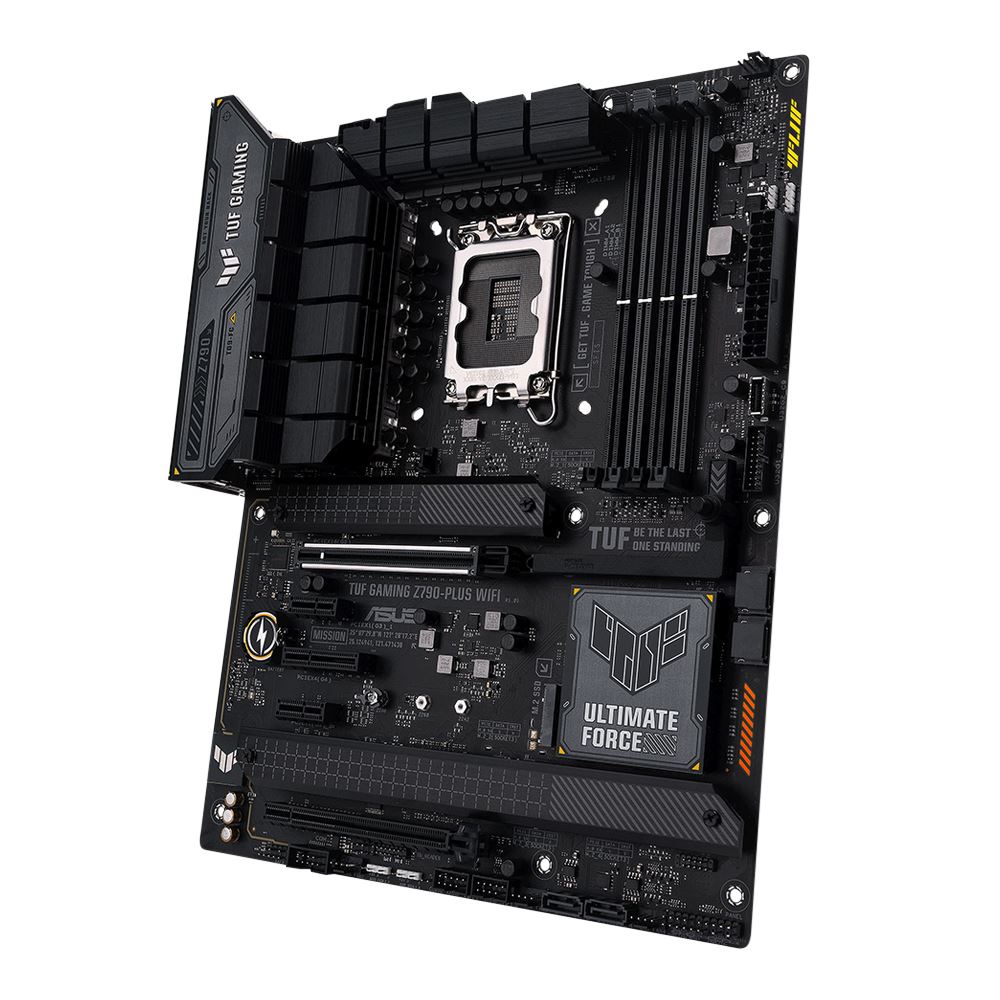

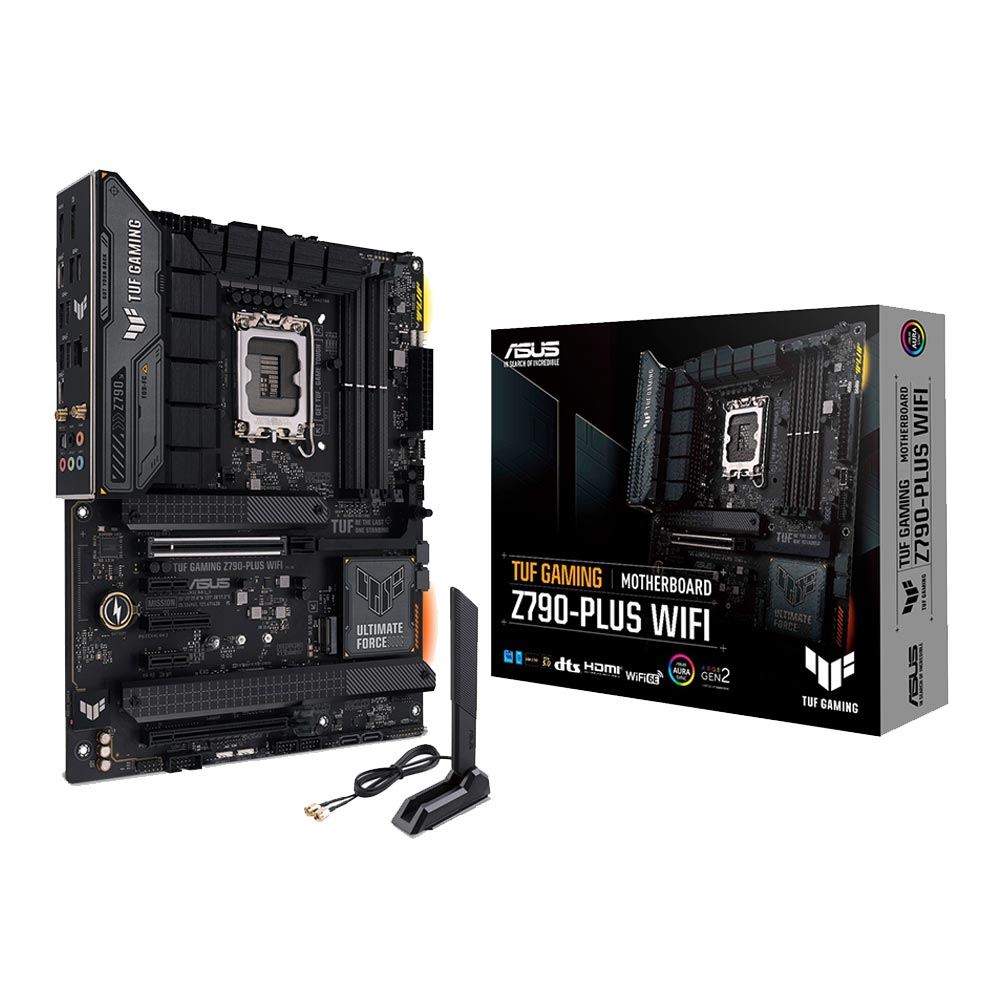

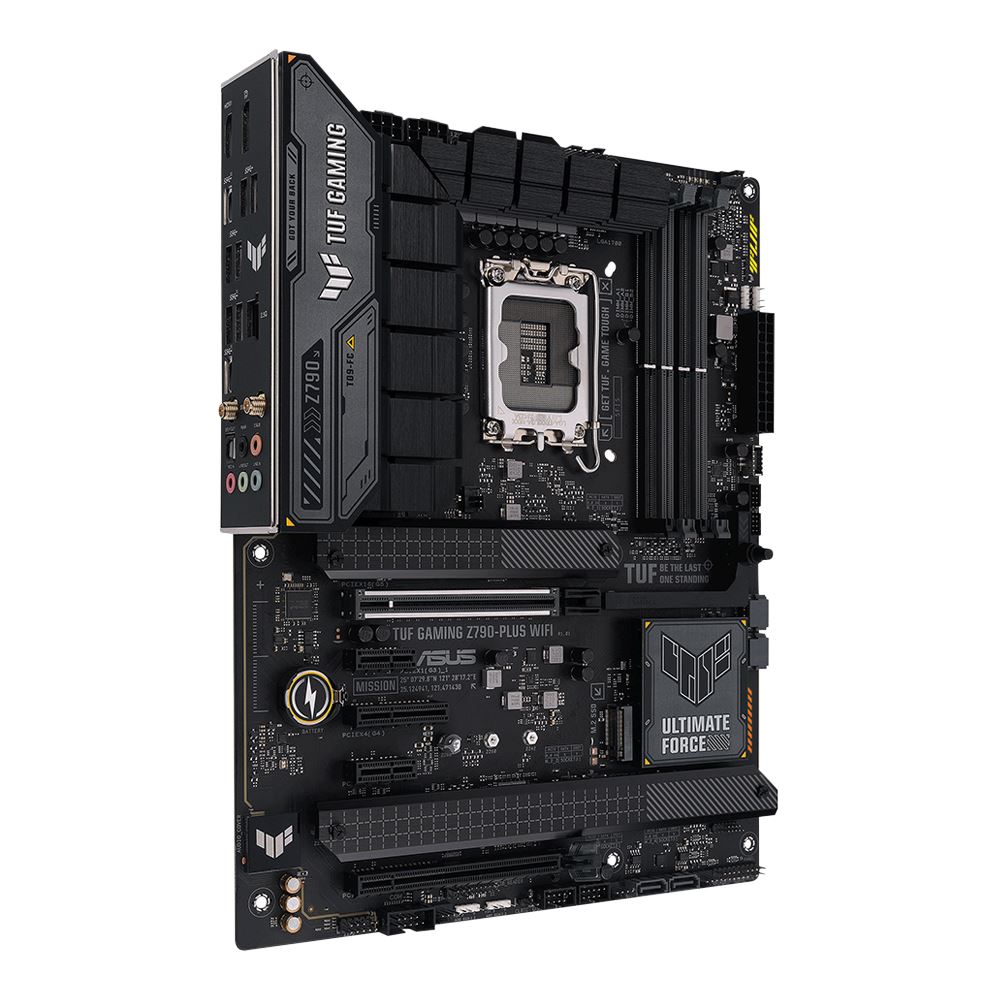

ASUS Z790-Plus TUF Gaming WiFi D5 Intel LGA 1700 ATX Motherboard

COMPUTER BARGAIN CENTER

ASUS Z790-Plus TUF Gaming WiFi D5 Intel LGA 1700 ATX Motherboard

(0)

$ 349.00

Key Features

Intel Z790
Intel LGA 1700 Processors
128GB Dual Channel 4 x 288pin DIMM Support

Z790-Plus TUF Gaming WiFi D5 Intel LGA 1700 ATX Motherboard

TUF GAMING Z790-PLUS WIFI D4 takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and honeycomb design elements to reflect the dependability and stability that defines the TUF GAMING series.

Product Information

SKU

536334

Mfr Part#

TUFZ790PLUSWF

UPC

197105014503

General Specifications

Packaging

Retail

Chipset

Intel Z790

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL
PXE

CPU Support

Intel CPU Support

Core i7
Core i5
Core i3
Celeron
Pentium
Core i9

Socket Type

LGA 1700

Memory Specifications

ECC

Non-ECC; Non-Registered

Memory Type

DDR5-4800
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5000

Memory Speeds Supported

7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800

Memory Slots

4 x 288pin DIMM

Memory Channel Support

Dual Channel

Max Memory Supported

128GB

Maximum Memory Supported Per Slot

32GB

Supported Memory Technologies

Non-ECC Memory Supported

Video Specifications

Onboard Graphic Chipset

Requires CPU with Integrated Graphics

Storage Specifications

M.2 Port Type

2242
2260
2280
22110

SATA Express

4 x M.2 Socket 3
M Key

SATA 6Gb/s

RAID Support

RAID 0
RAID 1
RAID 5
RAID 10

Audio Specifications

Audio Chipset

Realtek S1220A

Audio Channels

7.1

Networking

WiFi Support

Onboard WiFi

LAN Chipset

Intel 2.5Gb Ethernet

LAN Speed

10/100/1000/2500Mbps

Wireless LAN Chipset

Intel 2x2 Wi-Fi 6

Wireless Technology

802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.2

Expansion Slots

PCI Express 4.0 x16

PCI Express 5.0 x16

PCI Express x1

Back Panel Ports

LAN Ports

1 x 10/100/1000/2500 RJ-45 LAN

Audio Ports

1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Rear Speaker
1 x 3.5 mm Subwoofer
1 x 3.5 mm Line-Out

USB 3.1

4 x USB 3.2 (Gen 1 Type-A)
1 x USB 3.2 (Gen 2 Type-C)
1 x USB 3.2 (Gen 2x2 Type-C)
2 x USB 3.2 (Gen 2 Type-A)

Video Connectors

1 x HDMI 2.1
1 x DisplayPort 1.4

Specialty Ports

2 x WiFi Antenna Ports

Digital Audio

1 x Optical

Internal I/O & Connectors

Headers

4 x System Fan Header
1 x Water Pump Header
2 x CPU Fan Header

USB

2 x USB 2.0 Headers (4 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
1 x USB 3.2 Gen 2 Type-C Header (1 Port)

Power

Power Connectors

1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector
1 x 4-pin +12 V Connector

ATX Connector

24-pin ATX Power Connector

Physical Specifications

Depth

12.00 in. (305.00 mm)

Width

9.60 in. (243.84 mm)

Form Factor

ATX

Warranty

Parts

3 Years

Labor

3 Years

Package Contents

What's in the Box

Motherboard, 2x SATA Cables, Antenna, TUF Gaming Stickers, M.2 Rubber Packages, M.2 Screws, Manual

Low in stock

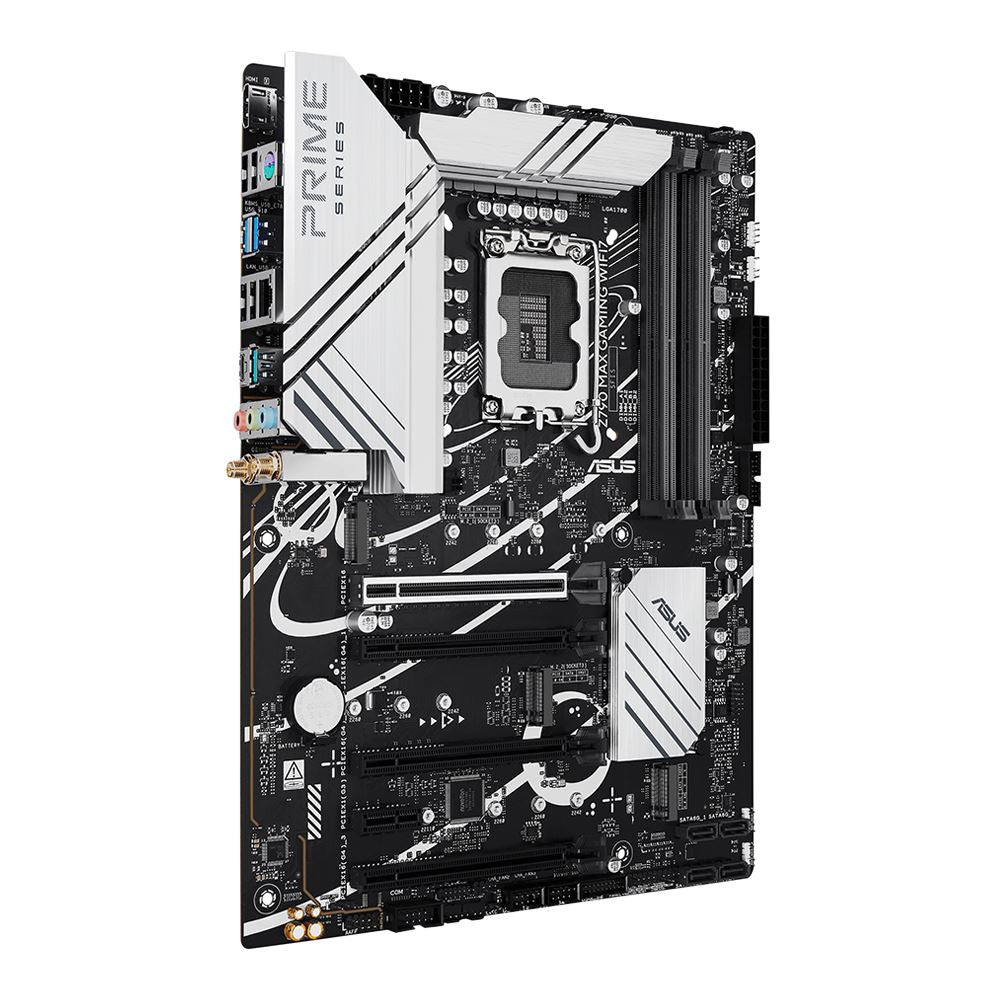

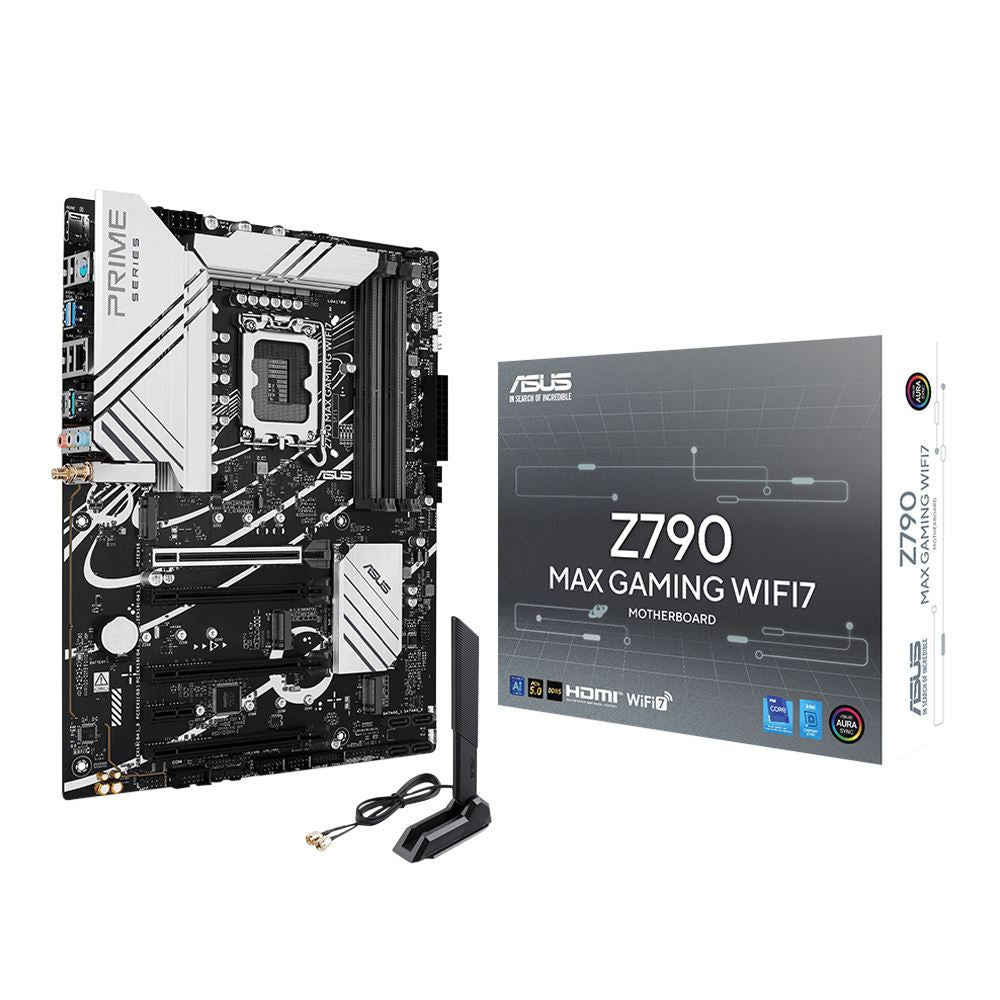

ASUS Z790 MAX GAMING WIFI7 Intel LGA 1700 ATX Motherboard

COMPUTER BARGAIN CENTER

ASUS Z790 MAX GAMING WIFI7 Intel LGA 1700 ATX Motherboard

(0)

$ 299.00

Z790 MAX GAMING WIFI7 Intel LGA 1700 ATX Motherboard

ASUS motherboards are expertly engineered to unleash the full potential of 14th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Z790 MAX GAMING WIFI7 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

Product Information

SKU

908194

Mfr Part#

Z790MAXGMWIFI7

UPC

199291061354

General Specifications

Packaging

Retail

Chipset

Intel Z790

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL
PXE

CPU Support

Intel CPU Support

Core i7
Core i5
Core i3
Celeron
Pentium
Core i9

Socket Type

LGA 1700

Memory Specifications

ECC

Non-ECC; Non-Registered

Memory Type

DDR5-4800
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5000

Memory Speeds Supported

7200 (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz

Memory Slots

4 x 288pin DIMM

Memory Channel Support

Dual Channel

Max Memory Supported

192GB

Maximum Memory Supported Per Slot

48GB

Video Specifications

Onboard Graphic Chipset

Requires CPU with Integrated Graphics

Storage Specifications

M.2 Port Type

2242
2260
2280
22110

SATA Express

3 x M.2 Socket 3
M Key

SATA 6Gb/s

RAID Support

RAID 0
RAID 1
RAID 5
RAID 10

Audio Specifications

Audio Channels

7.1

Networking

WiFi Support

Onboard WiFi

LAN Chipset

Realtek 1Gb Ethernet

LAN Speed

10/100/1000Mbps

Wireless Technology

802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.4
WiFi 7 (802.11be)
WiFi 6E (802.11ax)

Expansion Slots

PCI Express 4.0 x16

PCI Express 5.0 x16

PCI Express x1

Back Panel Ports

Legacy Ports

1 x PS/2

LAN Ports

1 x 10/100/1000 RJ-45 LAN

Audio Ports

1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Line-Out

USB 2.0

4 x USB 2.0 (Type-A)

USB 3.1

1 x USB 3.2 (Gen 2x2 Type-C)
1 x USB 3.2 (Gen 2 Type-A)
2 x USB 3.2 (Gen 1 Type-A)

Video Connectors

1 x HDMI 2.1

Specialty Ports

2 x WiFi Antenna Ports

Internal I/O & Connectors

Headers

1 x Water Pump Header
3 x System Fan Header
2 x CPU Fan Header

USB

2 x USB 2.0 Headers (4 Ports)
2 x USB 3.2 Gen 1 Type-A Headers (4 Ports)
1 x USB 3.2 Gen 1 Type-C Header (1 Port)

Other I/O

3 x Addressable LED Headers

Power

Power Connectors

1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector
1 x 4-pin +12 V Connector

ATX Connector

24-pin ATX Power Connector

Physical Specifications

Depth

12.00 in. (304.80 mm)

Width

9.61 in. (244.00 mm)

Form Factor

ATX

Warranty

Parts

3 Years Limited

Labor

3 Years Limited

Package Contents

What's in the Box

Motherboard, 2x SATA Cables, Antenna, I/O Shield, M.2 Screws

Low in stock

Product Comparison

Collection description

Explore Related Collections

Collection description
